ALINCO DX-R8 Communications Receiver

Outstanding high performance communications receiver!

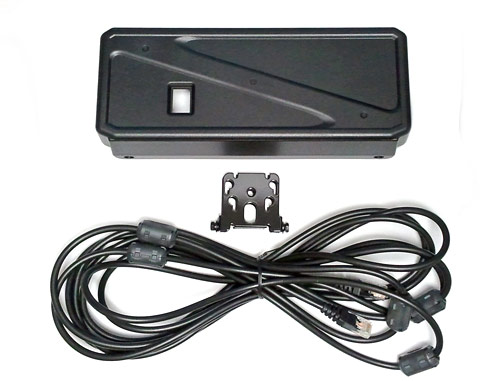

Remote operation requires the optional EDS-17 remote kit.

 DX-R8 communications receiver!

DX-R8...$1199 AUD

Limited stock!

ONE-YEAR ALINCO WARRANTY!

Free freight Australia-wide!

Learn More

• General coverage receive from 150KHz to 35MHz in all modes!
• Receives in SSB, CW, AM and FMN modes
• Dual VFO operation
• Remoteable front panel!
  (EDS-17 cable option required)
• Large easy-to-read alphanumeric display
• Direct frequency entry via the front panel keypad
• SDR - Software Defined Radio! Free software required for SDR mode operation
• IF Shift, RIT, noise blanker and narrow filtering features
• Enhanced scanning modes
• Front panel selectable normal bandwidths; SSB/CW 2.4kHz wide, FM/AM 6kHz wide
• Front panel selectable narrow bandwidths; SSB 1.0kHz, CW 500Hz (A.F.), AM(N) 2.4kHz
• Frequency stability; +/- 1ppm
• RF attenuator and receive preamplifier
• 600 memories in 3 banks
• Front facing speaker
• Dimensions; 240w x 94h x 255d (mm). Weight; 4.1kg
• Audio output; 2W @ 10% THD
• Note; VFO tunes down to
  30kHz, but performance is not guaranteed from 30kHz-150kHz
• Includes Vanson SMP-1000A AC/DC 1A approved plug-pack power supply with DC cable/plug and also an Alinco EDC-37 DC cable/plug
• Options are at extra cost
• Some option parts may not be available
• Options;  EDC-36 mobile DC cable, EDC-37 DC cable, EDS-17 separation kit (inc. EBC-8 & 5m long front panel control cable but
  not main body mounting bracket/kit), and ERW-7 programming cable

NEW MODEL!

ALINCO DR-MD520...A$799

PLENTY IN STOCK!

DMR/FM 55W/40W dual-band
2m/70cm mobile transceiver
...with GPS & APRS support!

ONE-YEAR ALINCO WARRANTY!

Free freight Australia-wide!

Learn More

Outstanding features include:

• DR-MD520 has DMR Tier 1 & Tier II plus analogue FM modes
• 55W RF output on 2m band (144~148MHz)
• 40W RF output on 70cm band (430~450MHz)
• GPS receive built-in. Automatic GPS date & time calibration
• 4,000 channels, 250 zones, 250 scan lists
• 10,000 talk groups, 250 Radio ID & 300,000 Digital contacts list
• Large 1.77"/45mm full-colour LCD displays DMR ID, callsign, name
  and geographical information
• Preset digital encryption codes
• Automatic repeater roaming feature
• Automatic Analogue and Digital mode switching
• Easy import of DMR contact database (world-wide)
• Commercial radio cross-modulation, intermodulation and strong
  signal handling receive performance!
• Multiple wideband receive frequency ranges; 76~108MHz, 136MHz~174MHz (FMN mode) and 400~480MHz (FMN mode)
• Outstanding receive sensitivity
• FM Broadcast receive with 100 memory channels & VFO
• Automatic date & time calibration by GPS
• Manually programmable Side and Hot keys
• Four RF power output levels;
  55W/25W/10W/1W in the 2m band and
  40W/25W/10W/1W in the 70cm band
• Programmable auto repeater shift in VFO mode
• Includes illuminated EMS-88 DTMF handmic with mic hanger
• DR-MD520 also includes; ADFM78 MMB (mobile mounting bracket)

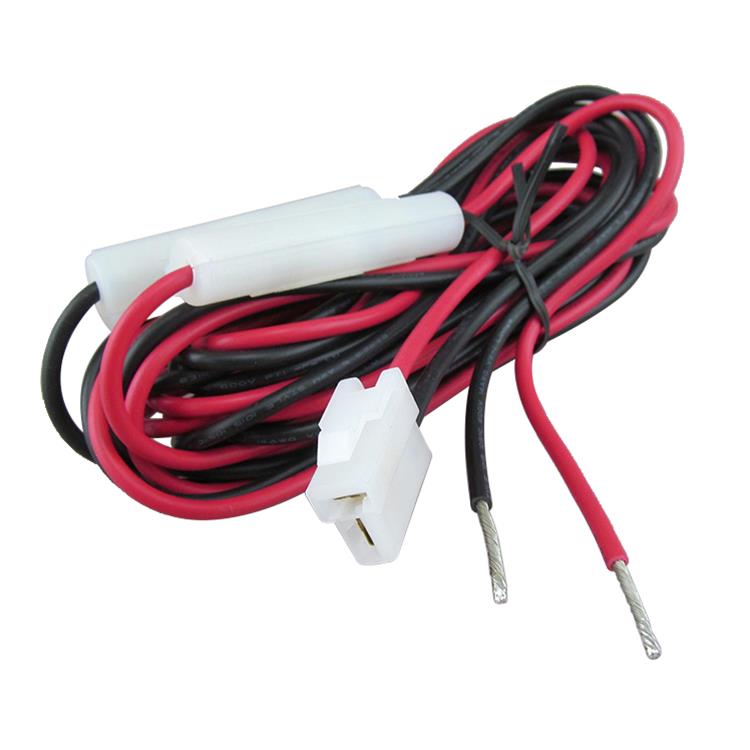

  with mounting screws, etc., ADUA38 DC plug and lead assembly,
  ERW-21 PC interface cable assembly, two spare 15A fuses and
  printed operating manual
• Signalling; CTCSS/DCS/DTMF/2-tone/5-tone encode and decode!
• CTCSS tone and DCS scan
• Recording time; 4 hours!
• Channel spacings; Analogue: 12.5/25kHz, Digital: 12.5kHz
• Audio output; 2W
• Audio distortion; <5%
• Requires 13.8Vdc @ approx. 12A max.
• Dimensions; 141w x 40h x 188d mm
• Weight; 1.04kg.
• Information above is subject to confirmation and updating!
• Options are at extra cost
• Options will be listed soon...
• Some option parts may not initially be available

NEW LOW PRICE!

ALINCO DR-MD500...A$599
(was A$699)

Plenty in stock!

DMR/FM 55W/40W dual-band
2m/70cm mobile transceiver!

ONE-YEAR ALINCO WARRANTY!

Free freight Australia-wide!

Learn More

Outstanding features include:

• DR-MD500 has DMR Tier 1 & Tier II plus analogue FM modes
• 55W RF output on 2m band (144~148MHz)
• 40W RF output on 70cm band (430~450MHz)
• 4,000 channels, 250 zones, 250 scan lists
• 10,000 talk groups, 250 Radio ID & 300,000 Digital contacts list
• Large 1.77"/45mm full-colour LCD displays DMR ID, callsign, name
  and geographical information
• Preset digital encryption codes
• Automatic repeater roaming feature
• Automatic Analogue and Digital mode switching
• Easy import of DMR contact database (world-wide)
• Commercial radio cross-modulation, intermodulation and strong
  signal handling receive performance!
• Multiple wideband receive frequency ranges; 76~108MHz, 136MHz~174MHz (FMN mode) and 400~480MHz (FMN mode)
• Outstanding receive sensitivity
• FM Broadcast receive with 100 memory channels & VFO
• Automatic date & time calibration by GPS
• Manually programmable Side and Hot keys
• Four RF power output levels;
  55/25/10/1W on the 2m band and
  40/25/10/1W on the 70cm band
• Programmable auto repeater shift in VFO mode
• Includes illuminated EMS-88 DTMF handmic with mic hanger
• DR-MD500 also includes; ADFM78 MMB (mobile mounting bracket)
  with mounting screws, etc., ADUA38 DC plug and lead assembly,
  ERW-21 PC interface cable assembly, two spare 15A fuses and
  printed operating manual
• Signalling; CTCSS/DCS/DTMF/2-tone/5-tone encode and decode!
• CTCSS tone and DCS scan
• Recording time; 4 hours!
• Channel spacings; Analogue: 12.5/25kHz, Digital: 12.5kHz
• Audio output; 2W
• Audio distortion; <5%
• Requires 13.8Vdc @ approx. 12A max.
• Dimensions; 141w x 40h x 188d mm
• Weight; 1.04kg.
• Information above is subject to confirmation!
• Options are at extra cost
• Options will be listed soon...
• Some option parts may not initially be available

DR-735T...$699 AUD

 Limited stock!

ONE-YEAR ALINCO WARRANTY!

Free freight Australia-wide!

Learn More

ALL-NEW TWIN-BAND 2m/70cm 50/50W remoteable  transceiver
boasts full cross-band duplex, cross-band repeater, dual in-band receive, wideband receive, huge multi-colour LCD display, etc...

Outstanding features include:

• 50W RF output on 2m band (144~148MHz)
• 50W RF output on 70cm band (430~450MHz)
• VHF/UHF full-duplex operation
• Cross-band repeater operation
• Commercial radio cross-modulation, intermodulation and strong
  signal handling receive performance!
• Dual V/U and U/V receive
• Dual in-band V/V and U/U receive, too!
• Multiple wideband receive frequency ranges 108~136MHz (AM Airband), 136~174MHz
  and 400~480MHz in FMN mode
• Outstanding receive sensitivity
• 1000 programmable mem. chs.
• Three RF power output levels;
  50/20/5W on the 2m band and
  50/20/5W on the 70cm band
• Huge alphanumeric LCD display w/selectable backlight colours
• Independent volume, squelch and VFO tuning for each band
• Many scanning modes
• Removable control head can
  be remotely mounted
• Included illuminated EMS-79 DTMF handmic allows direct frequency keypad entry and remote control operation!
• CTCSS & DCS encode
• CTCSS tone and DCS scan
• Programmable VFO and Memory scanning modes
• Channel steps;
  5, 6.25, 8.33, 10, 12.5, 15, 20, 25, 30, 50 and 100kHz
• Requires 13.8Vdc @ 12A max.
• Front panel; 140w x 60h mm
• Main body; 140w x 40h x 188d
• Weighs about 1.3kg.
• Info. subject to confirmation!
• Options are at extra cost

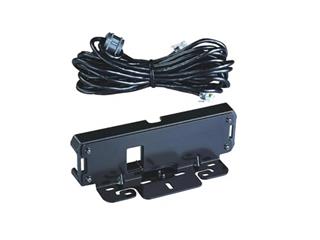

• Options; EDS-8 RJ-45 plug to round 8-pin mic socket lead, EDS-30 remote separation kit (5m lead) and EJ-47U digital voice module.
• Some option parts may not be available
• "Twinband" transceivers allow simultaneous and independent operation on two bands at any time, e.g. receiving on one band whilst transmitting on the other band is possible. "Dualband" transceivers allow transmit or receive operation on only one band at any time
• Compare to all competing twinband mobile transceivers!!

DR-03T

Alinco 10m FM mobile!

10m 10W mobile FM transceiver

Now $399 AUD

In stock!

ONE-YEAR WARRANTY!

Free freight Australia-wide!

Learn More

• Tx/rx; 28~29.7MHz (10m band)
• Same key operations as DR-135/435 series mobile radios
• 10W/5W/1~4W selectable RF power output levels
• 100 memory channels

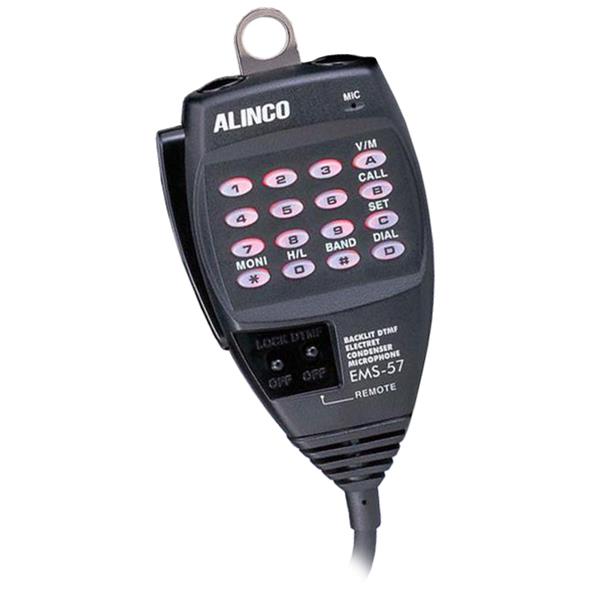

• Includes EMS-57 back-lit
  DTMF handmic
• Front panel data port
• Rear panel DB9 serial computer connection
• CTCSS, DCS encode and decode, DTMF encode and tone-burst are all included
• Super-wide 7-character alphanumeric display
• Ten auto-dial memories
• Theft alarm feature
• Requires 13.8Vdc @ 9A max.
• Options are at extra cost
• Options; EJ-41U TNC board, EMS-14 desk mic
• Some option parts may not be available

New DR-06TA

Alinco 6m FM mobile!

6m 50W mobile FM transceiver

Now $449 AUD

In stock!

ONE-YEAR WARRANTY!

Free freight Australia-wide!

Learn More

• Tx/rx; 50~54MHz (6m band)
• Same key operations as DR-135-435 series mobile radios
• 50 watts; H(50W)/M(20W)/L(5W) selectable power levels
• 100 memory channels
• Includes EMS-57 back-lit
  DTMF handmic
• Front panel data port
• Rear panel DB9 serial
  computer connection
• CTCSS, DCS encode and decode, DTMF encode and tone-burst are all included
• Super-wide 7-character alphanumeric display
• Wide and narrow FM modes
• Theft alarm feature
• Socket NOT fitted for EJ-41U TNC board as this board is no longer available from Alinco
• Requires 13.8Vdc @ 9A max.
• Some option parts may not be available

Now with BONUS EBP-88
Li-ion battery!!

DJ-MD5EG (G=GPS)...A$349
(was A$399)

Plenty in stock!

Yes, you get 2 x EBP-88s...

Free freight Australia-wide!

ONE-YEAR WARRANTY!

Learn More

DIGITAL DMR/FM 2m/70cm amateur 5W
transceiver with colour display and GPS!

Yes, you can get on DMR (Digital Mobile radio) and analog modes for less than the price of some analog-only dual-band handheld transceivers!!

Features include:

• Analogue FM...and Digital DMR Tier I & Tier II
• Transmits 144~148MHz (2m band) and 430~450MHz (70cm band)
• Receives 136~174MHz, 400~480MHz & 76~108MHz. 1W audio o/p
• FM Broadcast band receive with 100 memory channels and VFO
• Selectable 5W, 2.5W, 1W & 0.2W RF output on 2m & 70cm
• Displays DMR ID, callsign, name and geographical info
• Programmable up to 4,000ch., 250 zones w/250ch. per zone
• GPS receiver inbuilt
• Real 2-slot DMR operation!
• Frequency stability +/-2.5ppm
• Digital channel spacing of 12.5kHz
• DMR Tier II 2-slot TDMA technology
• Digital recorder records up to 14 hours
• Analog channel spacing of 12.5kHz or 25kHz
• Programmable auto repeater shift in VFO mode
• Mixed mode operation. Includes VOX operation
• Dot matrix highly-visible full-colour 45mm backlit LCD
• Uses DVSI's AMB+2 vocoder for clear 1W audio output
• Text messaging with 100 pre-programmable text messages
• CTCSS (analogue only), DCS, DTMF, 2-tone, 5-tone; en/decode
• Standard and security features, such as Key lock, Lone worker, GPS positioning options, Check, Call alert, Remote monitor, scanning...
• SMA MALE socket fitted. We have three types of optional adaptors
  in stock to suit; SMA-F (at front) to SO-239 (at rear) adaptor,
  SMA-F to BNC-F and SMA-F to SMA-F double-female adaptor

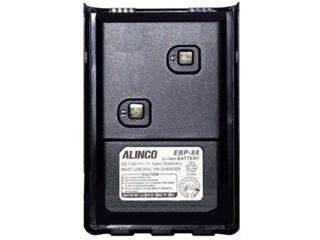

• Includes EBP-88 Lithium-ion 7.4V @ 1700mA/h battery, EA-228
  SMA rubber antenna, EDC-189A rapid charging cradle, wrist strap, EBC-34 belt clip, ERW-21 mini-USB to USB PC cable and approved
  AC charger!
• Will not transmit on UHF CB
• We don't program any radios
• Frequency programming software is NOT available from us or Alinco
• Options are at extra cost
• Some option parts may not be available

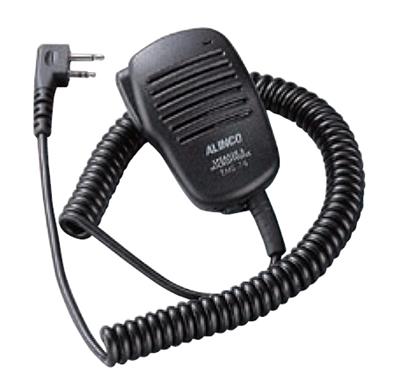

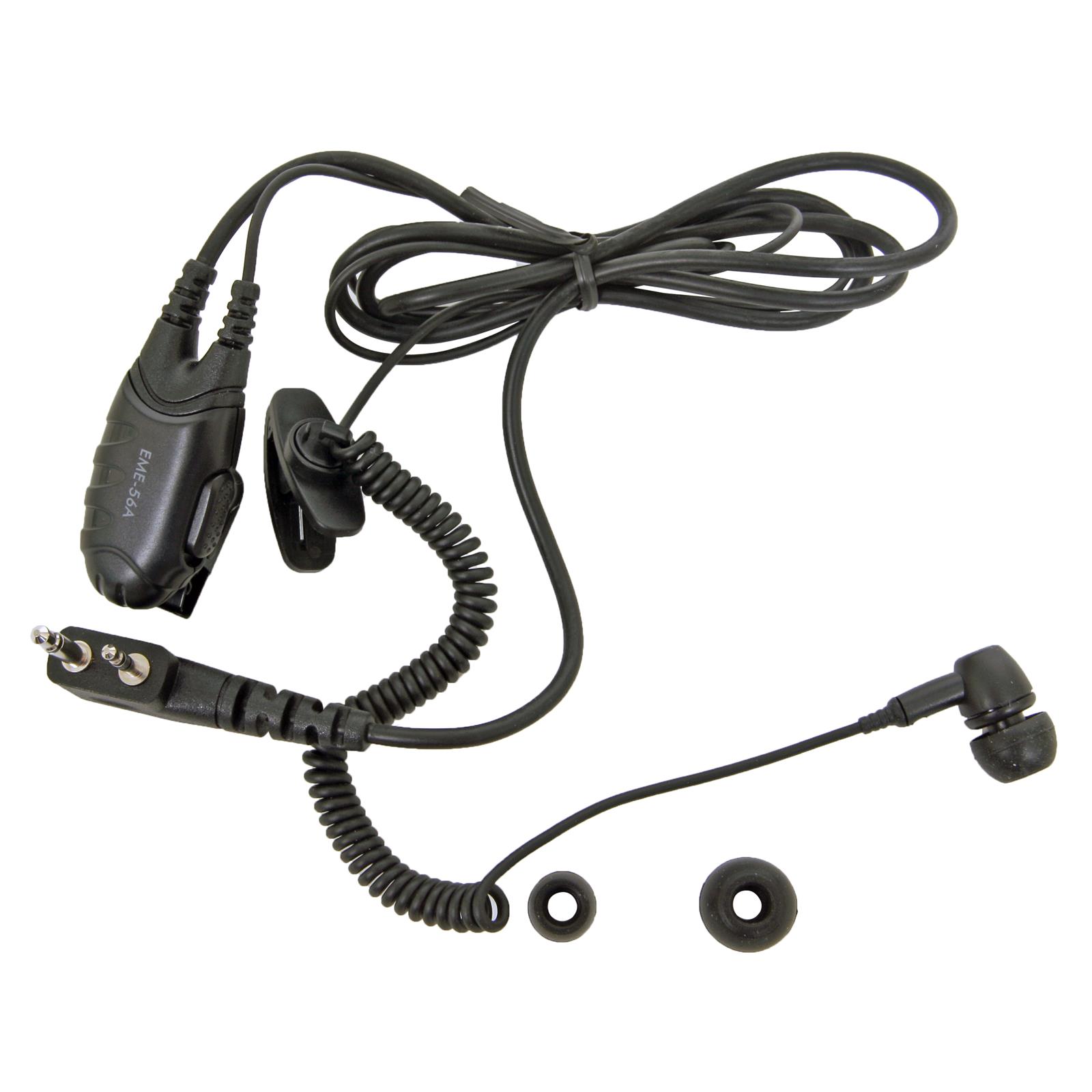

• DJ-MD5 options; EMS-76 speaker-mic, EME-56A earphone-mic and EBP-87 Lithium-ion 7.4V @1500mA/h battery
• Useage with a third-party microphone voids warranty and may result
  in permanent damage to the DJ-MD5E! Use an appropriate Alinco mic!

A CANDID REVIEW OF THE ALINCO DJ-MD5

 I found the Alinco DJ-MD5 to be the best DMR hand held radio, yet.
The concept of DMR “code plugs” seems overwhelming at first, but it is
fairly straight forward. Firstly, program in the talk groups (think of these
as "rooms") you want to use; as many as you want. Then, program in
the channels –-> frequency, labels, and the talk group assignment to
that channel. Each channel is for a specific talk group and frequency.
In the case of a hotspot, the frequency would be the same on each
channel, just the label and talk group being different. Once this is done, simply set up the zones. Each zone is a bank of channels – maybe one
for your hotspot, one for a trip to Darwin re the various DMR or analog repeaters. Remember that when on a repeater you still need a channel
for each talk group! I found the software on the Alinco was better than several other brands of software. I could easily copy/paste and put the channels in the order I wanted in the zones. My DJ-G5 currently holds the entire database of DMR contacts and the display is the best of any radio
I have used. The display can stay on and NOT drain the battery, simply because it is OLED! I feel it's a great feature of the radio. In my opinion,
this is best DMR handheld anywhere near its price point. I am sure there
are some commercial radios that are better, but nowhere near its price.

 ONE-YEAR WARRANTY!

Free freight Australia-wide!

Learn More

ONE-YEAR WARRANTY!

Free freight Australia-wide!

Learn More

The DJ-G7T triband handheld is
a great companion to the new
IC-9700 triband transceiver!

Now...$649 AUD

Limited stock!

ONE-YEAR WARRANTY!

Free freight Australia-wide!

Learn More

Yes, you can now get on 23cm for far less than the price of some manufacturers' multiband handheld transceivers which don't include 23cm - and that's truly amazing!!

Features include:

• 5W RF output on 2m, 4.5W on 70cm and 1W on 23cm (when using EBP73 battery pack)
• Main bands receive ranges
  (all 3 bands rec. in FM mode);
  2m band 136MHz~169.99MHz, 70cm 420MHz~469.99MHz & 23cm 1240MHz~1299.99MHz
• Super-wideband receive from 530kHz~1300MHz in sub-band receive mode
• Sub-band receive ranges vs. modes; 530kHz~50MHz AM, 30MHz~1299.99MHz FM and 76MHz~1299.99MHz WFM
• Auto mode or manual mode selection; see above. Some receive coverage gaps exist from 600MHz to 1300MHz
• Full duplex operation on any  TWO bands; 2m, 70cm, 23cm
• Cross-band repeater operation is easily enabled
• 1,000 alphanumeric memories with programmable mem. banks
• Many scanning modes
• Spectrum analysis display
• Conditional IPX7 submersibility
• Backlit LCD with contrast and brightness adjustments
• Twin "user assignable" dials
• DTMF tones and autodial mem.
• CTCSS/DCS encode-decode
• AM/FM broadcast band receive
• Automatic power off, alarm bell, tx-end beep, battery save, etc
• Built-in AM bar antenna
• VOX function. Cloning feature
• "Bug" device detection
• Diecast metal chassis!
• Includes EBP-73 Lithium-ion 7.4V @ 1200mA/h battery, EDC-173 charging cradle and approved AC charger!
• Options are at extra cost
• Some option parts may not be available
• DJ-G7 options; EBP-73, EDC-36, EDC-37, EDC-43, EDC-173, EDH-35, EDS-11, EDS-14, EME-6*, EME-12A*, EME-13A*, EME-15A*, EME-26*, EME-21A*, EME-32A, EME-34A*, EME-36A, EMS-59*, EMS-62 speaker-mic (discontinued), ERW-4, ERW-7* and ESC-50. Options marked with (*) require EDS-14 spkr/mic adaptor cable.

ALL-NEW DIGITAL DMR 70cm amateur UHF transceiver!

Now $249 AUD

Only 1 in stock!

ONE-YEAR WARRANTY!

Free freight Australia-wide!

Learn More

Yes, you can get on DMR (Digital Mobile radio) and analog modes for less than the price of some analog amateur handheld transceivers!!

Features include:

• DMR Tier I and Tier II
• Transmits 430~450MHz
• Receives 400~480MHz
• Selectable 5W, 2.5W, 1W & 0.2W RF output on 70cm
• Programmable up to 1,000ch., 250 zones w/64ch. per zone
• Records up to 18 hours
• Analogue channel spacing of 12.5kHz, 20kHz or 25kHz
• Digital ch. spacing 12.5kHz
• Dot matrix highly visible colour selectable backlit LCD
• Digital recorder. 1W audio o/p
• Quick contact accessing
• various security passwords
• Several alert tones
• Text messages
• Standard features, such as Key lock, Talk around, Lone worker, TOT, various call modes, Call logs, DTMF tones, scanning...
• Frequency stability +/-2.5ppm
• IP-54 dust and splash-proof compatible. IP-54 void when EMS-76 or EME-56A is fitted
• Has SMA MALE socket fitted. We have three types of opt. adaptors in stock to suit;
  SMA-F (at front) to SO-239
  (at rear) adaptor, SMA-F to
  BNC-F adaptor and SMA-F to SMA-F double-female adaptor
• Includes EBP-96 Lithium-ion 7.4V @ 2600mA/h battery, EA-212 SMA rubber antenna, EDC-211 charging cradle, wrist strap, EBC-45 belt clip and approved AC charger! Radio specs. & inclusions are subject
  to confirmation by Alinco
• Will not transmit on UHF CB
• We don't program any radios
• Frequency programming software is NOT available from us or Alinco
• Options are at extra cost
• Some option parts may not be available
• DJ-MD40 options; EMS-76 speaker-mic and EME-56A earphone-mic. ERW-13 data programming cable. Some options may not be available

DJ-VX50HT

DUALBAND 2m/70cm 5W/4W
handheld transceiver

Only $299 AUD

New dualbander!

Plenty in stock!

ONE-YEAR WARRANTY!

Free freight Australia-wide!

See the excellent video re programming DJ-VX50HT at...

https://www.youtube.com/watch?v=xc1oyMRcgi4

Learn More

Dust and water-proof to IPX67, commercial-grade, dual-band,  5W/4W RF output transceiver.

• Transmit frequency ranges; 144~148MHz and 430~450MHz
• RF o/p power levels; 5W/2W/1W on 2m and 4W/2W/1W on 70cm
• Receives VHF 136~174MHz, AM Airband 118~136MHz, WFM FM band 76~109MHz and 400~470MHz on UHF
• Superior cross-modulation, intermodulation and adjacent channel rejection performance!
• 200 alphanumeric memory channels with skip feature
• 3-colour selectable, large dot matrix LCD
  Direct frequency keypad entry
• FM broadcast band receive!
• Several scanning modes
• Memory scan with skip
• IP67 dust/waterproof
• Auto repeater shift
• 1W audio output
• VOX built-in
• Wide and narrow FM tx/rx deviation
• CTCSS and DCS en-decode, DTMF, 2-tone, 5-tone, TOT, repeater reverse, tone-burst and BCLO features
• Includes new EBP-101 hi-capacity 7.4V @ 1800mA/h Li-ion battery, EDC-219 rapid charging cradle, EA-253 SMA-M whip antenna,
  EBC-51 belt clip and approved AC charger!
• Options are at extra cost
• Some option parts may not be available
• Optional EDC-219 drop-in rapid charger (included w/new DJ-VX50)
  requires AC/DC plug-pack, EBP-101 Li-ion battery (included with
  new DJ-VX50), EME-56A earphone-mic and EMS-76 speaker-mic

Alinco DJ-X11E

Super-wideband super advanced all-mode SDR scanning receiver!

(SDR = Software Defined Radio)

DJ-X11E...$699 AUD

Sold out!

Shipment due soon...

Compare to all similar superwideband all-mode scanners!

ONE-YEAR WARRANTY!

Free freight Australia-wide!

***Outstanding performance***


Learn More

• Dual VFO simultaneous receive!
• Superwide main-band coverage of 50kHz~1.3GHz in all modes; AM/FM/WFM/SSB/CW
• Sub-band coverage in AM/FMN; 118~171MHz and 336~470MHz
• Huge 1200 channel memory
• Voice-guidance system reads entering/entered frequency
• Easy-to-use twin dials
• Rugged polycarbonate body with rubber protectors
• Long-lasting 1800mAh Li-ion battery pack provides nearly 15 hours
  of operation at full audio output in single receive mode
• Large, brightly illuminated full dot-matrix LCD and keypad
• Dual VFOs plus Channel Scope
• Dual Channel-Scope (Alinco's patented spectrum analyzer- like feature)
• Frequency counter and flash tune, too!
• "Bug detector" searches for hidden transmitters
• RF gain and attenuator for both main/sub VFOs
• IF bandwidth >15kHz @ -6dB
• IQ bandwidth 86kHz @ -3dB
• IQ signal allows 3rd party software to operate the DJ-X11E as a
  SDR (Software Defined Radio) --> amazing!
• The 10.7MHz IF output can be utilised with other receiver-related software such as at Winrad www.winrad.org and www.SDradio.eu/sdradio/
• Includes EBP-74 Li-ion 3.7V @ 1800mA/h battery pack, EDH-36 (accepts 3 x AA) dry cell battery case, AC charger
• Options are at extra cost
• Some option parts may not be available
• Options; ESC-50 soft case, EME-6 miniature earphone, EME-26 curly cord earphone, EDH-33 cigarette lighter cable, EDS-12 remote controller and ERW-4C, ERW-7 and ERW-8
  PC connection cables.

Now..$599 AUD

 In stock!

One year warranty on Alinco
antenna tuners and all other
Alinco accessories.

 Learn More

• Can be used with almost any
  suitable HF transceiver
• Can cover a continuous frequency range of 3.5MHz to 30MHz when used with an antenna over 7 meters long
• Can cover a continuous frequency range of 1.8MHz to 30MHz when used with an antenna over 12 meters long
• Rated to 150 watts pep SSB (not 1500W!), 100W carrier
• Auto tunes in 2~3 seconds or
  1 second retune from memory
• Can memorise 250 frequencies!
• Includes 4.5m of 4-conductor control cable with 5-conductor in-line male plug fitted at one end. The other cable end is hard-wired into the EDX-3
• Includes 4.5m of coaxial cable with a PL-259 plug fitted at
  one end. The other coax end
  is hard-wired into the EDX-3
• Also includes two U-bolts, hardware & operation manual
• Will auto tune with most HF transceivers by simply grounding the EDX-3's "start" line whilst transmitting a carrier at the 10W RF o/p level
• Requires 13.8Vdc @ 2A (e.g. from compatible Alinco t'cvr.)
• Size; 23w x 10h x 40d cm
• Weight; 2.1kg.

NEW LOWER PRICE!!

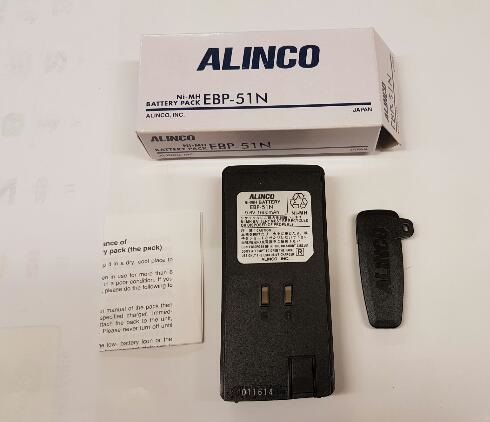

ALINCO EBP-51N...A$69
(was A$79)

PLENTY IN STOCK!

Rechargeable Ni-MH 9.6V @ 1600mA/h battery pack.

For DJ-596T, DJ-596II, DJ-193,
DJ-494, DJ-496, DJ-593...

***********************

DM-430E

Plenty in stock!

One year warranty on Alinco
power supplies & accessories

Click "Learn More" link below for
DM-430 pdf brochure (903.2K)

Learn More

• Can be used with almost any 100W RF o/p SSB transceiver
• Front panel voltage adjustment
• Switchable pre-set 13.8Vdc or 5~15Vdc adjustable voltage
• Digital voltmeter & ammeter!
• Up to 30A peak current
• Up to 25A max. current (ICAS)
• Short circuit, over-temperature and automatic current limiting (over 30A) protection circuits!
• Rear panel DC screw terminal banana sockets (30A max.)
• Front panel mounted pair of Anderson Power Pole ® clip terminals rated to 30A
• Temperature controlled fan forced cooling
• Switch mode power supply
• Output voltage regulation <2%
• <80mV p-p ripple @ rated load
• Weighs about 1.6kg.
• Size; 125w x 60h x 160d mm
• This regulated power supply is designed and warranted for use only with electronic equipment


DM-330FXE

One year warranty on Alinco
power supplies & accessories

Click "Learn More" link below for
DM-330FX pdf brochure (769.1K)

Learn More

• Can be used with almost any 100W RF output HF transceiver
• Front panel voltage adjustment
• Customer-set voltage memory
• Switchable voltmeter/ammeter
• Short circuit, over-temperature and automatic current limiting (over 30A) protection circuits!
• Rear DC panel posts (30A pk.)
• Cigarette lighter socket (10A)
• 2 pairs of clip terminals (5A)
• USB port (2A max.). May not charge some cellular phones
• Tunable Noise Offset Circuit
• Switch mode power supply
• <5mV p-p ripple @ rated load
• Weighs 2.5kg.
• Size; 190w x 69h x 181d mm
• This regulated power supply is designed and warranted for use only with electronic equipment

***********************

WARRANTY NOTES

Andrews Communications provide a one-year warranty period on Alinco amateur radio transceivers, batteries and accessories which we sell new!

 Warranty covers only faults in parts or workmanship. Warranty cover is not insurance cover, of course!

Customer-caused or environment caused damage is not covered by warranty, of course!

A valid sales receipt copy must accompany each warranty claim.
Include your name, address, email and phone number.

Andrews Communications has been super-successful in servicing Alinco products (to over 99% success) for 44+ years! No competitor can claim such a long and successful record.

***********************

 PARTS/REPAIRS TO DX-70TH

We just received some more "hard
to get" parts for Alinco's DX-70TH very popular and remotable 100W
all-mode transceiver. These parts may well be the last of their type obtainable from Alinco and USA.
These parts are NOT for outright
sale as we ordered them with the intention of continuing to repair
Alinco's discontinued but high performance DX-70TH transceiver. So, if you have a faulty DX-70TH
and would like it repaired then
please contact us. We often don't charge for a quick assessment to determine if your DX-70TH is economically possible to repair.
These DX-70TH parts include RF output stage FETs, multi-function
rotary switches, remote control
plug and lead assemblies, band
pass filter boards, etc.


FREIGHT & INSURANCE NOTES

Please note that ALL Alinco transceivers listed on this page are amateur radio transceivers and as such require an amateur radio license for legal operation. We do NOT custom engineer any radios to operate in any special applications, such as on hang- gliders, pushbikes, motorbikes...

A valid sales receipt copy must accompany each warranty claim.
Include your name, address, email and phone number.
