Scanning Receivers

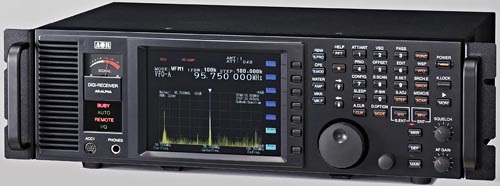

AR-ALPHA ALL-NEW PROFESSIONAL GRADE

 SUPER-WIDEBAND COMMUNICATIONS RECEIVER

*Now supplied with AR-IQ software!

 $9999 AUD
Place your order

• Features a 6" (152mm) high resolution TFT colour display with spectrum (to 1GHz wide), "waterfall" and video receive display modes
• Receives fully across 10kHz-3,300MHz
• USB-LSB-CW-WFM-NFM-AM-P25 (digital) - VIDEO modes
• Wideband FM mode has stereo selectable de-emphasis)
• Synchronous AM and diversity synchronous AM modes
• Video (FM, AM PAL/NTSC), ISB, RZSSB
• DSP at both the IF and demodulating stages
• IF filters; 200Hz, 500Hz and 3, 6, 15, 30, 100, 200 and 300kHz BWs.
• Fast, medium , slow and off AGC settings
• Dual communications ports on rear panel for RS-232 and USB connect
• Standard 19" rack mount width.

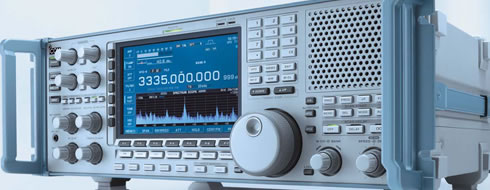

• Compare to Icom IC-9500, etc.
• Requires 13.8Vdc @ 2.5A.
• Options; AS5000 and AS5001 antenna switches

AR-ONE wideband
communications receiver!

$5999 AUD
Place your order

• Receives 10kHz-3,300MHz
• All modes; USB-LSB-CW-WFM-NFM-AM-DATA
• 1,000 alphanumeric memory channels store mode, steps, etc. Ten VFOs.
• Hi-resolution spectrum display
• Multiple scanning and search functions
• Bandwidths; 500Hz, 3kHz, 6kHz, 9kHz, 15kHz, 30kHz, 110kHz, 220kHz and 300kHz
• High sensitivity, high intercept point, triple conversion superheterodyne design
• Ultra-stable reference frequency oscillator (0.1 ppm)
• 10.7MHz 455kHz IF outputs
• Two RS-232C ports and one control head port
• You can control up to 99 AR-ONE receivers with one PC
• Options; ARD-25 APCO P25 digital board, MM8600 mobile mounting bracket, EXT-ONE 5m long separation cable, SA-7000 1.8m long passive wideband omni-directional vertical antenna. It has two vertical elements and includes 12m of RG-58 coaxial cable with BNC plugs fitted (requires N-M type plug to BNC-F socket adaptor to use with this radio). Covers 30kHz to 2GHz. Optional SDU-5600 spectrum display unit.

AR-ONE-C wideband frequency and phase coherent
communications receiver!

$6499 AUD
Place your order

• Specifications are similar to
  AR-ONE but the AR-ONE-C is frequency and phase coherent!
• Ideal for direction finding (DF) applications
• Receives 10kHz-3,300MHz
• All modes; USB-LSB-CW-WFM-NFM-AM-DATA
• 1,000 alphanumeric memory channels store mode, steps, etc. Ten VFOs.
• Hi-resolution spectrum display
• Multiple scanning and search functions
• Bandwidths; 500Hz, 3kHz, 6kHz, 9kHz, 15kHz, 30kHz, 110kHz, 220kHz and 300kHz
• High sensitivity, high intercept point, triple conversion superheterodyne design
• Ultra-stable reference frequency oscillator (0.1 ppm)
• 10.7MHz 455kHz IF outputs
• Two RS-232C ports and one control head port
• You can control up to 99 AR-ONE-C receivers with one PC
• Options; ARD-25 APCO P25 digital board, MM8600 mobile mounting bracket, EXT-ONE 5m long separation cable, SA-7000 1.8m long passive wideband omni-directional vertical antenna. It has two vertical elements and includes 12m of RG-58 coaxial cable with BNC plugs fitted (requires N-M type plug to BNC-F socket adaptor to use with this radio). Covers 30kHz to 2GHz. Optional SDU-5600 spectrum display unit.

AR-5001D wideband communications receiver!

$4699 AUD
Place your order

• Receives 40kHz-3,150MHz
• USB-LSB-CW-WFM-NFM-AM
  and AM synchronous modes!
• 2,000 alphanumeric memory channels store mode, step...
• Bandwidths; 200Hz, 500Hz, 3kHz, 6kHz, 15kHz, 30kHz, 100kHz, 200kHz and 300kHz
• Two dual-frequency modes!
• Special tri-frequency mode!
• 5 VFOs, DTMF decode, CW pitch, auto notch, noise reduction, noise blanker, etc.
• Has keypad entry, precision S-meter and SD card port
• Hi-resolution spectrum display
• Options; AS-5001 antenna switch, DC-8600 DC lead with cigarette lighter plug, P25-2300 APCO P25 mode board, IQ-5001 I/Q control unit (plug-in) with I/Q software, GP-5000 external GPS (for frequency reference).

************************

NOTES

Only AOR equipment purchased new from Andrews Communications and their authorised dealers carries the ACS/AOR factory-backed warranty.

Check AOR's authorised dealer list at www.aorja.com/aboutus/dealers.html

Beware of non-servicing unauthorised parallel importers who cannot provide any direct factory-backed warranty repair service. Those importers are welcome to pay us to repair faulty  parallel-imported AOR products.
Yes, they are welcome to pay us!

We are AOR's exclusive authorised sales and service dealer for
Australia and New Zealand.


***NEW***

AR-6000 super-wideband multi-
mode 9kHz~6GHz receiver!

$7499 AUD
Place your order

• World's first commercial receiver manufacturer to introduce a receiver with 9kHz-6,000MHz continuous receive coverage in 1Hz increments (2Hz>3.15GHz)
• Frequency bands above 3GHz are now populated with new signal standards, such as MLS, STL and FPU. These signals cannot be received/decoded with normal wideband receivers.
  AOR's AR-6000 is the solution!
• Distributed-constant circuitry ensures low noise and minimal performance deterioration
• Ultra-low noise down converter across 3.15GHz~6GHz range
• SDR architecture digitally processes signals from the 3rd IF stage for better performance
• Direct conversion for LF, MF and HF signals (9kHz~25MHz) to digital baseband format for high sensitivity and less images
• Zero IF synchronous system  detection for frequencies above 25MHz, for image reduction and clean digital I/Q signal output
• USB-LSB-CW-WFM-NFM-AM
  and FM-stereo modes!
• 2,000 alphanumeric memory channels store mode, step...
• Bandwidths; 3kHz, 6kHz, 15kHz and 200kHz
• Has keypad entry, precision S-meter and SD card port
• Hi-resolution spectrum display
• Options; AS-5001 antenna switch, DC-8600 DC lead with cigarette lighter plug, P25-2300 APCO P25 mode board, IQ-5001 I/Q control unit (plug-in) with I/Q software, GP-5000 external GPS (for frequency reference).

The AR8600 Mark2 is an amazingly versatile receiver which can be used mobile, base or transportable. It can be powered from an external 12V DC power supply, 12V vehicle or from an optional internally fitted NiCad battery pack.
Due to continuous development of AOR products, the AR8600 Mark2 has been enhanced in several areas. It now receives from 100kHz to 3000MHz (3.0GHz) - with improved lower frequencies sensitivity, too!
Features a 1,000 channel memory.
Enhanced short wave performance has been achieved by the addition of more bandpass filters and also a selection of alternative I.F. filters.
An AC plug pack is included.

SR-2000A 25MHz~3GHz frequency monitor with
high speed FFT search and
5" colour TFT video display!

$3399 AUD
Place your order

• High speed FFT search - scans 10MHz in only 0.2 seconds!
• Ultra-stable, high sensitivity triple conversion receiver
• Receives 25MHz~3GHz
• AM-NFM-WFM-SFM-TV
  receive modes
• Excellent IP3 of +1dBm
• 1,000 alphanumeric memory channels store mode, steps...
• Video display (PAL/NTSC auto.)
• LCD displays average or peak
• Spectrum display of up to 40MHz bandwidth
• Resolution bandwidths of 1, 4, 32, 64 and 128kHz
• Waterfall (time) display function
• PC control through RS-232C serial port or USB interface
• External video output socket (composite video)
• Options; APCO25 decoder, etc.

Super low price!

$599 AUD
In stock!

Learn More

The AR8200 Mk3 has quickly established itself as the 'top notch' hand portable receiver, providing unsurpassed features.
The AR8200 Mk3 has evolved from the AR8200 Mk2, drawing upon the successful award winning AR5000 and AR8600 Mk2 receiver designs.
Extended receive frequency coverage of up to 3GHz and 1,000 channel memory!

The AR8200 Mk3 features improved display illumination.
Includes high capacity NiMH AA batteries and AC charger, too!

***************************

AOR AR-8200 Mk3-IR
INFRA-RED version

$699 AUD
Order required!

In addition to the standard features of the AR-8200 Mk3, the AR-8200 Mk3-IR has been modified to be fully Night Vision Goggle (NVG) compatible for government applications. When the IR (Infra-red illumination) function is activated, the original green LED that illuminates the display and keypad is deactivated. The IR illumination intensity has been set to be compatible with the high sensitivity levels of military grade NVGs.
For this reason, it may be difficult to appreciate the difference between IR function ON and OFF when low specification or low sensitivity night vision goggles are utilised.


=NEW=

SPECIAL APCO25 DIGITAL MODEL

$899 AUD
In stock!
New shipment just arrived!

Learn More

The AR-8200D / APCO25 special digital model boasts these features;

• APCO25 (P25) digital decoding in conventional mode
• CTCSS (Tone squelch) decode
• Voice recording on micro SD in WAV format
• USB interface

The AR-8200D / APCO25 special digital model includes;

• 1-metre USB adaptor lead fitted with USB (2.0) A-type plug and Mini-USB B-type 5-pin plug
• Micro-SD card (4GB) - for voice recording (factory-fitted)
• Micro-SD adaptor card
• 4 x AA NiMH 1800mA/h batt's
• Telescopic whip antenna (BNC)
• Plug-in medium wave bar ant.
• Cigarette lighter charger lead
• AC wall charger rated at 500mA
• Belt clip w/2 screws, wrist strap
• Operating manual (abt. 140 pp)

The following accessories cannot be used with this new special model;

• CC8200A (RS232C interface)
• EM8200 (External mem. card)
• IF8200 (Straight interface cable - new IF8200A available soon)
• TE8200 (Tone eliminator)

The following accessories are not needed because their functions are included in this new special model;

• USB8200 (USB interface)
• CR8200 (Tape recording cable)
• CT8200 (CTCSS card)
• VI8200 (Voice inversion card
• All above information is subject to confirmation by AOR in Japan

High-performance 100kHz-1.3GHz tiny handheld scanning receiver. Has 1000ch. memory and receives in AM, FMN and FMW modes.
Includes belt clip, wrist strap, two 2500mA/h Ni-MH
batteries and AC charger.


ARL-2300 Ethernet controller

ARD-25 APCO25 digital-to-analog multimode data converter

ARD-9000 MkII Digital voice modem

ARD-9800 Fast modem - digital voice and image interface

ARD-9900 Multimode digital and voice interface

Please contact us re pricing, etc.

AR-2300 wideband "black box" communications receiver!

$4299 AUD
Place your order

• Receives 40kHz-3,150MHz
• USB-LSB-CW-WFM-NFM-AM
  and AM synchronous modes!
• 2,000 alphanumeric memory channels store mode, step...
• Bandwidths; 500Hz, 3kHz, 6kHz, 15kHz and 200kHz
• AR-2300 Windows software included (for XP or higher)
• Options; ARL-2300 external IP control unit, P25-2300 APCO25 digital board (plug in), IQ-5001 I/Q control unit with I/Q software, GP-5001 external GPS for frequency reference

SR-2200 "Black box" wideband scanning receiver covers 25MHz to 3GHz and may be controlled via rear panel RS-232 and USB sockets. Computer required.

                    $2199 AUD
                Place your order

• Receives 25MHz~3GHz
• AM-NFM-WFM-SFM modes
• High sensitivity and selectivity
• 2,000 alphanumeric memory channels store mode, step...
• Bandwidths @ -60dB points; NFM +/- 10kHz, AM/SFM +/- 6kHz, WFM +/- 180kHz
• Frequency stability of +/- 1ppm

                *AR-IQ software

                        P.O.A.
              Place your order

• Receive control
• IQ record and playback for AR-Alpha
• Store and playback up to 1MHz of bandwidth with quality loss!
• Re-listen, re-decode, tune to any frequency off-line - as if in real time!
• Loop a particular time frame
• Burst signals won't be missed when in waterfall display mode
• *AR-IQ software now included with new AR-ALPHA receivers
• System requirements apply!

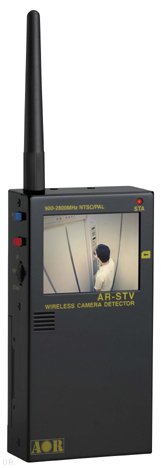

Receives and displays analogue video signals on L-band (1.2GHz) or S-band (2.4GHz). Detects PAL, NTSC, etc.

Captures hidden video signals...



Has 2.5" colour LCD display and still picture recording! Searches 0.9~2.8GHz and time-stamps captured images.
Fast spectrum analysis display, too!


***Outstanding performance***

Learn More

• Dual VFO simultaneous receive!
• Superwide main-band coverage of 50kHz~1.3GHz in all modes; AM/FM/WFM/SSB/CW
• Sub-band coverage in AM/FMN; 118~171MHz and 336~470MHz
• Huge 1200 channel memory
• Voice-guidance system reads entering/entered frequency
• Easy-to-use twin dials
• Rugged polycarbonate body with rubber protectors
• Long-lasting 1800mAh Li-ion battery pack provides nearly 15 hours of operation at full audio output in single receive mode
• Large, brightly illuminated full dot-matrix LCD and keypad
• Dual VFOs plus Channel Scope
• Dual Channel-Scope (Alinco's patented spectrum analyzer- like feature)
• Frequency counter and flash tune, too!
• "Bug detector" searches for hidden transmitters
• RF gain and attenuator for both main/sub VFOs
• IF bandwidth >15kHz @ -6dB
• IQ bandwidth 86kHz @ -3dB
• IQ signal allows 3rd party software to operate the DJ-X11E as a SDR - amazing!
• SDR = Software Defined Radio
• The 10.7MHz IF output can be utilised with other receiver-related software such as at Winrad www.winrad.org and www.SDradio.eu/sdradio/
• Supplied with EBP-74 Li-ion 3.7V @ 1800mA/h battery pack, EDH-36 (accepts 3 x AA) dry cell battery case, AC charger
• Options; ESC-50 soft case, EME-6 miniature earphone, EME-26 curly cord earphone, EDH-33 cigarette lighter cable, EDS-12 remote controller and ERW-4C, ERW-7 and ERW-8
  PC connection cables.

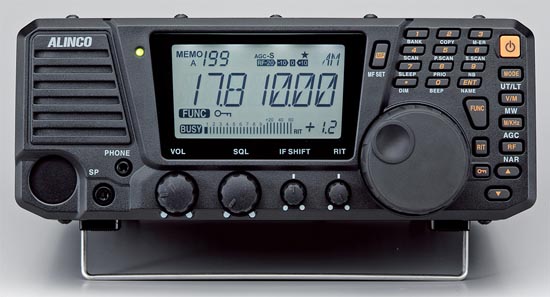

ALL-NEW DX-R8
Genuine high performance communications receiver!

$849 AUD
In stock!

***Outstanding performance***

Learn More

• General coverage receive from 150KHz to 35MHz in all modes!
• Receives in SSB, CW, AM and FMN modes
• Dual VFO operation
• Remoteable front panel!
  (EDS-17 cable option required)
• Large easy-to-read alphanumeric display
• Direct frequency entry via the front panel keypad
• SDR - Software Defined Radio! Free software required for SDR mode operation
• IF Shift, RIT, noise blanker and narrow filtering features
• Enhanced scanning modes
• Front panel selectable normal bandwidths; SSB/CW 2.4kHz wide, FM/AM 6kHz wide
• Front panel selectable narrow bandwidths; SSB 1.0kHz, CW 500Hz (A.F.), AM(N) 2.4kHz
• Frequency stability; +/- 1ppm
• RF attenuator and receive preamplifier
• 600 memories in 3 banks
• Front facing speaker
• Dimensions; 240w x 94h x 255d (mm). Weight; 4.1kg
• Audio output; 2W @ 10% THD
• Note; VFO tunes down to
  30kHz, but performance is not guaranteed from 30kHz-150kHz
• Compare to Icom IC-R75
• Includes Vanson SMP-1000A AC/DC plug-pack type power supply and EDC-37 DC cable
• Options;  EDC-36 mobile DC cable, EDC-37 DC cable,
  EDS-17 separation kit and
  ERW-7 programming cable

The new DJ-X7E has AMAZING audio quality and provides many scanning receiver capabilities in a thin, credit card sized scanning receiver!

• Super wideband receive high performance 100KHz to 1300MHz scanning receiver
• Illuminated LCD display
• Triple conversion receive in AM and NFM modes, double in FMW
• 1,000 channel memory, CTCSS
• Independent mode selection
• 5 operating modes, e.g. VFO.
• Internal ferrite bar antenna for improved MW and SW receive
• 20dB attenuation selectable
• Outstanding AM/FM BC receive
• Computer connection and cable cloning via optional ERW-4C
• Includes EBP-58N 3.7V @ 600mA/h Li-Ion battery and AC charger
• Export continuous coverage "E" model (not the cellular-blocked USA "T" version)

NOTES

Insurance cover for goods in transit is available from us for only $2 per $100 value of goods. Please advise us if you require this option when ordering.

Please consider insurance because we are not responsible for loss of parcels or damage sustained by parcels - the carrier is responsible! We do pack well!

Please do NOT write <fragile> on anything you send to us as doing so greatly increases the risk of damage. Please try to "double-box" all items sent to us.

Warranties are not transferable. We don't offer replacement warranties.
Customer-caused damage is not covered by warranty, of course.

A sales receipt copy must accompany each warranty claim
Include your name, address, email and phone number
Service centre website; www.rfrepairs.com.au
Service email; service@rfrepairs.com.au
Service technician; 02 4305 2301

Andrews EBP-34H NiMH battery pack 4.8V @ 1800mA/h

A$49
In stock!

Suits DJ-X10, DJ-X2000, DJ-G5

Andrews EBP-36H NiMH battery pack 9.6V @ 700mA/h

A$49
In stock!

Suits DJ-X10, DJ-X2000, DJ-G5


Icom IC-R6 scanner

$299 AUD
In stock!

Learn More

• Receives 0.1~1310MHz
• High speed scan @ 100ch/sec.
• AM-FMN-FMW modes
• 1300 memory chs. in 22 banks
• Priority watch function with priority "beep" feature
• VSC - Voice Squelch Control - opens the squelch only when a modulated signal is received
• Up to 15 hours of receiving time with the supplied NiMH batteries
• Audio low pass filter built-in
• Ferrite bar antenna for AM BCB
• Loud 150mW audio output
• CTCSS and DTCS tone squelch plus reverse tone squelch
• RF attenuator built-in
• Auto memory write stores frequency, etc, when scanning
• Dial speed-up feature
• Optional CT-17, CI-V level converter for remote control operation, at extra cost
• PC programmable with optional CS-R6, at extra cost
• Receiver-to-receiver cloning with opt. OPC-474, extra cost
• Supplied with approved AC power pack and two NiMH rechargeable batteries

Icom IC-R20 scanner

Learn More

• Receives 0.15~3305MHz
• SSB-CW-AM-FMN-FMW modes
• Scans, monitors and records
• High speed scan @ 100ch/sec.
• Dual watch receiving
• 4 hours of digital recording
• Bandscope function!
• VSC - Voice Squelch Control - opens the squelch only when a modulated signal is received
• CTCSS and DTCS tone signalling w/tone scanning function, too!
• Alphanumeric memory channels
• Over 1,000 memory channels
• Offset monitoring allows semi- duplex channel monitoring
• Ferrite bar antenna for AM BCB
• RF attenuator and RF gain control are built-in
• Dial speed-up feature
• NB, ANL, AF filterinf built-in
• Up to 11 hours of continuous operation w/supplied battery
• Optional CT-17, CI-V level converter for remote control operation, at extra cost
• Supplied with approved AC power pack and Icom BP-206 Li-ion battery pack

• Dual watch capable
• Diversity reception (2 ant. req.)
• Diversity reception is not available when using dual watch
• Remoteable front panel
• 10kHz-3,300MHz all-mode rec.
• Wide LCD display for easy independent band control
• 1,000 alphanumeric memory channels with Dynamic Memory Scan (DMS) management
• VSC, NB, IF filter width select.
• AFC, IF shift, timer, AGC select.
• Short or long squelch delay
• CTCSS/DTCSS + duplex mode
• 20dB RF att. (below 1300MHz)
• Cloning function for read/write
• All functions avail., if using PC
• Optional DSP w/UT-106; A$149
• Optional UT122; APCO25 digital decoding board is now A$229
• Optional UT-118 D-Star board
• Supplied with approved AC power pack, 3.4m long controller cable, antenna, USB cable and software CD

• High performance multi-mode communications receiver allows all-mode (SSB-AM-CW-FM)reception to 60MHz!
• The optional UT-106 DSP digital noise reduction (DNR) board greatly improves signal to noise ratio by reducing noise!
• PC programmable
• Multiple scan modes
• Optional filter slots
• Superior receiving performance
• Synchronous AM detection
• Very easy to use
• UT-106 DSP board is optional at only $149 from us!

Icom BP-206 Li-ion battery pack
3.7V @ 1650mA/h

$69 AUD
In stock!

Why pay A$109 elsewhere?

Suits IC-R3, IC-R20 scanners


The UBC93XLT handheld scanner has a full frequency display and offers 200 programmable memory channels. Australian version.

It has 'Close Call RF Capture Technology' and it covers the 800MHz band.

Frequency ranges received are 25-88, 108-174, 400-512 and 806-956 MHz. Priority scanning, etc.
Includes AC charger and two NiMH batteries.



UBC-396XT WITH UBC-RH-96
SPECIAL PACKAGE

UBC-396XT WITH UBC-RH-96
SPECIAL PACKAGE

$599 AUD
Special package in stock!

• Compact DIGITAL scanner WITH UBC-RH-96 package!!
• Trunk Tracking Version IV
• Receives 25-520, 758-960 and 1240-1300MHz (23cm) bands
• 25,000 "dynamic" channels
• "Close Call" near-field RF capture technology
• Bandscope for panoramic displaying of in-band signals
• Multicolour LCD backlighting
• 8 service searches; Police, Marine, Railroad, Air, HF CB, UHF CB, Racing and FM BCB
• 100 quick-select keys
• DCS/CTCSS rapid decode
• 10 search banks, too!
• Temporary lockout system
• Frequency steps from 5-100kHz
• 500 (250) temporary + 250 permanent search lockouts
• IF Exchange allows swapping to alternative IF frequency
• Frequency/ID auto-store
• Lockout Search features allows skipping of continuous signals
• 16-character text tagging
• Strong signal attenuator
• Upgradeable firmware
• PC programming and control
• Memory backup
• Battery save and battery level
• Repeater reverse feature
• SMA-F socket fitted.
• SMA-M to BNC-F adaptor included, too!

UNIDEN UBCD-396XT DIGITAL APCO25 handheld scanning receiver - outstanding value!

= NEW MODEL =

$469 AUD
In stock!

• Compact DIGITAL scanner
• Trunk Tracking Version IV
• Receives 25-520, 758-960 and 1240-1300MHz (23cm) bands
• 25,000 "dynamic" channels
• "Close Call" near-field RF capture technology
• Bandscope for panoramic displaying of in-band signals
• Multicolour LCD backlighting
• 8 service searches; Police, Marine, Railroad, Air, HF CB, UHF CB, Racing and FM BCB
• 100 quick-select keys
• DCS/CTCSS rapid decode
• 10 search banks, too!
• Temporary lockout system
• Frequency steps from 5-100kHz
• 500 (250) temporary + 250 permanent search lockouts
• IF Exchange allows swapping to alternative IF frequency
• Frequency/ID auto-store
• Lockout Search features allows skipping of continuous signals
• 16-character text tagging
• Strong signal attenuator
• Upgradeable firmware
• PC programming and control
• Memory backup
• Battery save and battery level
• Repeater reverse feature
• SMA-F socket fitted.
• SMA-M to BNC-F adaptor included, too!

=NEW MODEL=

UNIDEN UBC-355XLT Desktop/mobile scanner!

$199 AUD
In stock!

Learn More

• Desktop/in-car design
• 300 channel memory (10 banks)
• "Close Call" near-field RF capture technology
• 8 pre-programmed service banks - and a private bank
• Private/analogue/police/railroad/
  fire/ambulance/air/marine/UHF CB and AM CB, too!
• 8 frequency banks
• Band, Service and Close Call search programs
• Lockout Search features allows skipping of continuous signals
• Turbo search at 180 steps per second (5kHz step only)
• Memory backup
• Receives 25-88, 108-174, 400-520 and 806-956MHz bands
• BNC socket fitted!
