Power Supplies

ALINCO, MANSON and DIAMOND
high-quality power supplies!


High quality and high
current power supplies!

***********************************************

AMEX, MASTERCARD and VISACARD WELCOME HERE!
We ensure power supplies we sell aren't "RF noisy"!
Contact us now to order! We mail order worldwide.



Manson SPS-9600 60A 13.8Vdc
power supply...
$599 AUD

Please order by phone; 02 9688 4301/9636 9060/9896 8972,
by email; radioandrews@hotmail.com or by mail;
P.O. Box 240, Pendle Hill, NSW, 2145.

Updated 03-07-24


MANSON POWER SUPPLIES

Manson factory-authorised factory-direct importer!

One year Manson factory-backed Australian warranty

Learn More



MANSON SPS-9600


Manson SPS-9600 60A deluxe regulated power supply

A$599 AUD

Plenty in stock!

Colour finish is dark grey
"G" suffix = Grey colour.
"B" suffix = Black colour.

All Manson prices are subject to change without notice/obligation
due to parts cost increases, etc.

Learn More

High current, regulated and variable output voltage 60A power supply.

  • Regulated 60 amp power supply with 3-15VDC variable output voltage (@ 50% duty cycle, i.e. ICAS). Rated to 20A continuous (100%) duty cycle, i.e. CCS*
  • Ripple and noise: 40mV p-p
  • Load regulation 0.1% + 5mV
  • Variable speed thermostatically controlled fan
  • Overload (constant current limiting), short circuit, over-temperature and over-voltage protection features
  • Constant current limiting allows output current to remain constant but the output voltage reduces to a low level
  • Highly stable and highly resistant to RFI intrusion
  • Highly efficient, at about 85%
  • Remote sensing feature
  • Size; 220w x 110h x 360d mm
  • Weight; 5.5Kg.
  • This regulated power supply is designed and warranted for use only with electronic equipment




MANSON SPS-9620

power supplies

Manson SPS-9620 120A regulated power supply

A$1099 AUD

Sold out!

Colour finish is dark grey
"G" suffix = Grey colour.
"B" suffix = Black colour.

All Manson prices are subject to change without notice/obligation
due to parts cost increases, etc.

Learn More

Super-high current power supply for high power linear amplifiers, etc.

  • Regulated 120 amp power supply with 13.8Vdc output
    (@ 50% duty cycle, i.e. ICAS). Rated to 40A continuous
    (100%) duty cycle, i.e. CCS*
  • Finely adjustable output voltage from 12.6V to 14.3V DC
  • Ripple and noise: 40mV p-p
  • Load regulation 0.1% + 5mV
  • Variable speed thermostatically controlled fan
  • Overload (constant current limiting), short circuit, over-temperature and over-voltage protection features
  • Constant current limiting allows output current to remain constant but the output voltage reduces to a low level
  • Highly stable and highly resistant to RFI intrusion
  • Highly efficient, at about 80%
  • Remote sensing feature
  • Size; 235w x 218h x 345d mm
  • Weight; 11kg.
  • This regulated power supply is designed and warranted for use only with electronic equipment

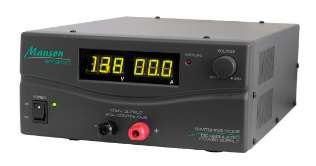

Manson SPS-9400 40A deluxe regulated power supply

 $469 AUD

SOLD OUT!

 Colour finish will be confirmed
by Manson upon our order...
"G" suffix = Grey colour.
"B" suffix = Black colour.

All Manson prices are subject to change without notice/obligation
due to parts cost increases, etc.

Learn More

High current, regulated and variable output voltage 40A power supply.

  • Regulated 40 amp power supply with 3-15VDC variable output voltage (@ 50% duty cycle, i.e. ICAS). Rated to 12A continuous (100%) duty cycle, i.e. CCS*
  • Fixed voltage setting; 13.8V via recessed switch underneath
  • Overvoltage protection; 16.5V
  • Ripple & noise: 10mV RMS
  • Load regulation: 120mV @ 0 - 100% load
  • Variable speed thermostatically controlled fan (1/3 to full)
  • Overload (constant current limiting), short circuit, over-temperature and over-voltage protection features
  • Highly stable and highly resistant to RFI intrusion
  • Highly efficient, at about 78%
  • Size; 220w x 110h x 300d mm
  • Weight; 3.5kg.
  • This regulated power supply is designed and warranted for use only with electronic equipment



Manson SPS-9250 25A deluxe regulated power supply

 $399 AUD

In stock!

Colour finish is dark grey
"G" suffix = Grey colour.
"B" suffix = Black colour.

All Manson prices are subject to change without notice/obligation
due to parts cost increases, etc.

Learn More

High current, regulated and variable output voltage 25A power supply.

  • Regulated 25 amp power supply with 3-15VDC variable output voltage (@ 50% duty cycle, i.e. ICAS). Rated to 8A continuous (100%) duty cycle, i.e. CCS*
  • Fixed voltage setting; 13.8V via recessed switch underneath
  • Ripple & noise: 5mV RMS
  • Load regulation: 200mV @ 0 - 100% load
  • Variable speed thermostatically controlled fan
  • Overload (constant current limiting), short circuit, over-temperature and over-voltage protection features
  • Highly stable and highly resistant to RFI intrusion
  • Highly efficient, at about 80%
  • Size; 220w x 110h x 225d mm
  • Weight; 3.2kg.
  • This regulated power supply is designed and warranted for use only with electronic equipment
AC/DC Power Supplies

 Manson SPA-8330B
13.8VDC @ 33A power supply

$349 AUD

Plenty in stock!

Colour finish is black!
"G" suffix = Grey colour.
"B" suffix = Black colour.

Manson prices are subject to change without notice,
due to parts cost increases, etc. Colour of SPA-8330
power supplies in February, 2022 shipment is black (B).

Learn More

New high quality fan cooled (from zero to full fan speed) metal-cased switch-mode high current 13.8VDC @ 33A "continuous" rated (i.e. 30 seconds on load, 30 seconds off load, i.e. 50% duty cycle) regulated power supply. Super-rugged design boasts current overload and short circuit protection thanks to its advanced constant current limiting circuitry.
Yes, the SPA-8330 power supply features current overload, over-temperature, over-voltage and short-circuit protection!
The red fault light will illuminate and the DC output voltage and DC current will reduce to a safe level when any of the above faults occur.
Highly efficient, at about 80%.
Up to 36A peak/intermittent/maximum current for 10 seconds per minute
Up to 33A on load for 30 seconds, off load for 30 seconds (i.e. 50% cycle or ICAS). Up to 1 minute on load at 33A with 3 minutes off load (ICAS).
Rated to 11A for 24 hours/day of continuous (100%) duty cycle, i.e. CCS.
Voltage fine adjustment range of 10Vdc to 15Vdc is possible via a trimmer, which is accessible through a hole underneath the power supply.
Voltage adjustment is not normally required as the power supply's voltage fine adjustment is set to 13.8Vdc by the Manson factory.

This regulated power supply is designed and warranted for use only with electronic equipment

  • Exceptional immunity to RFI!
  • Cooling fan has thermistor temperature sensing variable speed
  • Ripple and noise; <50mV p-p, 5mV rms
  • Ambient operating temperature range; 0° to 40° C
  • Excellent quality and low price!
  • Dimensions; 200w x 80h x 213d mm
  • Packed dimensions; 34cm x 26cm 15cm
  • Weight of power supply; 2.6kg. Packed weight; 3.3kg.
  • Specially designed for amateur radio and commercial radio use by the
    kind efforts of Manson Engineering, thanks to the recommendation and requirement by Lee Andrews for this type of design and current rating
    of high grade, well regulated and well protected power supply!
  • Please note that Manson confirmed on 16-04-20 that there has been
    no need to upgrade or amend the SPA-8330 in any way. They have no
    idea why an Australian competitor uses the letter (B) suffix in their notation of this power supply. Manson and ourselves can only assume that the letter (B) suffix notation used by that Australian competitor
    may for some internal assignment or stock control by that competitor.



Manson HCS-3600 60A 1~16V
laboratory grade high current
regulated power supply

$P.O.A. AUD

Sold out!


Place your order with deposit.
Delivery takes ~5 months.
Subject to availability!

Colour finish is light grey!

All Manson prices are subject to change without notice/obligation
due to parts cost increases, etc.
Our current stock is unaffected.

Learn More

High current, regulated and variable output voltage 60A power supply.

  • Regulated 60 amp power supply with 1-16VDC variable output voltage (@ 50% duty cycle, i.e. ICAS). Rated at 20A continuous
    (100%) duty cycle, i.e. CCS*
  • Front panel fine/coarse rotary encoder voltage and current (limiting) adjustment controls
  • Three user-defined presets
  • Remote control of voltage or current (0~5V or pot.)
  • Remote on/off control
  • Automatic cross-over between constant current and constant voltage modes w/LED display!
  • Remote voltage sensing adjusts for voltage drop in cabling
  • Ripple; 5mV RMS (50mV p-p)
  • Load regulation: 50mV @ 10% to 100% load
  • Line regulation; 50mV @ 10%  to 100% load
  • Line regulation; 20mV @ 170V to 264VAC input
  • Variable speed thermostatically controlled fan
  • Current overload (OLP), over-temperature (OTP) and over-voltage (OLP) protection!
  • Short circuit protection by constant current limiting
  • High RFI immunity and
    excellent EMI!
  • Highly efficient, at >85%
  • Electrical performance test report included w/all HCS p/s
  • Colour to be confirmed
  • Size; 200w x 90h x 275d mm (to be confirmed)
  • Weight; 3.7Kg. (to be confirmed)
  • ICAS = Intermittent Commercial and Amateur Service (i.e. 50% duty cycle)
  • *CCS = Continuous Commercial Service (i.e. 100% duty cycle)
  • This regulated power supply is designed and warranted for use only with electronic equipment



Manson HCS-3602 32V @ 30A  laboratory grade high voltage regulated power supply

$P.O.A. AUD

Sold out!


Place your order with deposit.
Delivery takes ~5 months.
Subject to availability!

Colour finish is light grey!

All Manson prices are subject to change without notice/obligation
due to parts cost increases, etc.
Our current stock is unaffected.

Learn More

High voltage, high current, regulated and variable output voltage 30A power supply.

  • Regulated 1~32VDC variable output voltage, 30 amp (@ 50% duty cycle, i.e. ICAS) power supply. Rated to 10A (CCS*) continuous (100%) duty cycle
  • Front panel fine/coarse rotary encoder voltage and current (limiting) adjustment controls
  • Three user-defined presets
  • Remote control of voltage or current (0~5V or pot.)
  • Remote on/off control
  • Automatic cross-over between constant current and constant voltage modes w/LED display!
  • Remote voltage sensing NOT available for SPS-3602
  • Ripple; 5mV RMS (50mV p-p)
  • Load regulation: 50mV @ 10% to 100% load
  • Line regulation; 50mV @ 10%  to 100% load
  • Line regulation; 20mV @ 170V to 264VAC input
  • Variable speed thermostatically controlled fan
  • Current overload (OLP), over-temperature (OTP) and over-voltage (OLP) protection!
  • Short circuit protection by constant current limiting
  • High RFI immunity and
    excellent EMI!
  • Highly efficient, at >86%
  • Electrical performance test report included w/all HCS p/s
  • Colour to be confirmed
  • Size; 200w x 90h x 275d mm (to be confirmed)
  • Weight; 3.7Kg. (to be confirmed)
  • ICAS = Intermittent Commercial and Amateur Service (i.e. 50% duty cycle)
  • *CCS = Continuous Commercial Service (i.e. 100% duty cycle)
  • This regulated power supply is designed and warranted for use only with electronic equipment



Manson HCS-3604 60V @ 15A  laboratory grade high voltage regulated power supply

$P.O.A AUD

Sold out!


Place your order with deposit.
Delivery takes ~5 months.
Subject to availability!

Colour finish is light grey!

All Manson prices are subject to change without notice/obligation
due to parts cost increases, etc.
Our current stock is unaffected.

Learn More

High voltage, high current, regulated and variable output voltage 15A power supply.

  • Regulated 1~60VDC variable output voltage, 15 amp (@ 50% duty cycle, i.e. ICAS) power supply. Rated to 10A (CCS*) continuous (100%) duty cycle
  • Front panel fine/coarse rotary encoder voltage and current (limiting) adjustment controls
  • Three user-defined presets
  • Remote control of voltage or current (0~5V or pot.)
  • Remote on/off control
  • Automatic cross-over between constant current and constant voltage modes w/LED display!
  • Remote voltage sensing NOT available for SPS-3604
  • Ripple; 5mV RMS (50mV p-p)
  • Load regulation: 50mV @ 10% to 100% load
  • Line regulation; 50mV @ 10%  to 100% load
  • Line regulation; 20mV @ 170V to 264VAC input
  • Variable speed thermostatically controlled fan
  • Current overload (OLP), over-temperature (OTP) and over-voltage (OLP) protection!
  • Short circuit protection by constant current limiting
  • High RFI immunity and
    excellent EMI!
  • Highly efficient, at >86%
  • Electrical performance test report included w/all HCS p/s
  • Colour to be confirmed
  • Size; 200w x 90h x 275d mm (to be confirmed)
  • Weight; 3.7Kg. (to be confirmed)
  • ICAS = Intermittent Commercial and Amateur Service (i.e. 50% duty cycle)
  • *CCS = Continuous Commercial Service (i.e. 100% duty cycle)
  • This regulated power supply is designed and warranted for use only with electronic equipment









ALINCO POWER SUPPLIES

ALINCO HIGH-CURRENT REGULATED POWER SUPPLIES

Alinco factory-authorised factory-direct importer!

 ONE-YEAR FACTORY-BACKED AUSTRALIAN WARRANTY!

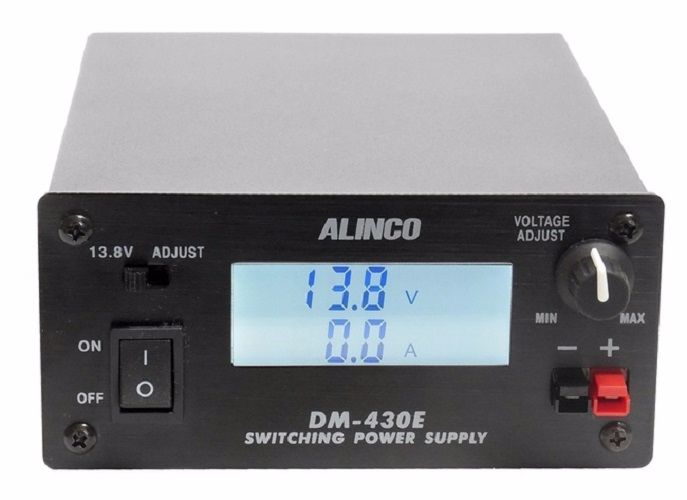

Alinco DM-430E


Ultra-compact and rugged, 30A
peak, regulated power supply

$329 AUD

Plenty in stock!

ONE year warranty on Alinco power supplies and Alinco accessories

Learn More

  • Can be used with almost any 100W RF out. SSB transceiver
  • Front panel voltage adjustment
  • Switchable pre-set 13.8Vdc OR adjustable 5~15Vdc voltage
  • Digital voltmeter & ammeter!
  • Up to 30A peak current
  • Up to 25A  max. current (ICAS)
  • Short circuit, over-temperature and automatic current limiting (over 30A) protection circuits!
  • Rear panel DC screw terminal banana sockets (30A max)
  • Front panel mounted pair of Anderson Power Pole ® clip
    terminals (rated to 30A)
  • Temperature controlled fan forced cooling
  • Switch mode power supply
  • Output voltage regulation <2%
  • <80mV p-p ripple @ rated load
  • Weighs 1.6kg.
  • Size; 125w x 60h x 160d mm
  • This regulated power supply is designed and warranted for use only with electronic equipment





Alinco DM-330FXE


Compact 25A average, 30A peak, 9~15Vdc regulated power supply

 $349 AUD

Plenty in stock!

ONE year warranty on Alinco power supplies and Alinco accessories

Click "Learn More" link below for
DM-330FX pdf brochure (769.1K)


Learn More

  • Can be used with almost any 100W RF output HF transceiver
  • Front panel voltage adjustment
  • Customer-set voltage memory
  • Switchable and illuminated voltmeter/ammeter
  • Short circuit, over-temperature and automatic current limiting (over 30A) protection circuits!
  • Rear panel DC screw terminal banana sockets (30A max)
  • Cigarette lighter socket (10A)
  • 2 pairs of clip terminals (5A)
  • USB port (2A max.). May not charge some cellular phones
  • Tuneable Noise Offset Circuit
  • Switch mode power supply
  • <50mV p-p ripple @ rated load
  • Weighs 2.5kg.
  • Size; 190w x 69h x 181d mm
  • This regulated power supply is designed and warranted for use only with electronic equipment


SHIPPING NOTES

Insurance cover for goods in transit is available from us for only $2 per $100 value of goods. Please advise us if you require this option when ordering.

Please consider insurance because we are not responsible for loss of parcels or damage sustained by parcels - the carrier is responsible! We do pack well!

Please do NOT write <fragile> on anything you send to us as doing so greatly increases the risk of damage. Please try to "double-box" all items sent to us.

IMPORTING NOTES

Andrews Communications Systems is a Manson factory fully authorised and supported importer/distributor.
Parallel importing competitors have NO direct factory support!

We believe Manson produces the world's best power supplies at most reasonable prices!

POWER SUPPLY USEAGE

ALL regulated power supplies we sell are NOT designed, manufactured, warranted or suitable for use in industrial, commercial or scientific applications and are only rated to ICAS (Intermittent Commercial and Amateur Service) operation duty cycle, which is generally regarded as operating at 50% duty cycle. They are NOT rated to CCS (Continuous Commercial Service), operating duty cycle, which is regarded as operating at 100% duty cycle. Warranty will be void when any of the regulated power supplies we sell have been deemed to have been operated in CCS mode, as they are not designed, manufactured, warranted or suitable for use in CCS mode. Therefore, any repairs may be performed on a chargeable basis,
if they're accepted for repair!


WARRANTY NOTES

ALL regulated power supplies we sell are not designed, manufactured, warranted or suitable for operation with any electric motors, or for charging anything or for electroplating,
or for welding, etc.
Such usage is outside all
warranty conditions and
prescribed power supply
operating parameters!


Back e.m.f. and voltage transients generated by electric motors often damages regulated power supplies!
Short circuits often damage or not allow regulated supplies to switch on.
Warranty will be void if regulated
power supplies are damaged due to
being subjected to such conditions.

Customer-caused or environment-caused damage is not covered by
any warranty. Warranty cover is NOT insurance cover.

ALL regulated power supplies we sell are designed for use with electronic equipment only and are not designed, manufactured, warranted or intended for use with any electrical equipment!
ALL power supplies we sell are NOT battery chargers and are not designed manufactured, warranted or suitable for use as battery chargers!!

Power supplies should never be connected in parallel or in series without precautions being taken!
Corrosion damage caused by an adverse environment or improper operating conditions will not be rectified under warranty conditions
and warranty will be void.

Warranty does NOT cover removal or substitution of parts, modifying or customer-caused damage, or altering power supplies in any way or form
from their original manufacture.

We don't offer a replacement
warranty on any product.

************************

A sales receipt copy must accompany each warranty claim.

Please i
nclude your name, address, email address and phone number.



DC adaptors, AC-DC plug packs and chargers

Most models are in stock!
Type Price $(AUD)
Arista CAP-800R Regulated switch-mode cigarette lighter adaptor accepts 11 to 30VDC input. Output is 3/4.5/6/7.5/9/12VDC @ 800mA $24.00
GME PSA-123 3A average/4A peak 13.8Vdc regulated power supply $119.00
Powertech MP3310 Regulated switch-mode universal plug-pack. Has 7 tips. 3V/4.5V/5V/6V (to 1A). 7.5/9/12Vdc @ <1A. Max. power 7.2W. $25.00
Powertech MP3314 Regulated switch-mode universal plug-pack/power supply. Output is 3/4.5/5/6/7.5/9VDC @ 1.5A. Has 7 tips. $39.00
Powertech MP3420 High voltage/current regulated switch-mode plug-pack. 9/12/15Vdc @ 1.5A, 18/20Vdc @ 1.2A, 24Vdc @ 1A $29.00
Powertech MP3492 Regulated switch-mode plug-pack, 15Vdc @ 2A $29.00
Powertech MB3530 240VAC Nicad/NiMH AA wall-pack battery charger $19.00
Powertech MB3536 Ni-MH/Nicad battery charger inc. 4 x 2400mA/h batt $29.00
Powertech MP3038 Regulated switch-mode cigarette lighter adaptor accepts 12 to 24VDC input. Output is 3/4.5/6/7.5/9VDC @ 2A. The 12Vdc output level @ 2A is only available from 24Vdc input. $29.00

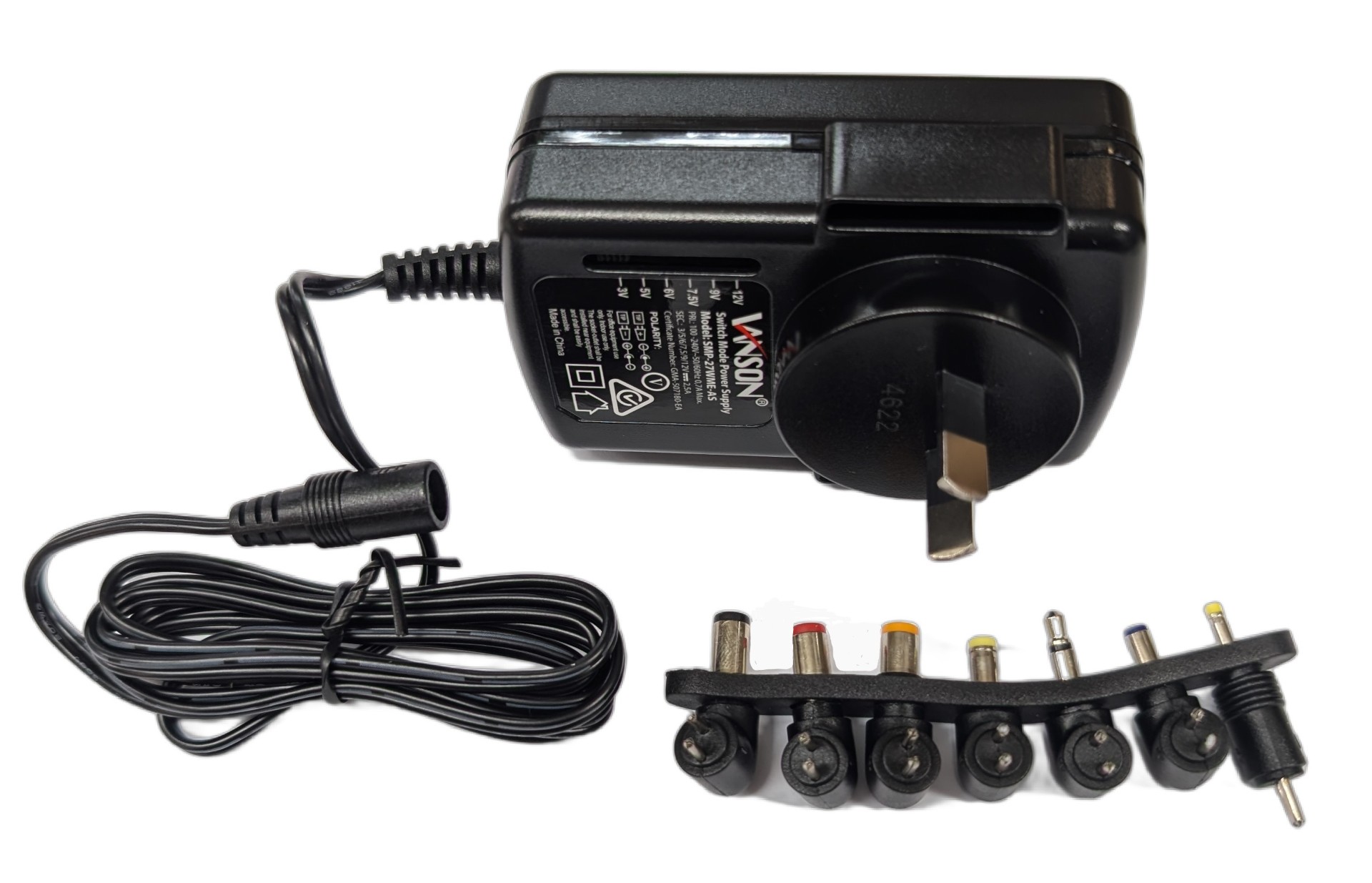

Vanson SMP-500A Universal switchmode regulated plug-pack delivers 3/4.5/5/6Vdc @ 1A then 9/12Vdc @ 500mA. Has 6 tips. $25.00
Vanson SMP-1000A Universal switchmode regulated plug-pack delivers 3/4.5/5/6/7.5/9/12Vdc @ 1A. Has 6 tips. $29.00
Vanson DCR1500 Deluxe regulated cigarette lighter adaptor delivers 1.5/3/4.5/6/7.5/9/12Vdc @ 1.5A. Has 6 tips. $35.00

24VDC to 12VDC regulated voltage converters



CH-510 10A DC-DC converter!

Now only...$49 AUD


Plenty in stock!

24VDC to 12VDC regulated voltage converters


Type Price $(AUD)
Avair CH-510 Palm sized switch mode voltage converter; 10A.
Plenty in stock!
Now $49.00
Avair CH-620 Compact switch mode voltage converter; 20A.
Limited stock!
$79.00
Avair CH-630 Switch mode voltage converter; 30A.
Limited stock
 $99.00
Benelec Model 095410, Switch mode voltage converter; 10A.
Plenty in stock!
$49.00
Electro Parts RD-20, Switch mode voltage converter; 20A.
Limited stock!
$99.00


WARRANTY NOTES

ALL regulated power supplies we sell are not designed, manufactured, warranted or intended for operation
with any electric motors, or for charging anything or
for electroplating, jump-starting vehicles, etc., etc.

Such usage is outside all warranty conditions and
prescribed power supply operating parameters!


Diamond 30A linear/transformer power supply

DIAMOND GSV-3000

Regulated linear/transformer 30A power supply.
Adjustable o/p voltage range of 1~15Vdc

 $P.O.A.
Sold out!

We will announce here if/when we place our
new GSV-3000 order with Diamond in Japan

Learn More

  • 30A (continuous for 8 hours @ 13.8Vdc) / 34A (intermittent rating)
  • DC 1V to 15V voltage adjustment range with detent for 13.8Vdc
  • Dimensions; 250w x 150h x 240d mm. Weight; 9kg.
  • Edge-wise voltmeter and edge-wise ammeter
  • Built-in DC cooling fan is temperature controlled
  • Front panel fitted 30A-rated red and black screw terminals
  • Spring-clip terminals are rated at 6A max.
  • Cigarette lighter socket is front panel fitted
  • Ripple voltage is only 3mV p-p max.
  • Current overload protection commences at 34A
  • Short circuit protection fitted
  • Overvoltage protection and backlighting are not fitted
  • One year Diamond factory backed warranty
  • This regulated power supply is designed and warranted for use
    ONLY with electronic equipment
*******************************************

Diamond 40A switch-mode power supply

***NEW***

DIAMOND GZV-4000

Diamond GZV-4000 40A regulated
switch-mode power supply.


Adjustable output voltage range of 5~15Vdc

$P.O.A.
Sold out!

 We will announce here if/when we place our
new GZV-4000 order with Diamond in Japan


Learn More

  • 40A @ 50% duty cycle for up to 8 hours @ 13.8Vdc (i.e. ICAS)
  • 15A @ 100% duty cycle for up to 8 hours @ 13.8Vdc (i.e. CCS)
  • DC 5V to 15V voltage adjustment range
  • Rear panel fitted 40A-rated large red & black screw terminals
  • Voltage adjustment knob has detent at 13.5Vdc
  • Voltage or current metering selector
  • Current foldback limiting operates at about 42A
  • Short circuit protection
  • Line filter in-built for EMI protection
  • Ripple and noise <8mV rms
  • Efficiency is approximately 80%
  • Dimensions; 210w x 110h x 330d mm. Weight; 3.5kg.
  • Selectable analog voltage and current metering feature
  • Cigarette lighter socket is front panel fitted
  • Built-in DC cooling fan with temperature controlled speed
  • Front panel 8 ohm speaker with rear panel 3.5mm mono socket
  • Power "on" and current overload indicators fitted
  • Overvoltage protection is not fitted
  • One year Diamond factory backed warrant
  • This regulated power supply is designed and warranted for use
    ONLY with electronic equipment




Andrews Communications Systems
Shop 8, 41-51 Bathurst St, Greystanes, NSW 2145
Telephone: (02) 9636 9060, (02) 9688 4301, (02) 9896 8972
