Andrews Communications - Diamond Antennas

GUARANTEED EXCELLENT QUALITY AND HIGH PERFORMANCE!

Factory direct importing from Taiwan and China. Seven thousand sold!
We have received less than 0.3% warranty returns from 7,000+ sold!
Andrews antennas are factory centre-frequency tuned to 50.5MHz (6m), 146MHz (2m) and 435MHz (70cm)...where they cover those bands.

Virtually all Andrews mobile and base 2m-70cm antennas have an swr
characteristic of <2:1 at band edges of 144/148Mhz and 430/440Mhz.

Most Andrews mobile and base 6m-2m-70cm vertical antennas have an swr
characteristic on 6m of <2:1 across 50~51MHz, then >2:1 above 51MHz.
SWR vs. frequency charts for any specific antennas are not available.

SG-7000-ACS 2m/70cm 47cm mobile ant...A$39!

BB2M-ACS 7~30MHz/50MHz mobile ant..A$149

MASSIVE ANDREWS ANTENNAS 468kg SEAFREIGHT SHIPMENT OF 1,100 ANTENNAS, ETC., IN STOCK!!

Please order by phone; 02 9688 4301/9636 9060/9896 8972,
by email; radioandrews@hotmail.com or by mail;
P.O. Box 240, Pendle Hill, NSW, 2145.

Base station verticals installed in high wind speed areas should be guyed.
Please do not overtighten any antenna's grub screws or apply any glue.
Customer is responsible for ensuring antenna grub screws don't loosen.
Please do not fit any clamps or U-bolts to fibreglass antenna sections!
Prices of products which we continue importing are subject to change
without notice or obligation due to recent exchange rate variations.
We despatch Andrews antenna orders daily from our massive stocks!
We must drill out screws that are seized due to over-tightening!
Freighting or mailing of antennas is at an additional cost.
Prices of products currently in stock are confirmed!

Plenty in stock! Guaranteed excellent quality! Fibreglass triband base station verticals - superb quality! X-6000N-ACS 2m/70cm/23cm base station vertical...A$249
Type	Price $(AUD)
GP-15N-ACS 6m/2m/70cm, 3/6.2/8.6dBi gain, 2.4m long. Yes, it has an N-type socket fitted!! Excellent quality! Tuned to best cover 50~51MHz --> for DXing on the 6m band!	$249.00 Plenty in stock!

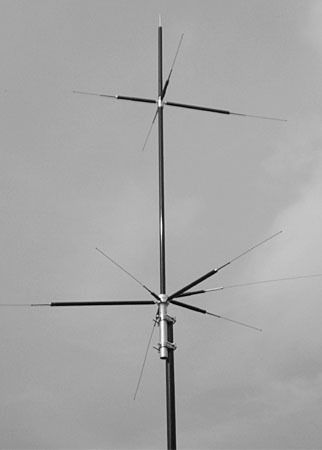

NEW! HVU-8-ACS 8-band base station vertical antenna. Covers 80m (3.5~3.575), 40m (7~7.1MHz), all of 20m, all of 15m, all of 10m, 6m (50~52MHz), 2m and 70cm bands. Is 2.7m long. The HVU-8 should be mounted >1.5m above ground. Tuneable on each band! Plenty in stock!	$499.00 Plenty in stock!
X-6000N-ACS 2m/70cm/23cm, 6.5/9/10dBi gain, 3.05m long. Yes, it has an N-type socket fitted!! New updated model will be available very soon...	$249.00

Plenty in stock! Guaranteed excellent quality! Super-broadband HF~6m, Dualband (2m/70cm) and Triband (6m/2m/70cm) mobile stainless steel whips!! BB2M-ACS super-broadband HF+6m mobile s/s antenna...A$149! *Yes, BB2M-ACS is now on SPECIAL at A$149 each!* *********************************************** ********************************************* SB15-ACS...A$79 6m/2m/70cm mobile antenna...A$79 SB-15-ACS Triband 6m/2m/70cm mobile s/s whip antenna. Plenty in stock! ********************************************* *********************************************** VH-6 tuneable 80m~6m tapped mobile antenna Excellent quality! Tapped fibreglass mobile antenna with stainless steel tuneable whip and plug-in wander-lead. Covers 80-40-20-15-10-6m bands. Handles 120W. Length is 1.29m. Integrated PL-259 plug. VH-6...A$149 Plenty in stock
Type	Price $(AUD)
SBB-1-ACS 2m/70cm 1.5/2.15dB black flexible "rubber ducky" type mobile whip, 41cm long. Plenty in stock!	$39.00 Plenty in stock!
SBB-2-ACS 2m/70cm 2.15/3.8dB black s/s mobile whip, 46cm long. Plenty in stock!	$39.00 Plenty in stock!
SBB-5-ACS 2m/70cm 3/5.5dB black s/s mobile whip, 95cm. Plenty in stock!	$59.00 Plenty in stock!
SBB-7-ACS 2m/70cm 4.5/5.5dB black mobile s/s whip, 1.38m long	$79.00
SB-15-ACS 6m/2m/70cm 2.15/4.5/7.2dB mobile whip, 1.5m long Plenty in stock!	$79.00 Plenty in stock!
BB2M-ACS 7~30MHz & 50MHz super-broadband mobile antenna is 1.5m long and weighs 800g. It has a M-P (PL-259) plug integrated into its base section. Receive range is 3MHz~100MHz. Inbuilt PL-259. Plenty in stock! Please use with an antenna tuner, as SWR is about 2:1 across HF & 6m	$149.00 Please use with an antenna tuner, as swr is around 2:1 across HF & 6m
NR-770R-ACS 2m/70cm 2.15/5.5dB mobile whip, 0.98m (not black). Plenty in stock!	$39.00 Plenty in stock!
NR-770RB-ACS Black 2m/70cm 3/5.5dB mobile whip, 0.98m. Plenty in stock!	$39.00 Plenty in stock!
NR-770HB-ACS Black 2m/70cm 2.15/5.5dB mobile whip, 1.02m. Plenty in stock!	$39.00 Plenty in stock!
NR-770H-ACS 2m/70cm 2.15/5.5dB mobile whip, 1.02m (not black)Plenty in stock!	$39.00 Plenty in stock!
The suffix "H" re NR-series antennas denotes AIRWOUND coil design. NR-770-series antennas are rated to 200W max. combined RF power.	See notes on left re 'NR' antennas
NEW! MA-3800 7~450MHz continuously adjustable portable antenna, 0.5~1.78m long, 130W SSB rated. Black tube, not red! Inbuilt PL-259. MA-3800 is NOT designed or intended for use on a moving vehicle. SOLD OUT Subject to availability. MA-3800 is NOT a mobile antenna. Requires a ground plane or good counterpoise, e.g. long pieces of wire	$129.00 Sold out! HF-VHF-UHF portable antenna

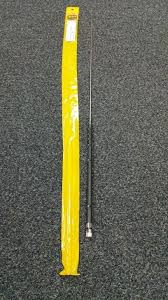

NEW! VH-6 80-40-20-15-10-6m six-band mobile antenna. The top two-thirds (2/3) of the VH-6 comprises a strong and long 2-section (stepped diameter) adjustable length stainless steel whip with hexagonal grub screw fitted. Includes a matching hexagonal key. This whip slides down into a thick (18mm diameter), 40.8cm long, fibreglass base section fitted with band-selectable banana sockets. A matching wander lead fitted with banana plugs is included! VH-6's fibreglass base has an integrated nickel-plated PL-259 plug. Total antenna length is 1.29m. Rated to 120W maximum SSB power. Plenty in stock!	$149.00 Plenty in stock!
(S/S = stainless steel whip sections)

Guaranteed excellent quality! Fibreglass 2m and 2m/70cm base station verticals New ACS X-30N, X-50N, X-200N , X-510N and X700HN! X-510M-ACS 2m/70cm base station vertical antenna...A$249 ACS X-30 & X-30N Dualband verticals...A$79 ea! ACS X-30 & X-30N Dualband antennas...A$79 ea!
Type	Price $(AUD)
F-23-ACS 2m triple-5/8-wave vertical, 7.8dBi, 4.6m tall - excellent! Plenty in stock!	$219.00 Plenty in stock!
X-30M-ACS 2m/70cm 3/5.5dB - like Diamond X-30 - 1.3m - superb!Plenty in stock!	Now $79.00 Plenty in stock!
X-30N-ACS 2m/70cm 3/5.5dB - like Diamond X-30N - 1.3m - superb! Plenty in stock!	Now $79.00 Plenty in stock!
X-50M-ACS 2m/70cm 4.5/7.2dB - like Diamond X-50 - 1.7m - superb! Plenty in stock!	$119.00 Plenty in stock!
X-50N-ACS 2m/70cm 4.5/7.2dB - like Diamond X-50N- 1.7m - superb! Plenty in stock!	$119.00 Plenty in stock!
X-200M-ACS 2m/70cm 6/8dB - like Diamond X-200 - 2.5m - superb! Plenty in stock!	$199.00 Plenty in stock!
X-200N-ACS 2m/70cm 6/8dB-like Diamond X-200N - 2.5m - superb! Plenty in stock!	$199.00 Plenty in stock!
X-300M-ACS 2m/70cm 6.5/9dB - like Diam. X-300 - 3.1m - superb! Plenty in stock!	$219.00 Plenty in stock!
X-300N-ACS 2m/70cm 6.5/9dB - like Diam. X-300 - 3.1m - superb! Plenty in stock!	$219.00 Plenty in stock!
X-510M-ACS 2m/70cm 8.3/11.7dB-like Diam. X-510M- 5.2m - superb! Plenty in stock!	Now $249.00 Plenty in stock!
X-510N-ACS 2m/70cm 8.3/11.7dB-like Diam. X-510N- 5.2m - superb! Plenty in stock!	Now $249.00 Plenty in stock!
NEW! X-700HN-ACS 2m/70cm 9.3/13dB, 7.2m long, 200W, 4-sections, hardened fibreglass, N-socket - like X-700H - superb quality! In stock!	$369.00 In stock!
X-85-ACS 2m band (146MHz centred) fibreglass high gain (8.5dB), 4m long antenna. High quality and very strong (35mm diameter fibreglass tube at ant. base) commercial-radio type base station vertical antenna! Has SO-239 socket. Easy 2-section assembling. Requires double U-bolts for mounting (not included). Base station verticals installed in high wind speed areas must be guyed.	$249.00 In stock!
Base station verticals installed in high wind speed areas must be guyed Please note; M socket is the same as a SO-239 socket and a UHF socket. N socket is, in fact, the combination of a BNC socket and a SO-239.

Plenty in stock! Guaranteed excellent quality! Dualband (2m/70cm) mobile s/s whips! Triband (6m/2m/70cm) mobile s/s whips!! Quadband (10m/6m/2m/70cm) mobile s/s whips!!! SG-7500-ACS 2m/70cm mobile stainless steel (s/s) antenna SG-7400-ACS 2m/70cm mobile s/s antenna now...A$49 ea! SG-7500-ACS 2m/70cm mobile s/s antenna now...A$69 ea!
Type	Price $(AUD)
CR-8900-ACS QUADBAND 10m/6m/2m/70cm, 60W rated, 1.26m long stainless steel (s/s) whip antenna. Gain 2.15dBi 2m/5.5dBi 70cm. Plenty in stock!	$119.00 Plenty in stock!
SG-7000-ACS 2m/70cm 2.15/3.5dB mobile whip, 47cm. Plenty in stock!	Yes, $39.00 Plenty in stock
SG-7100-ACS 2m/70cm 2.15/4.8dB mobile whip, 62cm long. Plenty in stock!	$49.00 Plenty in stock!
SG-7200-ACS 2m/70cm 3.2/5.7dB mobile whip, 96cm long. Plenty in stock!	$49.00 Plenty in stock!
SG-7400-ACS 2m/70cm 2.15/5.5dB mobile whip, 99cm long. Plenty in stock!	Now $49.00 Plenty in stock!
SG-7500-ACS 2m/70cm 3.5/6dB mobile whip, 1.06m long. Plenty in stock!	Now $69.00 Plenty in stock!
SG-7700-ACS 2m/70cm 4.3/6.8dB high gain mobile whip, 1.27m long. Limited stock!	$89.00 Limited stock!
SG-7900-ACS 2m/70cm 5/7.6dB mobile whip, 1.58m long. Highest performing dual-band whip at most reasonable price! Plenty in stock!	$99.00 Plenty in stock!
SG-9700-ACS TRIBAND mobile 6m/2m, 3dBi/70cm 5.8dBi, 1.07m. Plenty in stock!	$119.00 Plenty in stock!
Almost all the dualband, triband and quad band mobile amateur radio V/U whip antennas which are sold around the world have a PL-259/M-plug/UHF-plug integrated into their base section. This allows direct fitting onto a SO-239 base. Please note that very, very few dualband mobile whip antennas sold around the world have a female 5/16" ferrule/socket at their base.
(S/S = stainless steel whip sections)

Plenty in stock! Guaranteed high quality SMA and BNC whips! Dualband and triband handheld whips from only A$19! SRH-771-ACS high performance 2m/70cm whip antenna...A$29 *************************************************** NEW! NEW! NEW! Plenty in stock! FEMALE-socket fitted SRH-F antennas SRH-519-F-ACS , SRH-701-F-ACS & SRH-771-F-ACS** Ideal for many China-made SMA-F handheld transceivers!! Yes, no SMA-F to SMA-F "double female" type joiners are needed, hi!
Type	Price $(AUD)
Rocket Brand (JA) Triband 6m-2m-70cm SMA h/h whip, 14.5cm long. Limited or no stock	$19.00
SRH-519-ACS 2m/70cm SMA handheld whip, 21cm long. Fits transceivers which have a "female SMA" antenna socket. Plenty in stock!	$29.00 In stock!
SRH-519-F-ACS Female type 2m/70cm SMA h/h whip, 21cm long. Fits "MALE SMA" antenna socket China-made transceivers! Plenty in stock!	New $39.00 In stock!
SRH-701-ACS 2m/70cm SMA handheld whip, 21cm long. Fits transceivers which have a "female SMA" antenna socket. Plenty in stock!	$19.00 In stock!
SRH-701-F-ACS Female type 2m/70cm SMA h/h whip, 21cm long. Fits "MALE SMA" antenna socket China-made transceivers! Plenty in stock!	New $29.00 In stock!
SRH-771-ACS 2m/70cm SMA handheld high-gain whip, 39cm long. Also tuned for 120/150/300/450/900MHz bands on receive only! Fits transceivers which have a "female SMA" antenna socket. Plenty in stock!	$29.00 In stock!
SRH-771-F-ACS Female type 2m/70cm SMA handheld high-gain whip, 39cm long. Fits "MALE SMA" antenna socket China-made transceivers! Plenty in stock!	New $39.00 In stock!
SRH-789-ACS 95~1100MHz SMA telescopic handheld whip, 2.15dBi gain 95~300MHz, 3.2dB gain 300~1100MHz, 80.5~19.5cm, 6-sections. Fits transceivers which have a "female SMA" antenna socket. Plenty in stock!	$49.00 In stock!
SRH-805S-ACS 2m/70 SMA mini-stubby handheld whip, 4.5cm long. Fits transceivers which have a "female SMA" antenna socket. Plenty in stock!	$29.00 In stock!
SRH-940-ACS 6m/2m/70cm triband SMA handheld whip, 45cm long. Fits transceivers which have a "female SMA" antenna socket. Plenty in stock!	$39.00 In stock!
RH-701-ACS 2m/70cm BNC handheld whip, 21cm long. Fits transceivers which have a "female BNC antenna socket". Plenty in stock!	$19.00 In stock!
RH-771-ACS 2m/70cm BNC handheld whip, 39cm long. Fits transceivers which have a "female BNC antenna socket". Plenty in stock!	$29.00 In stock!

Discone antenna, extension speaker and mobile bracket D-130-ACS discone...A$149 ES-08 extension speaker with switchable noise filtering...A$29. Features switchable noise filtering, volume control, mounting bracket, 1.8m long speaker lead & 3.5mm phono plug! Plenty in stock!
Type	Price $(AUD)
D130-ACS Discone antenna, 25~1300MHz receiving range, SO-239 fitted, 1.7m high. Transmittable across 50, 144, 430, (904) & 1296MHz. Plenty in stock!	$149.00 Plenty in stock!
NEW! ES-08 Extension speaker with switchable noise filter! Speaker is 3"/75mm dia., 8 ohms, 3W rated. Case size; 112w x 92h x 43d mm. Includes mounting bracket, 1.8m speaker lead and 3.5mm mono plug. Plenty in stock!	New! $29.00 Plenty in stock!
ES-10 Extension speaker with lead and 3.5mm mono plug (Avair) Limited or no stock!	$19.00
EM-B80 Mobile mounting bracket (Maldol) Limited or no stock!	$29.00

Plenty in stock! Guaranteed excellent quality! 2-position & 3-position antenna switches & diplexer
*NEW MODEL* Andrews CO-201A 2-position SO-239 low-loss antenna switch covers DC~600MHz $79.00 AUD Plenty in stock! DC-500MHz has only 0.05dB loss and excellent -70dB port-to-port isolation 500MHz to 600MHz has only 0.1dB loss and excellent -60dB port-to-port isolation Maximum RF power ratings; DC-30MHz 1kW, 30MHz-200MHz 800W and 200MHz-600MHz 400W Three SO-239 sockets fitted	*NEW MODEL* Andrews CO-201N 2-position N-type low-loss antenna switch covers DC~600MHz $89.00 AUD Plenty in stock! DC-500MHz has only 0.05dB loss and excellent -70dB port-to-port isolation 500MHz to 600MHz has only 0.1dB loss and excellent -60dB port-to-port isolation Maximum RF power ratings; DC-30MHz 1kW, 30MHz-200MHz 800W and 200MHz-600MHz 400W Three N-type sockets fitted
*NEW MODEL* Andrews CO-301A 3-position low-loss SO-239 antenna switch covers DC~800MHz A$119.00 AUD Plenty in stock! DC-500MHz has only 0.1dB loss and excellent -70dB port-to-port isolation 500MHz to 1GHz has only 0.15dB loss and excellent -60dB port-to-port isolation Maximum RF power ratings; DC-30MHz 1.5kW, 30MHz-200MHz 1kW, 200MHz-500MHz 500W and 500MHz-800MHz 250W Four SO-239 sockets fitted	MX-72-ACS Diplexer $69.00 AUD Plenty in stock! HF/VHF port covers; 1.6-30MHz (1kW SSB maximum)/140-150MHz (400W SSB maximum). UHF port covers; 400-460MHz (250W SSB rated).
WE HAVE MORE AMATEUR RADIO ACCESSORIES LISTED ON OUR AMATEUR RADIO/AVAIR PAGE...	SHIPPING NOTES Insurance cover for goods in transit is available from us for only $2 per $100 value of goods. Please advise us if you require this option when ordering. Please consider insurance because we are not responsible for loss of parcels or damage sustained by parcels - the carrier is responsible! We do pack well! Please do NOT write <fragile> on anything you send to us as doing so greatly increases the risk of damage. Please try to "double-box" all products sent to us.

SMA coaxial plug/socket adaptors Gold-plated SMA-M plug to SO-239 socket adaptor...A$19 each SMA-M (front) to BNC-F (rear) black aluminium antenna adaptor...$5 AUD each! Yes, only A$5 each! Will screw onto flat-surface mounted SMA-F sockets such as on many Yaesu, Icom, Alinco, etc. handheld radios
Type	Price $(AUD)
SMA-M male plug (at front of adaptor) to BNC-F female socket (rear) BLACK aluminium antenna adaptor with rubber seal. Will screw onto flat-surface mounted SMA-F female sockets (e.g. many Yaesu, Icom, Alinco., etc., handheld radios)... Plenty in stock!	Only $5.00 ea. Yes, A$5 ea.! Plenty in stock!
SMA-M male plug (at front of adaptor) to BNC socket (rear) nickel plated metal antenna adaptor Plenty in stock!	$15.00 ea. Plenty in stock!
SMA-F socket (at front of adaptor) to BNC socket (rear) adaptors, for use with China-made handheld transceivers which, in most instances, have a male SMA chassis-mounted antenna socket fitted.	$15.00 ea.
SMA-M gold-plated plug (at front) to SO-239 socket (rear) adaptor. This adaptor is shown in above photo	$19.00 ea.
SMA-F socket (at front) to SO-239 socket (rear) adaptor, for use with China-made handheld transceivers which, in most instances, have a male SMA chassis-mounted antenna socket fitted.	$19.00 ea.
Double male SMA-M to SMA-M gold plated joiner. Has SMA-M plug at front and also a SMA-M plug at rear.	$12.00 ea.
Double female SMA-F to SMA-F gold plated joiner. Has SMA-F socket at front and also a SMA-F socket at rear.	$12.00 ea.
Limited stock of some above adaptors

Lightning arrestors
Type	Price $(AUD)
CA-35R-ACS Lightning arrestor - similar to Diamond CA-35R. Plenty in stock!	$39.00 Plenty in stock!

Antenna mounting brackets & base/lead assembly Plenty in stock! Guaranteed excellent quality! MB-400S boot/edge mount bracket...A$29 High quality 60mm wide, 2-axis adjustable, edge mount. Will slide onto a flat metal edge up to 3mm thick. MB-TRW boot/edge mount...A$25 A strong nickel-plated steel mounting bracket with two grub screws and protective rubber inserts underneath. MC-5MB package...A$59 SO-239 base/lead/PL-259 assembly. Plenty in stock!
Type	Price $(AUD)
Gutter-Grip moulded bracket, chromed, similar to Benelec 02726A Plenty in stock!	$20.00 Plenty in stock!
MB-400S Black boot/edge mount. Angle adjustable in two axes, 60mm wide base. Can slide onto flat metal surface up to 3mm thick. Plenty in stock!	$29.00 Plenty in stock!
MB-TRW Boot/edge mount, chromed, low profile, has rubber feet Plenty in stock!	$25.00 Plenty in stock!
MC-5MB assembly. SO-239 side-entry base fitted with 5m of 5D-FB low-loss coax, 30cm long "tail" of RG-188A/U and removable PL-259. Plenty in stock!	$59.00 Plenty in stock!
KEP-52KK speaker-mic	$49.00

Andrews all-black 477MHz UHF CB 7.5dBi mobile antenna
Type	Price $(AUD)
Black elevated feed tube with black fibreglass whip and 3.7m of RG-58 with FME connector and PL-259 adaptor. Length 1.28m. Has 7.5dBi gain	$129.00

Andrews UHF 477MHz CB + AM 27MHz CB complete DUALBAND mobile antenna packages are currently unavailable. We will list them here when available...
Type	Price $(AUD)

Mobile UHF CB mobile whips Made in Australia specially for Andrews Communications
Type	Price $(AUD)
Andrews black fibreglass, 5/16" ferrule, 4.5db gain (1 coil), 62cm long	$19.00
Andrews stainless steel, 5/16" ferrule 4.5db gain (1 coil), 62cm long	$19.00

Andrews amateur antennas
