Antenna Accessories, Cables, Baluns, Connectors, RF & DC Adaptors
|
New! High-quality 300Ω (2.5kW) and 450Ω (3kW) stranded copper ladder line now $5m/$7m each! In stock! |
|
W2AU 1:1 voltage baluns...A$169 ea.
W2AU & W2DU baluns are rated to
2kW SSB RF
MFJ-913 4:1 current balun covers 1.8MHz to MFJ-918 1:1 current balun covers
1.8MHz *******************************
RADIOWAVZ BALUNS RADIOWAVZ --> 9:1 current isolation balun...A$169. Radiowavz
model B14CA 4:1 balun...A$169. Radiowavz
model B14CF 4:1 balun...A$169. *******************************
******************************* Plenty of most coaxial cables, plugs, etc., in stock!
Silver-plated PL-259 plug (teflon) with RG-8X reducer...A$12 each. NOTES
Listed prices
below are subject to confirmation.
M plug = PL-259 plug = UHF
plug.
M socket = SO-239 socket =
UHF socket. *************************************************
Powerwerx 6-pin rectangular DC socket to *************************************************
Powerwerx 6-pin rectangular socket kit. *************************************************
Please order by phone; 02 9688 4301/9636 9060/9896 8972,
|
|
| Type | Price $(AUD) |
| MOST ANTENNA ACCESSORIES LISTED ARE IN STOCK... | |

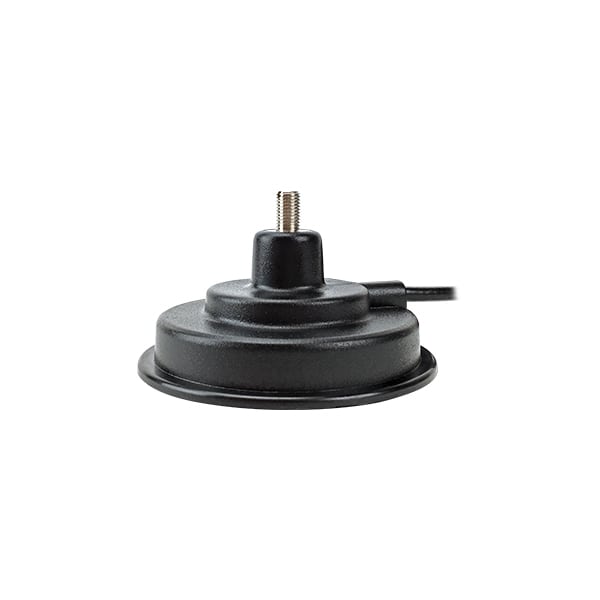

| Antenna base for vehicles. Has 5/16" brass
thread, black cone.
|
$15.00 ea. |
| Antenna base for mobile and base. Side entry,
SO-239 socket.
|
$19.00 ea. |
| Assorted coax cable adaptors (CB types) | from $5.00 ea. |

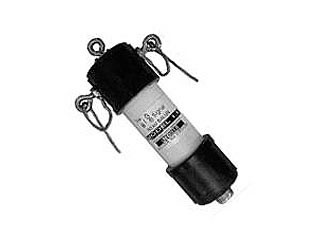

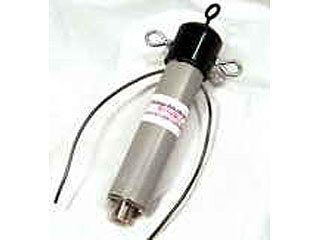

| Balun, Unadilla/W2AU, 1:1, 2kW SSB p.e.p. rated, 1.8-40MHz | $169.00 ea. Plenty in stock! |
| Balun, Unadilla/W2AU, 4:1, 2kW SSB p.e.p. rated, 1.8-40MHz | $169.00 ea. Sold out! |

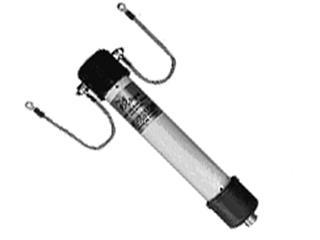

| Balun, Unadilla/W2DU CURRENT BALUN, 1:1, 5kW SSB, 1.8-30MHz | $169.00 ea. Sold out! |
| BNC plugs or BNC in-line sockets for RG-58 | $12.00 ea. |
| BNC plug for RG-213 | $20.00 ea. |
| BNC T-connector or BNC right angle adaptor | $15.00 ea. |
| BNC plug (at front of adaptor) to SO-239 socket (at rear) adaptor | $15.00 ea. |
| BNC plug (at front) to N-type socket (at rear) adaptor | $15.00 ea. |
| BNC socket to BNC socket double female joiner/adaptor | $15.00 ea. |

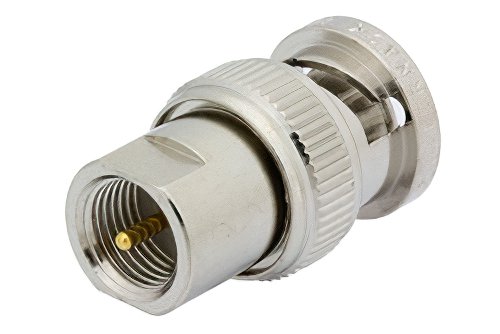

| BNC plug (at front of adaptor) to FME plug (at rear) adaptor
|
$15.00 ea. |
| BNC plug (at front of adaptor) to RCA socket (at rear) adaptor | $12.00 ea. |
| BNC plug (at front of adaptor) to SMA socket (at rear) | $15.00 ea. |
| BNC plug (at front of adaptor) to BNC plug (at rear) joiner | $12.00 ea. |
| Coax cable, RG-58C/U high grade coax cable (per meter) | $2/m |
| Coax cable, RG-58C/U high grade coax cable (100m roll) | $179.00 |
| Coax cable, RG-213/U low loss coax cable (p/m) | $5/m |
| Coax cable, RG-213/U low loss coax cable (100m roll) | $449.00 |
| Coax cable, RG-213/ALL air spaced low loss coax cable (p/m) | $7/m |
| Coax cable, RG-213/ALL air spaced low loss coax cable (100m roll) | $650.00 |
| Coax cable, LMR-400 low loss, by A.P.I. | $7 per metre |
| EGG style insulators, black, plastic, 35w x
25h x25d mm. Suitable for dipoles and long wire antennas, etc.
|
$2.00 ea. PLENTY in stock! Shipment here! |
| EGG style insulators. HEAVY DUTY WHITE PORCELIN
type! Size; 60w x 35h x 35d mm. Rated to 150kg. strain and accepts up to 3mm diameter of actual wire (plus normal thickness of insulation). Suitable for L-O-N-G and/or heavy dipoles & long wire antennas, etc.
|
$4.00 ea. PLENTY in stock! Shipment here! |
| FME adaptors and plugs are in stock! | Contact us... |
| FME plug (at rear of adaptor) to UHF/PL-259 plug (at front) adaptor | $12.00 |
| HELIAX LDF4-50A Extra low loss coax cable in 100m or
greater lengths. Please place your order |
$9.00/metre (if in 100m roll) |
| HELIAX LDF4-50A (1/2" dia.) Extra low loss coax cable in less
than
100m lengths. Please place your order |
$10.00/metre (<100m roll) |
| HELIAX LDF4-50A (1/2" dia.) N-plugs
(L4TNM) or N-sockets
(L4TFM) Please place your order |
$49.00 ea. |
| HELIAX AVA-550 (7/8" dia.) New super low loss
coax cable in less than 100m lengths. This new cable design replaces
LDF5-50A. Please place your order Note; due to different ribbing, original LDF5-50A connectors may not fit AVA-550 securely. |
$18.00 p/metre NEW! |
| Heliax AVA-550 N-plugs or N-sockets Please place your order |
$59.00 ea. |
LADDER LINE ---> 300 Ω impedance Impedance = 300 ohms, LOW LOSS! Two multi-stranded 18AWG/1.02mm parallel copper wires. Black insulation in a strong, low weight, rectangular "window" appearance design. Easily handles 2.5kW RF! Vf (velocity factor) =0.88. Ladder line overall width = 11.1mm (7/16"). Type DXE-LL300
|
Now $5.00/m Air-courier shipment here! YES, 300-ohm ladder line is in stock! |
LADDER LINE ---> 450 Ω impedance Impedance = 450 ohms. LOW LOSS! Two multi-stranded 16AWG/1.29mm parallel copper wires. Black insulation in a strong, low weight, rectangular "window" appearance design. Easily handles 3kW RF! Vf (velocity factor) =0.91. Ladder line overall width = 23.8mm (15/16"). Type DXE-LL450
|
Now $7.00/m Air-courier shipment here! YES, 450-ohm ladder line is in
stock! |
| Mobile One PL-259 (front) to 5/16" brass thread antenna adaptors | $29.00 ea. |
| N-type plug (at front of adaptor) to BNC socket (at rear) adaptors - Benelec brand | $20.00 ea. |
| N-type plug (at front of adaptor) to SO-239 socket (at rear) adaptor - Benelec brand [AO3] | $20.00 ea. |
| N-type plug to N-type plug double male joiners | $15.00 ea. |
| N-type socket to N-type socket double FEMALE joiners | $15.00 ea. |
| N-type right angle adaptors (male plug at one end - female socket at the other end) | $20.00 ea. |
| N-type T-connectors (2F-1M) | $20.00 ea. |
| N-type male plug to PL-259 male plug, 1 pc.
adaptor Photo illustrates both front and rear of adaptor. Price is for ONE adaptor only.
|
$20.00 each adaptor |
| N-type plug to SMA-M plug coaxial
cable assembly. Plugs fitted to 1.5m of LL195 coaxial cable
More special coaxial cable assemblies complete with fitted connectors are available. Contact us for details! |
$29.00 ea. In stock! More coaxial special cable
assemblies complete with fitted connectors are available. |
| PLA. PL-259 to 5/16" brass thread ferrule, adaptor. Has nickel plated brass PL-259 collar with Delrin insulation for greatly increased strength, compared to Delrin-only moulding.
|
$29.00 ea. Plenty in stock
|
| PL-259 Silver-plated with Teflon® insulation for RG-213 coax. Includes silver-plated screw-in reducer (to RG-58) | |
| PL-259 type "T" adaptors (1 x PL-259 common + 2 x SO-239 sockets) | $20.00 ea. |

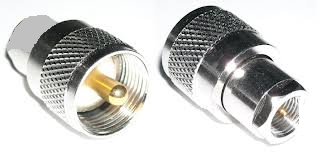

| PL-259 plug (at front of adaptor) to FME plug (at rear) adaptors. Price is for one adaptor only.
|
$15.00 ea. |
| PL-259 plug to PL-259 plug double male joiners | $15.00 ea. |
| PL-259 plug (at front of adaptor) to SO-239 (at rear) 90˚ right angle adaptors | $15.00 ea. |
| PL-259 plug (at front of adaptor) to BNC-F socket (at rear) adaptor | $15.00 ea. |

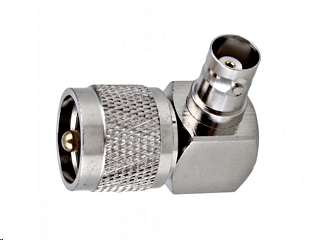

| PL-259 plug (at front of adaptor) to BNC-F socket (at rear)
90˚
RIGHT ANGLE adaptor! In stock most of the time. A very convenient adaptor for FT-817/ND & FT-818ND transceivers... Specially imported by us. Model UHF-16-DGN
|
Now $19.00 ea. Plenty in stock |
| PL-259 plug (at front) to N-type socket (at rear) adaptor [AO4] | $15.00 ea. |
| PL-259 plugs for RG-58 or RG-213 (CB type, Delrin insulation) | $5.00 ea. |
| PL-259 plugs to suit RG-213. Includes screw-in reducer to also accept RG-58 coax cable (simple type, with Delrin insulation) | $8.00 ea. |
| PL-259 plugs for RG-58 or RG-213 (commercial solder/bolt/teflon ins.) | $15.00 ea. |

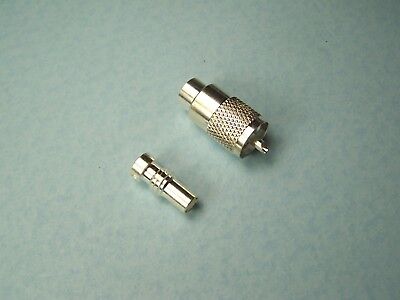

| PL-259 plug with Teflon®
insulation and RG-8X screw-in reducer to also accept RG-58 coax
cable. Both parts are silverplated!
|
$20.00 ea. |
| Radiowavz 9:1 balun. For matching high-Z antennas to 50 ohm coax | $149.00 |
| Side-entry SO-239 base only. Accepts RG-58 coax
cables.
|
$19.00 |
| SO-239 type "T" adaptor (has 3 x SO-239s) | $15.00 ea. |

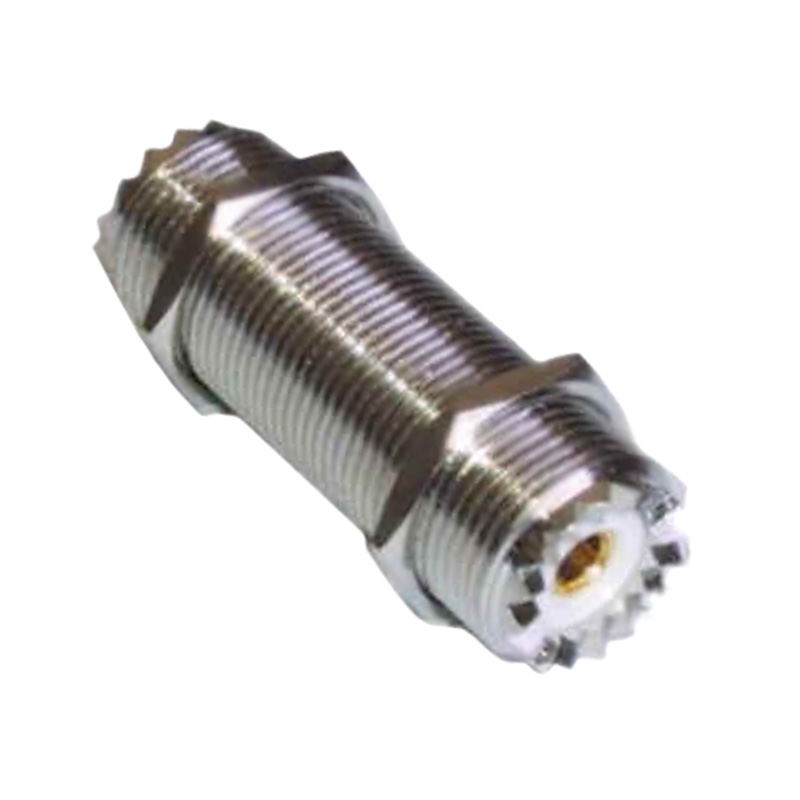

| SO-238 Extra-long double-female (SO-239 at front and
at rear)
barrel type joiner is 47mm (<2") long. Includes two locking nuts
|
$15.00 ea. |
| SO-238 double-female (SO-239 at front and at rear) barrel type joiner | $9.00 ea. |
| SO-239 or N-type chassis mounting sockets | $9.00 ea. |
| SO-239 socket (at rear of adaptor) to 3.5mm mono plug adaptor | $9.00 ea. |

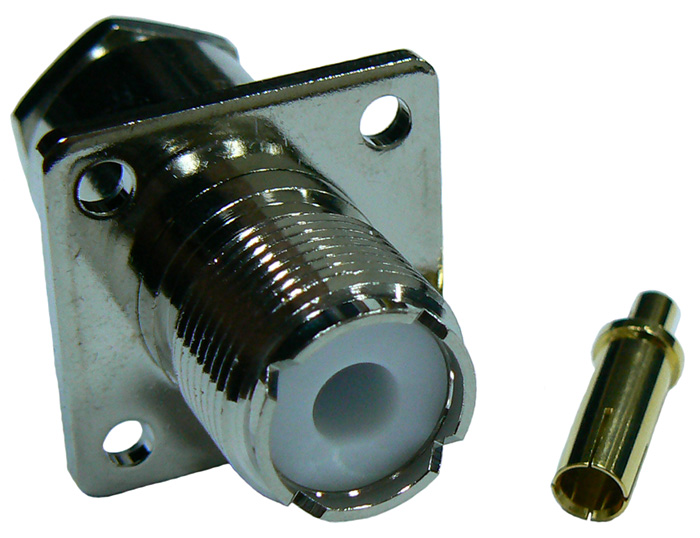

| SO-239 IN-LINE chassis mounting socket with 4-hole
flange! Accepts RG-213 coaxial cable at rear of connector!!
|
Now...$19.00 ea. |
| TNC plug for RG-58 (accepts RG-58 type coaxial cable) | $12.00 ea. |
| TNC plug (at front of adaptor) to BNC (at rear) adaptor | $12.00 ea. |
| TNC plug (at front of adaptor) to SO-239 socket (at rear) adaptor | $12.00 ea. |
| SMA gold plated plug for RG-58 | $12.00 ea. |
|

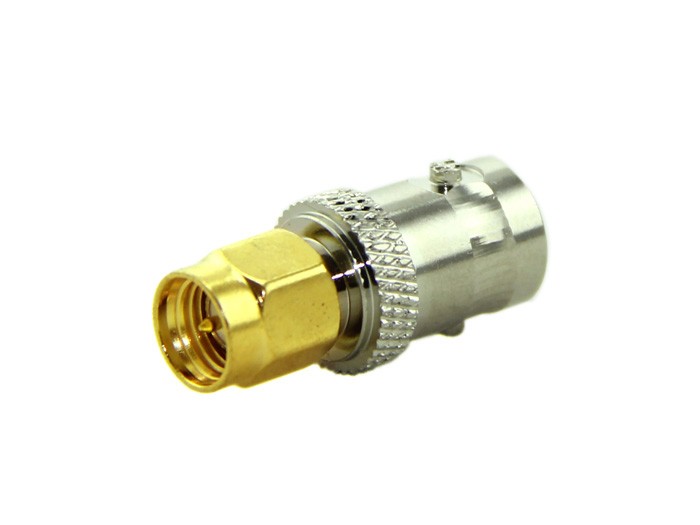

SMA gold-flashed plug (at front of adaptor) to BNC
nickel-plated socket (at rear of adaptor) coaxial adaptor.
|
$15.00 ea. |
| SMA nickel-plated (not gold) plug (at front of adaptor) to BNC nickel-plated socket (at rear of adaptor) coaxial adaptor. | Only...$12.00 ea. |
| SMA socket (at front of adaptor) to SO-239
socket (at rear) adaptor, to suit China handheld transceivers, most
of which are fitted with a chassis mounted socket that has a male
centre pin. This can be called a reverse SMA chassis mounted plug, as the gender of a connector is determined by its centre pin or centre finger stock. |
$20.00 ea. |
| SMA gold-flashed plug (at front of adaptor) to SO-239 socket (at rear) adaptor | $20.00 ea. |
| SMA-M to BNC-F black aluminium antenna adaptor. Has SMA plug (at front of adaptor) and BNC socket (at rear) of adaptor. Will screw onto flat surface mounted SMA-F (female) chassis mounted sockets such as found on Japanese brand handhelds, most of which have SMA-F (female) chassis mounted sockets. E.g. Yaesu, Icom, Alinco, etc., brands. See photo... | $9.00 ea. |
| SMA-F to SMA-F double female joiner. Suits Chinese handhelds which have a SMA-M chassis mounted socket. Not required for KG-UV6D as it has a conventional (Yaesu, Icom, etc.) SMA-F chassis mounted socket | $12.00 ea. |
| SMA-M plug to SO-239 side-entry base assembly, complete with 5m of RG-58C/U coaxial cable | $59 ea. |
| Double male SMA-M to SMA-M gold plated joiner/adaptor.
Has SMA-M plug at front and also SMA-M plug at rear of this adaptor |
$19.00 ea. |
| SMA-M plug to N-type plug coaxial cable
assembly. Plugs fitted to 1.5m of LL195 coaxial cable
More special coaxial cable assemblies complete with fitted connectors are available. Contact us for details! |
$29.00 ea. In stock! More special coaxial cable assemblies complete with fitted connectors are available. Contact us for details! |
| Special coaxial cable adaptors (Commercial grade) | $19.00 ea. |
SPECIAL coaxial cable & connector assemblies Available in various pre-assembled lengths FME male to FME female coax leads. FME male to FME male coax leads. FME female to N-type male coax leads. ******************************* N-type male to N-type male coax leads. N-type male to TNC-RP male coax leads. TNC-RP female to TNC-RP male coax leads. *******************************
SMA-male to N-type male coax leads. SMA-male to SMA-male coax leads. SMA-male to SMA female panel-mount coax leads. SMA-RP female to SMA-RP male coax leads. SMA-RP male to N-type male coax leads. Call us for pricing and availabilities!
|
Call us for pricing and availabilities! |
.jpg)
|
TET-EMTRON TB-41 4:1 BALUN
|
|
| Type | Price $(AUD) |
| TB-41 4:1 Balun. Covers 3~30MHz. Rated to 500W pep SSB RF. | $99.00 Plenty in stock! |
| EB-11 1:1 Balun. Covers 5~30MHz. Rated to 2kW pep SSB RF | $109.00 |
| TB-11 1:1 Balun. Covers 1.8~30MHz. Rated to 500W pep SSB RF | $79 |
| BAL-BRAK. Balun mounting bracket kit has custom
aluminium straps. This adaptable kit allows mounting of several different popular baluns. |
$19.00 |
.jpg)
Instructions for attaching an N-type connector.
