Yaesu amateur radio

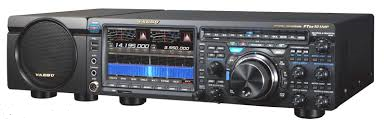

New Yaesu FTDX-101MP high-class
200W HF+6m double-conversion hybrid SDR dual-receive direct IF sampling base station transceiver
with Automatic Antenna Tuner!

Yaesu FTDX-101MP...A$7399

SOLD OUT!

Shipment due soon

Free freight Australia-wide &
3-year warranty, of course!

"Best-ever" receive performance!

FTDX-101MP/FTDX-101D
ranked #1 in receiving
performance by Sherwood Engineering's laboratory
compared to 200+ radios!
See www.sherweng.com

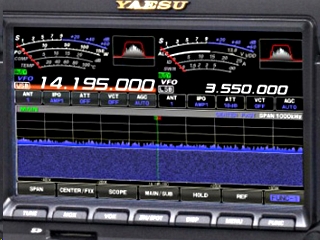

FTDX-101MP display example

Learn More

• 200W RF output SSB/CW/FM and 50W RF output AM
• 160m to 6m on TX (not 60m) in SSB-CW-AM-FM-RTTY-PKT modes
• High-class transceiver with SDR technology and Waterfall display
• Large 7" touch-screen with precision colour display
• Astonishingly superior close-in dynamic range performance compared to virtually all other similar transceivers in the amateur radio world
• Outstanding double-conversion superheterodyne receiver design and
  narrow bandwidth 9MHz IF roofing filter of excellent shape factor before the A/D converter greatly reduces strong signal overload of
  the A/D converter & provides superior rejection of unwanted signals!
• Hybrid SDR design with down-conversion for excellent performance
• 400MHz HRDDS --> High Resolution Direct Digital Synthesiser
• Hybrid SDR with DIRECT SAMPLING & NBW (narrow BW) SDR
• Active Band Monitor enables rapid band changes with LED
  illumination of the operating band. USB ports fitted
• Receives 30kHz to 56MHz. Automatic antenna tuner inbuilt
• Completely independent DUAL RECEIVERS!
• High-Q VC (variable capacitor) tuning front end!
• Waterfall display & 3DSS (3-dimension spectrum streaming!
• Independent control of Main and Sub band for effortless operation
  by the serious contester when moving quickly from band-to band
• High-Q VC (variable capacitor) tuning front-end
• Yaesu's renowned interference reduction system
• 3DSS (3-Dimension Spectrum Streaming) Waterfall Display
• Main tuning dial for Main and Sub band frequency control includes
  an outer dial for clarifier, VC tuning, fine tuning or custom settings
• The FTDX-101 series doesn't have a logging program in itself but
  can be connected to popular logging programs like M1MM or HRD
• AC power supply is integrated into the FPS-101 speaker box
• Transceiver dimensions; 420w x 130h x 322d mm. Weight;13.5kg.

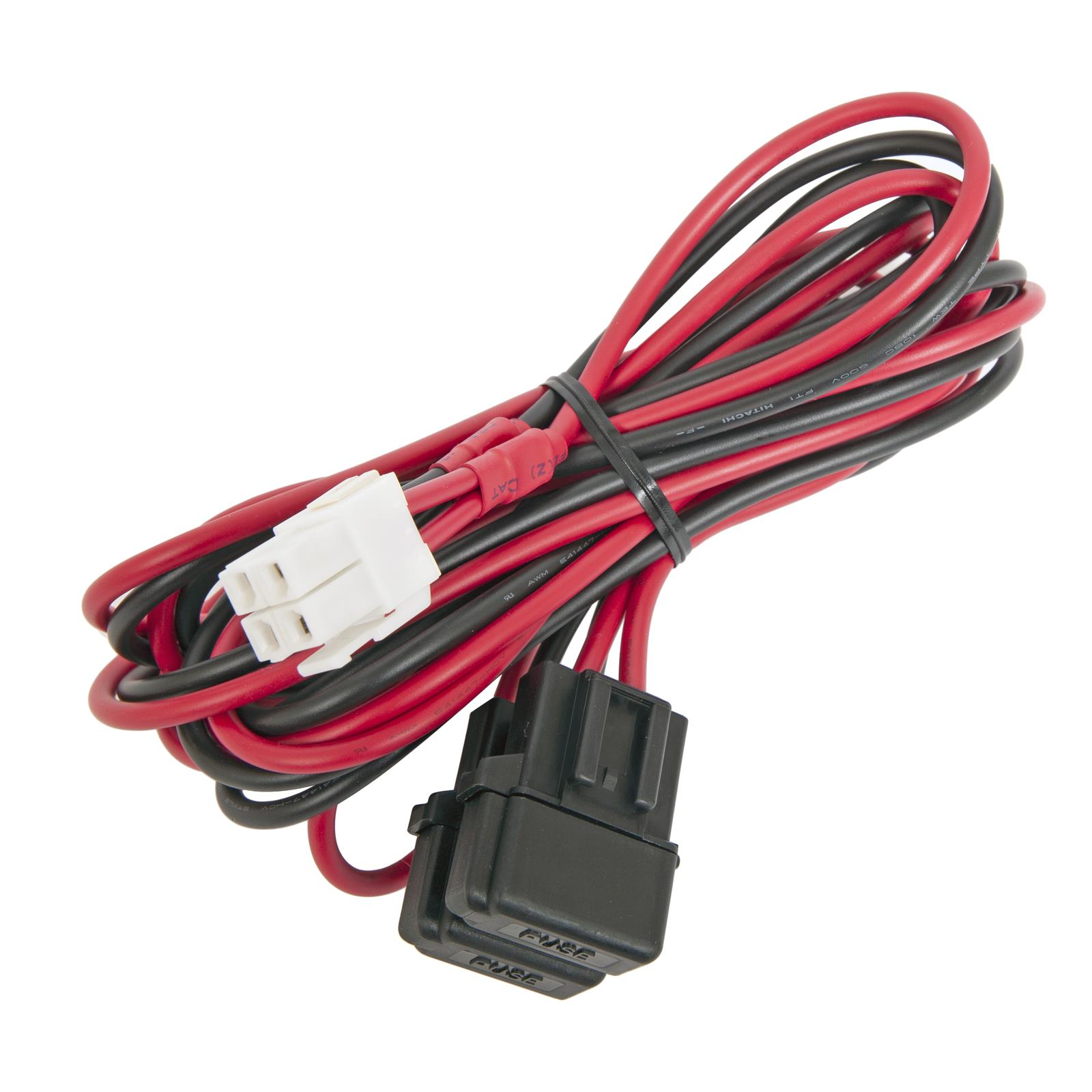

• New FTDX-101MP includes; SSM-75G hand mic, DC power cable
  w/fuse & plug, spare 25A fuse, 6.3mm 3-contact round plug, 3.5mm
  3-contact round plug, 2 x RCA plugs and printed operating manual
• Options are available at extra cost

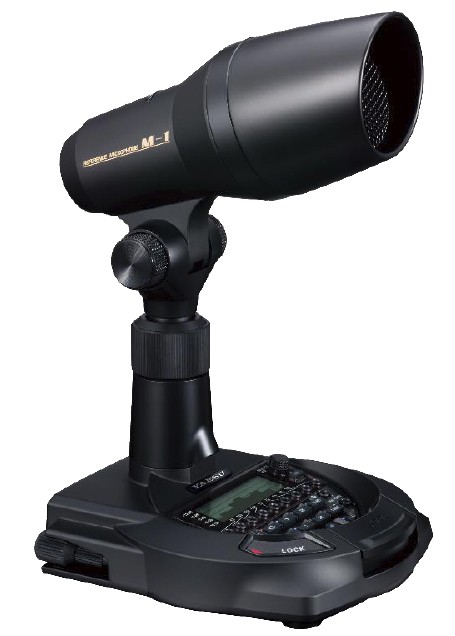

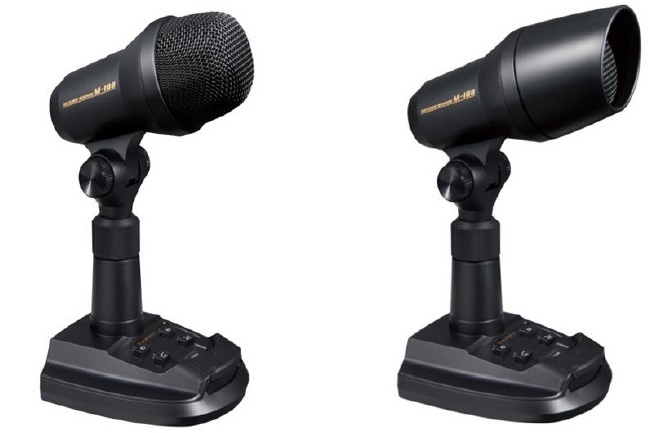

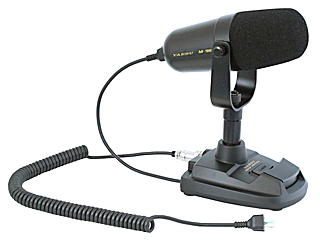

• Options; FH-2 remote keypad, M-1 reference desk mic, M-100
  dual-element desk mic, M-90D desk mic, M-70 desk mic, YH-77STA headphones, SP-101 desktop speaker, VCT-101 (preselector tuning unit for sub-band) and XF-128CN XF-129CN, XF-128SN and
  XF-129SN filters
• The FC-40 automatic long wire antenna tuner is not useable with the FTDX-101MP, as the FC-40 accepts only 100W max. of RF power!
• We highly recommend you option our shipping insurance at 2% of
  the value of the shipment when ordering as we are not responsible
  for loss or damage caused by circumstances beyond our control!!
• We're finding some amateurs are employing antennas with little to
  no ground plane or counterpoise or proper RF earthing. A thin and/or long wire will not provide a low impedance path to ground. Newer, more digitised transceivers are more susceptible to RF intrusion than older, less digitised transceivers. Please check antennas & cables as
  we are receiving more and more radios which have no proven faults.
• Please note that, wherever possible, Yaesu in Japan supplies the
  Australian market with USA-based firmware transceivers which the
  Yaesu factory may re-program for the Australian market. If/when
  you decide to update any Yaesu transceiver's firmware please
  confirm which firmware was originally programmed during original
  manufacture BEFORE you attempt any such firmware updating!

Free freight Australia-wide &
3-year warranty, of course!

SOLD OUT!

Shipment due soon

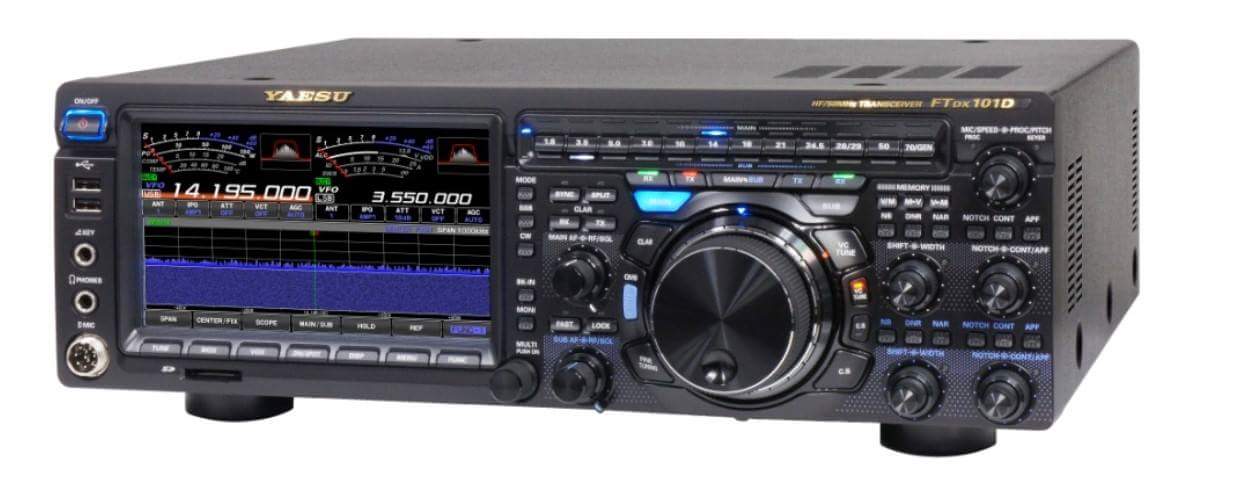

FTDX-101D display example

Learn More

• 100W RF output SSB/CW/FM and 25W RF output AM
• 160m to 6m on TX (not 60m) in SSB-CW-AM-FM-RTTY-PKT modes
• High-class transceiver with SDR technology and Waterfall display
• Large 7" touch-screen with precision colour display
• Astonishingly superior close-in dynamic range performance compared to virtually all other similar transceivers in the amateur radio world
• Outstanding double-conversion superheterodyne receiver design and
  narrow bandwidth 9MHz IF roofing filter of excellent shape factor before the A/D converter greatly reduces strong signal overload of
  the A/D converter & provides superior rejection of unwanted signals!
• Hybrid SDR design with down-conversion for excellent performance
• 400MHz HRDDS --> High Resolution Direct Digital Synthesiser
• Hybrid SDR with DIRECT SAMPLING & NBW (narrow BW) SDR
• Active Band Monitor enables rapid band changes with LED
  illumination of the operating band. USB ports fitted
• Receives 30kHz to 56MHz. Automatic antenna tuner inbuilt
• Completely independent DUAL RECEIVERS!
• High-Q VC (variable capacitor) tuning front end!
• Waterfall display & 3DSS (3-dimension spectrum streaming!
• Independent control of Main and Sub band for effortless operation
  by the serious contester when moving quickly from band-to band
• Yaesu's renowned interference reduction system
• Main tuning dial for Main and Sub band frequency control includes
  an outer dial for clarifier, VC tuning, fine tuning or custom settings
• The FTDX-101 series doesn't have a logging program in itself but
  can be connected to popular logging programs like M1MM or HRD
• Dimensions; 420w x 130h x 322d mm. Weight;12kg.
• New FTDX-101D includes; SSM-75G hand mic, DC power cable
  w/fuse & plug, spare 25A fuse, 6.3mm 3-contact round plug, 3.5mm
  3-contact round plug, 2 x RCA plugs and printed operating manual
• Options are available at extra cost
• Options; FC-40 long wire antenna tuner, FH-2 remote keypad, M-1 reference desk mic, M-100 dual-element desk mic, M-90D desk mic,

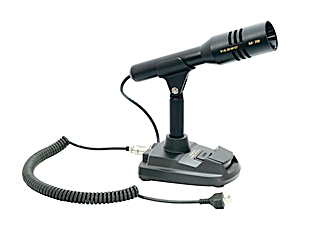

  M-70 desk mic, YH-77STA headphones, SP-101 desktop speaker, VCT-101 (preselector tuning unit for sub-band) and XF-128CN
  XF-129CN, XF-128SN and XF-129SN filters
• Please use a high quality, well regulated & filtered power supply with your new radio. Please don't use low quality, poorly regulated and/or inadequately filtered power supplies of insufficient current rating!
• We're also finding some amateurs are using antennas with little to
  no ground plane or counterpoise or proper RF earthing. A thin and/or long wire will not provide a low impedance path to ground. Newer, more digitised transceivers are more susceptible to RF intrusion than older, less digitised transceivers. Please check antennas & cables as
  we are receiving more and more radios which have no proven faults.
• We highly recommend you option our shipping insurance at 2% of
  the value of the shipment when ordering as we are not responsible
  for loss or damage caused by circumstances beyond our control!!
• Please note that, wherever possible, Yaesu in Japan supplies the
  Australian market with USA-based firmware transceivers which the
  Yaesu factory may re-program for the Australian market. If/when
  you decide to update any Yaesu transceiver's firmware please
  confirm which firmware was originally programmed during original
  manufacture BEFORE you attempt any such firmware updating!
• One year warranty applies to new Alinco power supplies we sell.
• One year warranty applies to new Manson power supplies we sell.

NEW YAESU FTDX-10 HF+6m
double-conversion superhet
direct sampling hybrid SDR
100W transceiver w/ATU!

Yaesu FTDX-10...A$2499

 In stock!

Supplementary shipment due August

Free freight Australia-wide &
3-year warranty, of course!

Ranked #3 in receiving
performance by Sherwood Engineering's laboratory
compared to 200+ radios!
See www.sherweng.com

Free mailing Australia-wide of FTDX-10 colour
brochures. Ask us to mail one to you...

Free freight Australia-wide, too!
Why pay freight elsewhere??

Free freight Australia-wide &
3-year warranty, of course!

Learn More

• 160m~6m (not 60m) 100W RF output hybrid SDR transceiver
• 9MHz down-conversion superheterodyne receiver with IF sampling!
• 5" full-colour touch screen features 3DSS (3D spectrum screen) display, Waterfall display, AF-FFT display and much more...
• Hybrid SDR configuration utilising both narrow band and direct IF sampling SDR circuit designs for tremendous receiving performance
• Narrow band SDR; phenomenal multi-signal receiving characteristics
• 9MHz down conversion IF roofing filters have excellent shape factor
• High 250MHz HRDDS produces ultra-low-noise local oscillator output
• IF shift/width, IF notch/DNF, contour, DNR & APF. SD card slot
• Multi-purpose outer VFO dial for superior operating convenience
• Fifteen (15) individual high performance bandpass filters
• New super-stable 100W output push-pull RD70HUP2 MOSFET (has
  two internal MOSFETs) delivers excellent linearity and low distortion
• High speed automatic antenna tuner with 100-channel memory
• Parametric equalizer (SSB/AM modes) in microphone amplifier
• QMB (Quick Memory Bank) and Band Stack functions
• Multiple CW operation features and RTTY (FSK)/PSK encode/decode

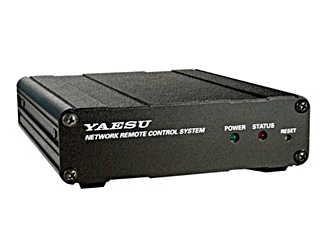

• Remote operation possible via internet with optional SCU-LAN10
• Requires 13.8Vdc @ 20A average current
• Dimensions; 266w x 91h x 263d mm. Weight; 5.9kg
• FTDX-10 includes; SSM-75E hand mic, DC power cable/fuse/plug assembly, spare 25A fuse, 6.3mm 3-contact round plug, world map
  and printed operating manual. *A 10-pin mini-DIN plug isn't included
• Options are available at extra cost.
• New products for FTDX-10 noted by new
• Options; ATAS-25 manual antenna tuning system, ATAS-120A active antenna tuning system, ATBK-100 antenna base for ATAS-120A, CT-39A packet interface cable, FC-40 long wire automatic antenna tuner,
  FH-2 remote control keypad, MHG-1 carry handle, M-1 Reference
  desk mic, M-70 desk mic, M-90D desk mic, M-100 dual-element desk mic, SCU-LAN10 network remote control system w/LAN unit, *SCU-28 10-pin mini-DIN plug with connection cable & bare wires, SP-30 new desktop speaker, SP-2000 desktop speaker, SSM-75E new hand mic (included w/new FTDX-10), XF-130CN new 9MHz roofing filter (300Hz BW for narrow CW receive) and YH-77STA headphones
• Please use a high quality, well regulated & filtered power supply with your new radio. Please don't use low quality, poorly regulated and/or inadequately filtered power supplies of insufficient current rating!
• We're also finding some amateurs are using antennas with little to
  no ground plane or counterpoise or proper RF earthing. A thin and/or long wire will not provide a low impedance path to ground. Newer, more digitised transceivers are more susceptible to RF intrusion than older, less digitised transceivers. Please check antennas & cables as
  we are receiving more and more radios which have no proven faults.
• We highly recommend you option our shipping insurance at 2% of
  the value of the shipment when ordering as we are not responsible
  for loss or damage caused by circumstances beyond our control!!
• Please note that, wherever possible, Yaesu in Japan supplies the
  Australian market with USA-based firmware transceivers which the
  Yaesu factory may re-program for the Australian market. If/when
  you decide to update any Yaesu transceiver's firmware please
  confirm which firmware was originally programmed during original
  manufacture BEFORE you attempt any such firmware updating!
• One year warranty applies to new Manson power supplies we sell.
• One year warranty applies to new Alinco power supplies we sell.

Compare to all other high power all-band all-mode transceivers with inbuilt automatic antenna tuner!

Free freight Australia-wide &
3-year warranty, of course!

Learn More

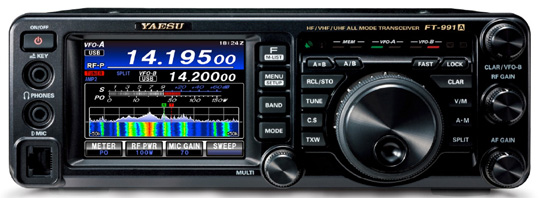

• Modes; USB-LSB-AM-FM-CW-PSK-RTTY-C4FM "System Fusion"
• 100W 160m to 6m bands (no 60m), 50W on 2m and 70cm bands
• High-performance triple conversion superheterodyne receiver with selectable 3kHz and 15kHz roofing filters in the 1st IF stage!
• Receives 0.03~56MHz, 118~164MHz and 420~470MHz
• High speed automatic antenna tuner (100 mem.) 160m~6m bands
• Full colour TFT 3.5" touch-screen display with dynamic real-time spectrum scope and multi-colour waterfall display!
• Digital C4FM System Fusion capable!! Does not support operation of WIRES-X digital mode stations or tx/rx of images via C4FM digital

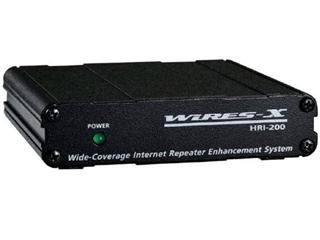

• Yaesu's HRI-200 can only be used in ANALOGUE mode with FT-991A, NOT in digital mode! However, FT-991A can access commonly used WiRES-X features when connected to a node in WiRES-X mode...
• Yaesu's built-in Digital Signal Processing (DSP) allows notch tuning, noise reduction, IF bandwidth, IF shift & IF contour adjustments!
• CW APF, CW message memory and beacon mode
• Four user-customisable function keys. Includes +/-0.5ppm TCXO!
• High-speed 32-bit floating point IF DSP (as in FTDX-series radios)
• SO-239 sockets at both HF/6m and 2m/70cm antenna ports
• Dimensions; 228w x 82h x 236d mm (case size). Weight; 4.3kg.
• Requires 13.8Vdc @ 22A average. Options available at extra cost
• Includes MH-31A8J handmic, DC plug/fuse/cable assembly, spare
  25A fuse and printed operating manual
• Options are available at extra cost
• Options; ATAS-25 portable antenna, ATAS-120A auto tune antenna, ATBK-100, CT-39A, CT-58, FC-40 long wire auto tuner, FH-2, M-1 reference desk mic, M-70 desk mic, M-90D desk mic, M-100
  dual-element desk mic, MD-100A8X desk mic, MD-200A8X deluxe
  desk mic MH-31A8J handmic (included in new radio package),

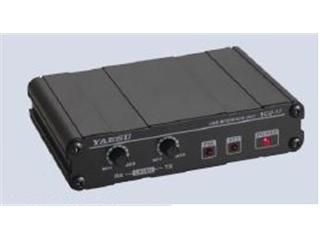

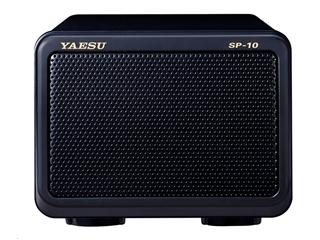

  MH-36E8J mic, MMB-90 bracket, SCU-17 USB interface, SP-10
  external desk-top speaker & YH-77STA lightweight headphones
• Please note that, wherever possible, Yaesu in Japan supplies the
  Australian market with USA-based firmware transceivers which the
  Yaesu factory may re-program for the Australian market. If/when
  you decide to update any Yaesu transceiver's firmware please
  confirm which firmware was originally programmed during original
  manufacture BEFORE you attempt any such firmware updating!
• Note; Yaesu transceivers such as the FT-991A or FT-DX3000 don't require a soundcard modem like the SCU-17. This is because these transceivers are equipped with a USB interface which offers the
  same functionality (i.e. CAT control, audio input/output)! A USB cable can be directly connected between an FT-991A or FT-DX3000 &
  can communicate data & audio between these radios & computer
• Please use a high quality, well regulated & filtered power supply with your new radio. Please don't use low quality, poorly regulated and/or inadequately filtered power supplies of insufficient current rating!
• We highly recommend you option our shipping insurance at 2% of
  the value of the shipment when ordering as we are not responsible
  for loss or damage caused by circumstances beyond our control!!
• Please note that, wherever possible, Yaesu in Japan supplies the
  Australian market with USA-based firmware transceivers which the
  Yaesu factory may re-program for the Australian market. If/when
  you decide to update any Yaesu transceiver's firmware please
  confirm which firmware was originally programmed during original
  manufacture BEFORE you attempt any such firmware updating!
• One year warranty applies to new Manson power supplies we sell.
• One year warranty applies to new Alinco power supplies we sell.

PLENTY IN STOCK!

Supplementary shipment here!

Ranked #4 in receiving
performance by Sherwood Engineering's laboratory
compared to 200+ radios!
See www.sherweng.com

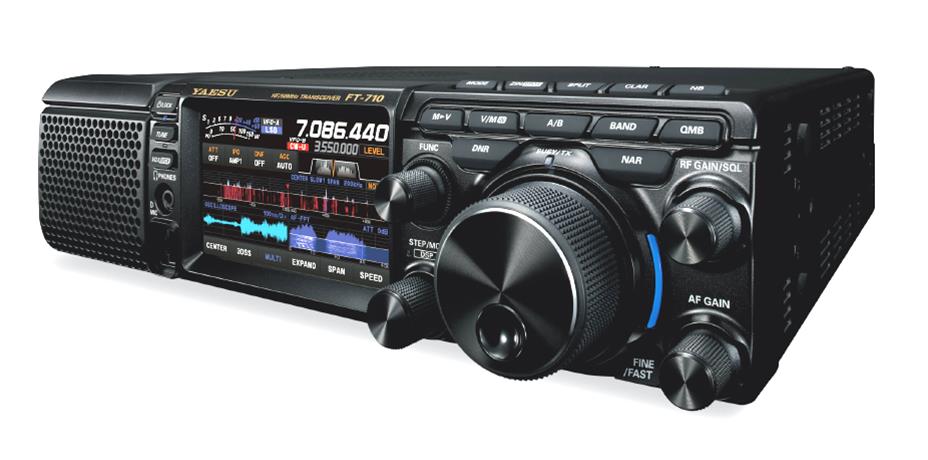

Free mailing Australia-wide of FT-710 colour brochures. Ask us to mail one to you...

Learn More

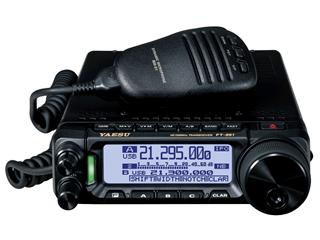

Yaesu FT-891...A$1199

HF+6m 100W remotable
all-mode transceiver

PLENTY IN STOCK!

Supplementary shipment due August

Free freight Australia-wide &
3-year warranty, of course!

Learn More

The Yaesu FT-891 is a new design high performance ultra-compact HF~6m remoteable amateur transceiver with 100 watts of RF output and general coverage receive from 30kHz to 50MHz. Operating modes include USB, LSB, AM, FM and CW. Features include RF attenuator, noise blanker, electronic keyer, backlit LCD display and backlit keys...
Its compact size is similar to that of the world-famous FT-857D!

• 100W RF output SSB/CW/FM and 25W RF output AM
• 160m to 6m on TX (not 60m) in USB-LSB-AM-FM-CW modes
• General coverage receive from 30kHz to 56MHz
• Large dot matrix multi-function display with bar-graph meter and fast spectrum scope!
• Triple conversion receive
• Three programmable front panel function keys
• TCXO (Temperature Controlled Xtal Oscillator); +/-0.5ppm
• Includes 3kHz roofing filter!
• Pop-up menu for easy selection
• Multi-function knob operation
• Digital Noise Reduction (DNR)
• Digital Notch Filtering (DNF)
• CONTOUR and APF included!
• IF DSP (32-bit float. point IC)
• Electronic keyer (4~60 wpm) with full break-in!
• USB connector fitted for CAT control & PTT/RTTY control
• Two thermostatically-controlled cooling fans & diecast chassis
• Note that LSB is automatically set below 9MHz and USB is automatically set above 9MHz. To select the opposite sideband, go into MODE SSB in the menu, select menu item
  11-07 (SSB BFO) and choose either USB or LSB mode.
• Size; 155w x 52h x 218d mm.
• Weight; approximately 1.9 kg.
• Requires 13.8Vdc @ 23A average current
• Includes MH-31A8J handmic, MMB-82 mobile mounting bracket, 20A
  DC cable/fuse/plug assembly, spare fuse & printed operating manual
• Options are available at extra cost
• Options; ATAS-25 portable antenna, ATAS-120A auto tuning antenna system, ATBK-100, CT-39A packet interface cable,  FC-40 long-wire auto tuner, FH-2 keypad, M-1 reference desk mic, M-70 desk mic,
  M-90D desk mic, M-100 dual-element desk mic, MD-100A8X desk mic, MD-200A8X desk mics, MH-31A8J handmic (included w/new FT-891)MH-36E8J DTMF handmic, MLS-100 ext. speaker, MMB-82 mobile mounting bracket, SCU-17 USB interface, YH-77STA stereo headphones and YSK-891 separation kit
• Note; Yaesu transceivers such as the FT-891, FT-991A or
  FT-DX3000 don't require a soundcard modem, such as the SCU-17.
  This is because these transceivers are equipped with a USB interface which offers the same functionality, i.e. CAT control, audio input/output (except when operating an FT-891). A USB cable can
  be directly connected between an FT-891, FT-991A or FT-DX3000
  and can communicate data and audio between these radios and a computer. However, the FT-891 also requires a separate AUDIO connection, such as when using JT65 mode!
• Please use a high quality, well regulated & filtered power supply with your new radio. Please don't use low quality, poorly regulated and/or inadequately filtered power supplies of insufficient current rating!
• We highly recommend you option our shipping insurance at 2% of
  the value of the shipment when ordering as we are not responsible
  for loss or damage caused by circumstances beyond our control!!
• Please note that, wherever possible, Yaesu in Japan supplies the Australian market with USA-based firmware transceivers which the Yaesu factory may re-program for the Australian market. If/when
  you decide to update any Yaesu transceiver's firmware please
  confirm which firmware was originally programmed during original manufacture BEFORE you attempt any such firmware updating!
• One year warranty applies to new Alinco power supplies we sell.
• One year warranty applies to new Manson power supplies we sell.

Wonderwand & Comet accessories
for multiband low power radios

WonderWand Widebander II antenna tuner for 160m~70cm!
Ideal for FT-817ND, FT-818ND, IC-705 multiband transceivers.
Includes 122cm telescopic whip & BNC/wire antenna adaptor!
WonderWand Widebander II antenna tuner package...A$399.
Note; Widebander II has 10W RF power rating. Made in U.K.
 Not a Yaesu/Icom/Alinco/Kenwood product. Normally in stock

***************************************

Photo of Widebander II+ & 90˚ coax adaptor + CST-30.

Widebander II+ can fit onto the optional Comet CST-30
antenna mounting bracket assembly which mounts
onto the side of an IC-705! Above assembly needs
only a right angle PL-259 to SO-239 coaxial adaptor.
Plug in the Widebander II+ 122cm/15cm telescopic
whip antenna =OR= the included BNC to two-wire
terminal post adaptor & connect an antenna wire and a
counterpoise wire; then tune to the lowest SWR on the
desired band. Wonderwand II+ tunes from 160m to 70cm!
Widebander II+ and CST-30 aren't Yaesu/Icom products.
Wire counterpoise is essential when operating portable.
Widebander II+; 10W RF power rating. Normally in stock!

***************************************

 COMET brand CST-30 antenna mounting bracket complete with
BNC plug, coax cable and SO-239 antenna socket assembly!
Ideal for FT-817ND/FT-818ND & IC-705 transceivers...A$129.
Image will be improved as soon as possible. Transceiver is
NOT included! Comet CST-30 is not a Yaesu/Icom product.
Normally in stock!

Yaesu M-70D Desktop mic

The new M-70D microphone utilises a directional condenser microphone
element which has a specially tuned frequency response for clear and
crisp transmit audio. The PTT switch has three air-cylinder tubes which
provide comfortable long-term PTT tx/rx operation. A PTT lock button
is located behind the PTT switch. A low-cut filter shapes the M-70's
low frequency response (cut-off @ 340Hz, -6dB/octave). An "on/off"
mic operation switch is located on the underside of the microphone.

M-70D...$249 AUD

PLENTY IN STOCK!

M-70D can be used with current Yaesu HF transceivers immediately.
The following Yaesu transceivers will work with the M-70D without
requiring the optional M-100PSK power supply kit; FTDX-10,
FTDX-101 series, FT-450/D, FT-817/ND, FT-818ND, FT-847,
FT-857/D, FT-897/D, FT-891, FT-900, FT-920, FT-950,
FT-991/A, FT-1000MP, FT-1000MP/Mk.V, FTDX-1200,
FT-2000/D, FTDX-3000D, FTDX-5000 series
and FTDX-9000 series.

The following radios require the optional M-100PSK power supply kit;
FT-747, FT-840, FT-850, FT-990 and FT-1000 for M-70D operation.
We don't sell this power supply kit. The power supply kit is ONLY
for use with M-70D, M-90D & M-100 microphones; not for the M-1.

The supplied coiled mic cable has a RJ-45 modular plug fitted at one
end and an 8-pin round mic plug fitted at the other end. To connect
this mic cable to your Yaesu transceiver; firstly, plug the appropriate
plug into the mic socket of your radio, then plug the other end of the
mic cable into a matching socket at the rear panel of the mic's base.

New Yaesu M-90D Desktop mic!

The new M-90D microphone utilises a dynamic microphone element
that is finely tuned to deliver rich low and mid frequency response
for clear and concise conversation. Using a windscreen cover and a directional microphone element design, the M-90D concentrates the
voice input from the front while reducing ambient noise from the rear.
A built-in low-cut filter creates clear and crisp audio characteristics
by shaping low frequency response (cut-off @ 340Hz, -6dB/octave).
An isolation transformer integrated into the circuit board enhances the
audio quality. The M90D (and M90MS) is compatible with all Yaesu HF transceivers equipped with the round 8-pin microphone socket or the
8-pin modular connector. An isolation transformer is on the PCB to
enhance the audio quality. A simple one-touch keylock button is
located directly above the PTT key for those long rag chews...

 M-90D...$299 AUD

PLENTY IN STOCK!

M-90D can be used with current Yaesu HF transceivers immediately.
The following Yaesu transceivers will work with the M-90D without
requiring the optional M-100PSK power supply kit; FTDX-10,
FTDX-101 series, FT-450/D, FT-817/ND, FT-818ND, FT-847,
FT-857/D, FT-897/D, FT-891, FT-900, FT-920, FT-950,
FT-991/A, FT-1000MP, FT-1000MP/Mk.V, FTDX-1200,
FT-2000/D, FTDX-3000D, FTDX-5000 series
and FTDX-9000 series.

The following radios require the optional M-100PSK power supply kit;
FT-747, FT-840, FT-850, FT-990 and FT-1000 for M-70D operation.
We don't sell this power supply kit. The power supply kit is ONLY
for use with M-70D, M-90D & M-100 microphones; not for the M-1.

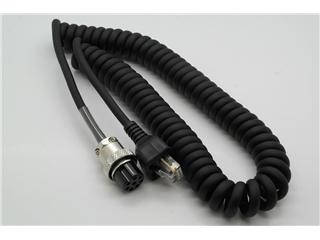

The supplied coiled mic cable has a RJ-45 modular plug fitted at one
end and an 8-pin round mic plug fitted at the other end. To connect
this mic cable to your Yaesu transceiver; firstly, plug the appropriate
plug into the mic socket of your radio, then plug the other end of the
mic cable into a matching socket at the rear panel of the mic's base.

Yaesu M-100 Dual Element mic

The Yaesu M-100 Dual Element microphone is a high-quality hybrid
design desktop mic, incorporating a high-quality Condenser and
Dynamic microphone elements. The Condenser element provides
wide overall frequency response - with crisp and clear audio
characteristics - while the Dynamic element enhances low and
mid-range frequency response. A set of one-touch buttons
enables one, or both, mic elements to be selected. Low cut and
high cut filters are built-in. Treble Boost Cowling is supplied.
The M-100 features adjustable height/angle and includes an
LED ON-AIR indicator!

 M-100...$529 AUD

PLENTY IN STOCK!

The M-100 can be used with current model Yaesu HF radios immediately.
The following Yaesu transceivers work with the M100 without requiring
the optional M-100PSK power supply kit; FT-450D, FT-817/ND, FT-847,
FT-857/D, FT-897/D, FT-891, FT-900, FT-920, FT-950, FT-991/A,
FT-1000MP, FT-1000MP/Mk.V, FTDX-1200, FT-2000/D,
FTDX-3000D, FTDX-5000 series and FTDX-9000 series

The following radios require the optional M-100PSK "Power Supply Kit";
FT-747, FT-840, FT-850, FT-990 and FT-1000 for M-100 operation.
The optional M-100PSK "Power Supply Kit" is NOT available from us.
M100PSK is for use ONLY with M-100, M-90D & M-70 mics; not M-1.
Photo shows Treble Boost Cowling fitted to the M-100 on the right.

The supplied coiled mic cable has a RJ-45 modular plug fitted at one
end and an 8-pin round mic plug fitted at the other end. To connect
this mic cable to your Yaesu transceiver; firstly, plug the appropriate
plug into the mic socket of your radio, then plug the other end of the
mic cable into a matching socket at the rear panel of the mic's base.

Yaesu M-1 Ultimate Reference mic

The Yaesu M-1 Reference Microphone is the ultimate, high-quality
and innovative desktop microphone. It is dedicated to the most
discriminating radio amateur. It features an LCD display, 9-band
graphic equaliser with independent level adjustments for both the
Condenser and Dynamic mic elements, along with 20 seconds of recording/playback! Low cut filter & Treble Boost Cowling, too!
Includes adjustable height/angle and an LED ON-AIR indicator!
The M-1 Ultimate Reference mic doesn't require the M-100PSK.

  M-1...$949 AUD

PLENTY IN STOCK!

The supplied coiled mic cable has a RJ-45 modular plug fitted at one end
and an 8-pin round mic plug fitted at the other end. To connect this
coiled mic cable to your Yaesu transceiver; firstly, plug the appropriate
plug into the mic socket of your radio, then plug the other end of the
mic cable into a matching socket at the rear panel of the mic's base.
Do NOT use the M-1 with FT-2400, FT-7400, FT-2500 or FT-8500!!

The following Yaesu transceivers will work with the M-1, without requiring
the optional M-100PSK "Power Supply Kit"; FT-450D, FT-747, FT-817/ND, FT-840, FT-847, FT-850, FT-857/D, FT-897/D, FT-891, FT-900, FT-920,
FT-950, FT-990, FT-991/A , FT-1000, FT-1000MP, FT-1000MP/Mk.V,
FTDX-1200, FT-2000/D, FTDX-3000D, FTDX-5000 and FTDX-9000 series.

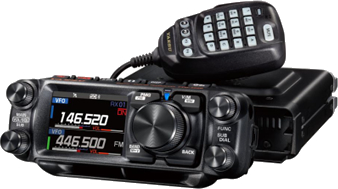

Digital dualband C4FM/FM mobile

PLENTY IN STOCK!

Free freight Australia-wide &
3-year warranty, of course!

Learn More

• DIGITAL C4FM and analog FMN modes transmit on 2m band (144~148MHz) and 70cm band (430~450MHz)
• Continuous receive from 108MHz to 480MHz and from 480MHz to
  999.995MHz (cellular bands blocked). Double-conversion superhet.
• Selectable RF power output levels of; 50W/25W/5W
• Full-colour high-resolution 2.4" touch panel display
• Front dual-speaker AESS (Acoustically Enhanced Speaker System)
• Advanced C4FM Digital mode with Automatic Mode Select (AMS),
  DG-ID feature and Smart Navigation.
• Memory Auto Group (MAG) allows memory channels categorising
  into "ALL", Airband, VHF band, UHF band & "OTHER" band groups
• GPS for APRS (1200/9600bps)!
• Modulation types; F1D, F2D, F3E: variable reactance modulation,
  F7W: 4FSK (C4FM)
• Stable 50W RF output with heavy duty heatsink and Funnel Air-Convection Conductor (FACC) for excellent cooling performance
• GPS receiver built-in, with 66 channel & external GPS connectivity
• Demountable front panel controller
• Swing-head adaptable front panel controller has up to 20˚ upward
  tilt to enable improved display visibility
• EO2(Easy to Operate)-IV innovative smart operating system with Touch and Go, Search and Go functions
• True dual-band operation; C4FM/C4FM Digital D-D dual-receive!
• High-speed bandscope with up to 61 channels centreing on current displayed frequency. Single-touch spectrum scope function
• Automatic Mode Select (AMS) switches to analog or digital
• Wireless operation capability with optional Bluetooth® headset
• WIRES-X portable digital node -or- HRI-200 fixed node capability
• High stability TCXO
• VFO band skip function
• Micro SD card slot (up to 32Gb)
• Customised Function List (CFL) display
• Memory channel data transfer to VFO register
• Voice recording of received and transmitted audio
• Supports advanced VoIP ham radio WIRES-X operation
• Total of 1104 memory channels includes 50 sets of memories for programmable memory scan and 999 basic memories
• Total of 9W audio output by way of front panel 6W and main body internal 3W speakers

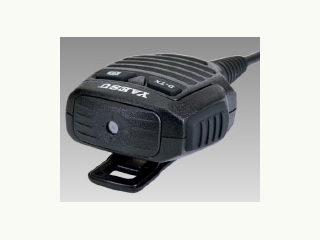

• MH-85A11U USB camera is optional at extra cost
• MH-85A11U USB camera is NOT supplied with FTM-500DR
• Icom's D-Star digital format is NOT compatible w/FDMA/C4FM
• Includes; SSM-85D DTMF hand mic, main body mounting bracket,
  short length control cable for operation with adjustable front panel mountings, DC power cable and operating manual
• Weighs 1.4kg., ready to operate
• Requires 13.8Vdc @ 11A max.
• Optional voice guide and recording (requires FVS-2)
• Options are available at extra cost
• Option; HRI-200 (WIRES-X) internet repeater linking kit
• Options; CT-132 control head extension cable (6m), FVS-2 voice guidance unit, MEK-5 mic extension cable (3m), MH-42C6J hand

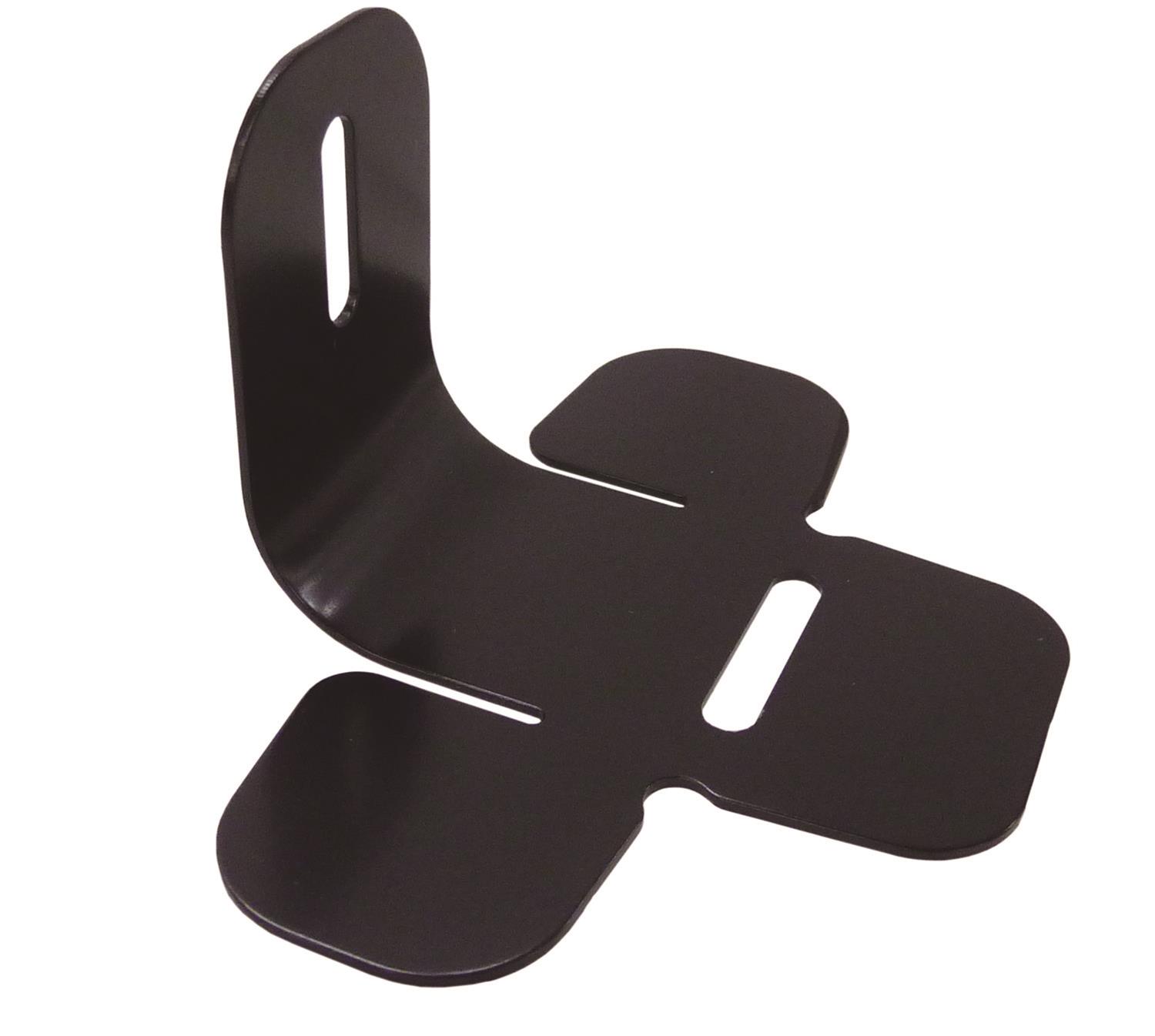

  mic, MMB-103 mounting bracket for control head, MLS-100 external speaker, SCU-58 WIRES-X connection cable (includes SCU-56 and audio cable), SCU-62 control head extension cable (3m), SJMK-500 swing-head kit; for flexible front panel angle adjustment, SSM-BT10 Bluetooth® headset and SSM-85D DTMF hand mic (included with
  new FTM-500DR)
• We highly recommend you option our shipping insurance at 2% of
  the value of the shipment when ordering as we are not responsible
  for loss or damage caused by circumstances beyond our control!!
• Please note that, wherever possible, Yaesu in Japan supplies the Australian market with USA-based firmware transceivers which the
  Yaesu factory may re-program for the Australian market. If/when
  you decide to update any Yaesu transceiver's firmware please
  confirm which firmware was originally programmed during original
  manufacture BEFORE you attempt any such firmware updating!

***NEW!***

Instant Cashback Promotion!

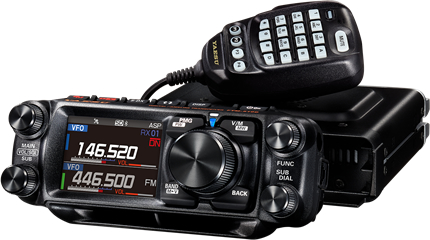

YAESU FTM-510R ASP...A$949
less A$50 Cashback = A$899!

New digital C4FM/FM dualband mobile 2m/70cm transceiver features V+V, U+U, V+U, U+V receive, amazing Super-DX RF amplification, new audio DSP
and 55W/50W output!

PLENTY IN STOCK!

Free freight Australia-wide &
3-year warranty, of course!

Learn More

• Super-DX function increases RF amplifier sensitivity in both analog
  and digital modes and significantly improves weak signal reception
• 55W RF output 2m 144~148MHz and 50W RF output 430~440MHz
  digital dualband C4FM/FM mobile transceiver!
• Simultaneous cross-band receive, dual-in-band receive features
• PMG (Primary Memory Group) enables up to 5 VFO or memory
  channel frequencies to be assigned to this group
• CFL (Customised Function List) allows up to 9 frequently used functions from the 44 menus to be registered and easily called up
• Requires 13.8Vdc @ 12A max.
• Options at extra cost
• Please note that, wherever possible, Yaesu in Japan supplies the Australian market with USA-based firmware transceivers which the
  Yaesu factory may re-program for the Australian market. If/when
  you decide to update any Yaesu transceiver's firmware please
  confirm which firmware was originally programmed during original
  manufacture BEFORE you attempt any such firmware updating!

***NEW!***

YAESU FTM-150R ASP...A$599

 New dualband 2m/70cm mobile transceiver features V+V, U+U, V+U, U+V receive, amazing Super-DX RF amplification, new audio DSP & 55W/50W output!

PLENTY IN STOCK!

Free freight Australia-wide &
3-year warranty, of course!

Learn More

• Super-DX function increases RF amplifier sensitivity in both analog
  and digital modes and significantly improves weak signal reception
• Selectable 55W/25W/5W RF output 2m 144~148MHz and 50W/25W/5W RF output 70cm 430~440MHz FM mobile transceiver!
• Requires 13.8Vdc @ 11A max.
• Options are at extra cost
• Please note that, wherever possible, Yaesu in Japan supplies the Australian market with USA-based firmware transceivers which the
  Yaesu factory may re-program for the Australian market. If/when
  you decide to update any Yaesu transceiver's firmware please
  confirm which firmware was originally programmed during original
  manufacture BEFORE you attempt any such firmware updating!


***NEW!***

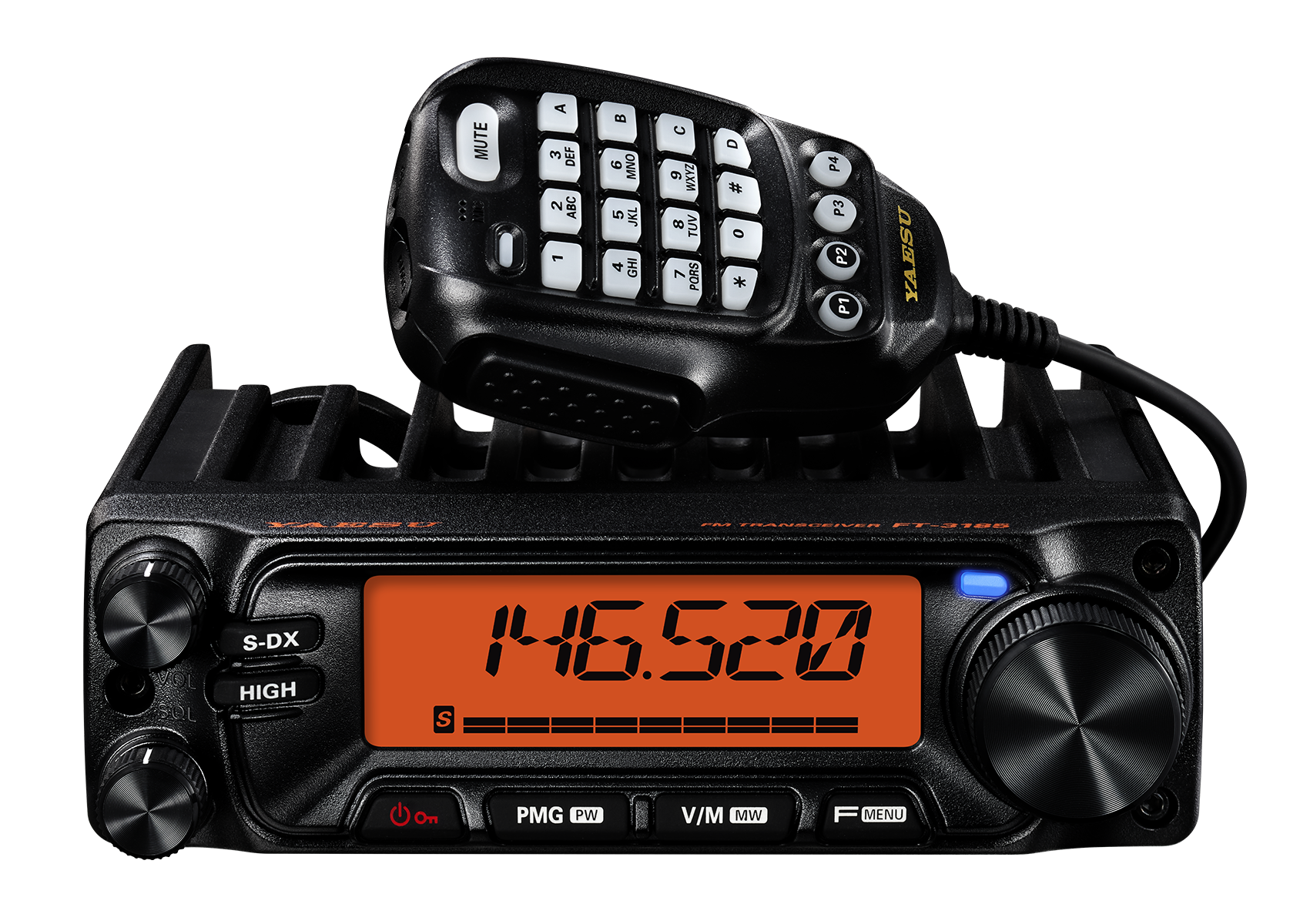

Yaesu FT-3185R ASP...A$399

2m FM mobile transceiver with amazing Super-DX RF receive, new audio DSP feature and up
to a massive 85W of RF output

PLENTY IN STOCK!

Free freight Australia-wide &
3-year warranty, of course!

Learn More

• Super-DX function increases RF amplifier sensitivity in both analog
  and digital modes and significantly improves weak signal reception
• Selectable 85W/50W/25W/5W RF output 2m 144~148MHz FM mobile
• PMG (Primary Memory Group) enables up to 5 VFO or memory channel frequencies to be assigned to this group
• CFL (Customised Function List) allows up to 9 frequently used functions from the 44 menus to be registered and easily called up
• Requires 13.8Vdc @ 15A max.
• Options are at extra cost;
• Please note that, wherever possible, Yaesu in Japan supplies the Australian market with USA-based firmware transceivers which the
  Yaesu factory may re-program for the Australian market. If/when
  you decide to update any Yaesu transceiver's firmware please
  confirm which firmware was originally programmed during original
  manufacture BEFORE you attempt any such firmware updating!

***NEW!***

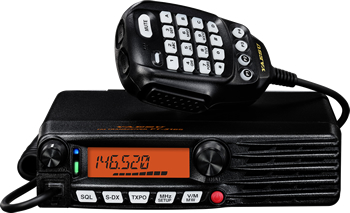

Yaesu FT-3165R ASP...A$349

 2m FM mobile transceiver with amazing Super-DX RF receive, new audio DSP feature and 65W/30W/5W RF output!

PLENTY IN STOCK!

Free freight Australia-wide &
3-year warranty, of course!

Learn More

• Super-DX function increases RF amplifier sensitivity in both analog
  and digital modes and significantly improves weak signal reception
• New 65W/30W/5W RF output 2m 144~148MHz FM mobile transceiver
• PMG (Primary Memory Group) enables up to 5 VFO or memory channel frequencies to be assigned to this group
• CFL (Customised Function List) allows up to 9 frequently used functions from the 44 menus to be registered and easily called up
• Requires 13.8Vdc @ 11A max.
• Options at extra cost;
• Please note that, wherever possible, Yaesu in Japan supplies the Australian market with USA-based firmware transceivers which the
  Yaesu factory may re-program for the Australian market. If/when
  you decide to update any Yaesu transceiver's firmware please
  confirm which firmware was originally programmed during original
  manufacture BEFORE you attempt any such firmware updating!

Instant Cashback Promotion!

YAESU FT-5DR...A$699
less A$50 Cashback = A$649!

PLENTY IN STOCK!

Due first week in June!

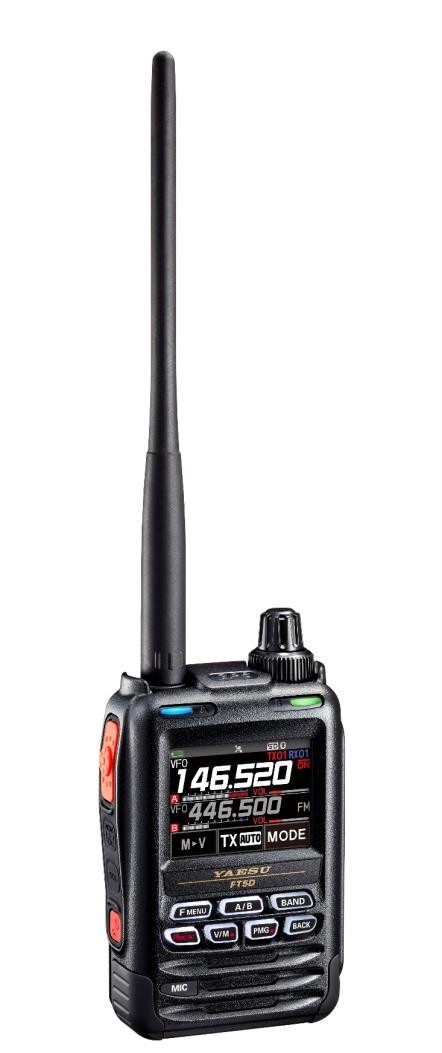

New YAESU FT-5DR digital/analogue C4FM/FM
twin-band handheld transceiver features true
twin-band V+V, U+U, V+U & U+V operation!!

New FT-5DR supports simultaneous C4FM digital (C4FM/C4FM standby) operation, too! The colour
of the operating band frequency can be displayed
in white, blue or red and the bandscope monitors
up to 79 channels in real time.

Colour TFT touch-screen display, dual and cross-
band receive, Bluetooth® unit, GPS & bandscope
features! Supports WiRES-X Portable Digital Node

Free freight Australia-wide &
3-year warranty, of course!

Learn More

• C4FM digital V/D, Voice F/R, Data FR and conventional FM
• Selectable 5W/2.5W/1W/0.3W RF output on 2m (144~148MHz)
  and 70cm (430~450MHz) bands if using SBR-14Li or FNB-101Li
  or external DC input. RF output of 0.9W/0.3W if using FBA-39
• Simultaneous AM/FM broadcast band and 2-channel monitoring!
• Super-wideband receive coverage; 0.5MHz~999.9MHz (Band A)
  and 108~580MHz (band B)!
• Receives AM & FM broadcast bands, HF band and VHF & UHF bands
• CTCSS, DCS and Paging encode/decode enables Selcal operations
• High resolution large 320x240 dot matrix full colour touch screen
• Large capacity 1256ch memory in 24 x 100ch memory banks
• DTMF encode, DTMF memory and ARS (Auto Repeater Shift)

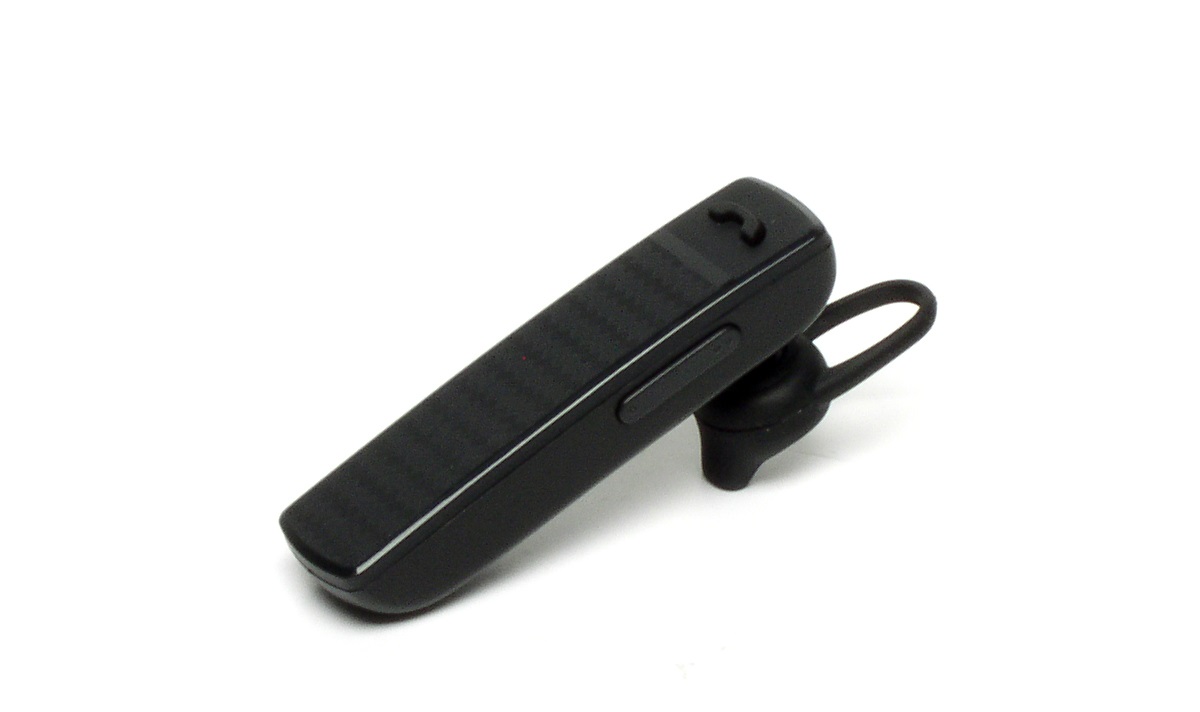

• Inbuilt Bluetooth® unit accepts optional (at extra cost)
  SSM-BT10 headset or compatible after-market products
• Twin-band simultaneous receive V/V, U/U, V/U and U/V
• FT-5DR doesn't support full cross-band duplex operation
• Supports WiRES-X Portable Digital Node (PDN) function
• Memory alpha-tagging of up to 24 characters
• Club Channel Activity Monitor (CAM) function
• Recording function (requires a MicroSD card)
• Bandscope displays 79, 39 or 19 channels
• Smart navigation feature --> in full colour
• 1W of exceptional quality audio output
• "Touch and Go" operation with Primary
  Memory Group Activity Monitor (PMG)
• Automatic Mode Selection (AMS)
• Channel Activity Monitor (CAM)
• Digital Group Monitor function
• Memory Auto Grouping (MAG)
• Group Short Message feature
• Dual-monitor in C4FM digital
• Has 1200/9600 bps APRS®
• Full support for WiRES-X
• Digital Group ID (DG-ID)
• Snapshot image display
• VFO band-skip function
• 1245 memory channels
• Waterproof to IPX5
• MicroSD card slot
• GPS data output
• GPS 66ch. receiver w/antenna
• GPS logging requires third-party microSD card
• Size; 62w x 100h x 34d mm. Weight; 282g (w/FNB-14Li & ant.)

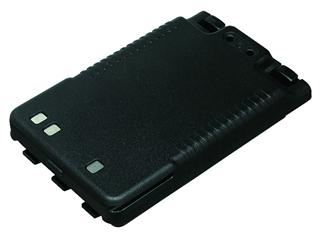

• Includes Yaesu SBR-14Li 7.4 V @ 2200mAh Li-ion battery pack, approved SAD-25 AC charger, antenna, USB cable (for firmware upgrades only; NOT for programming!), SBH-26 (BK) quick release holster, SBH-13 belt clip and operating manual
• Three-year transceiver warranty excludes all batteries and all
  accessories, of which ALL have one year warranty applying!
• Options are available at extra cost.
• Many of these options also fit FT-3DR

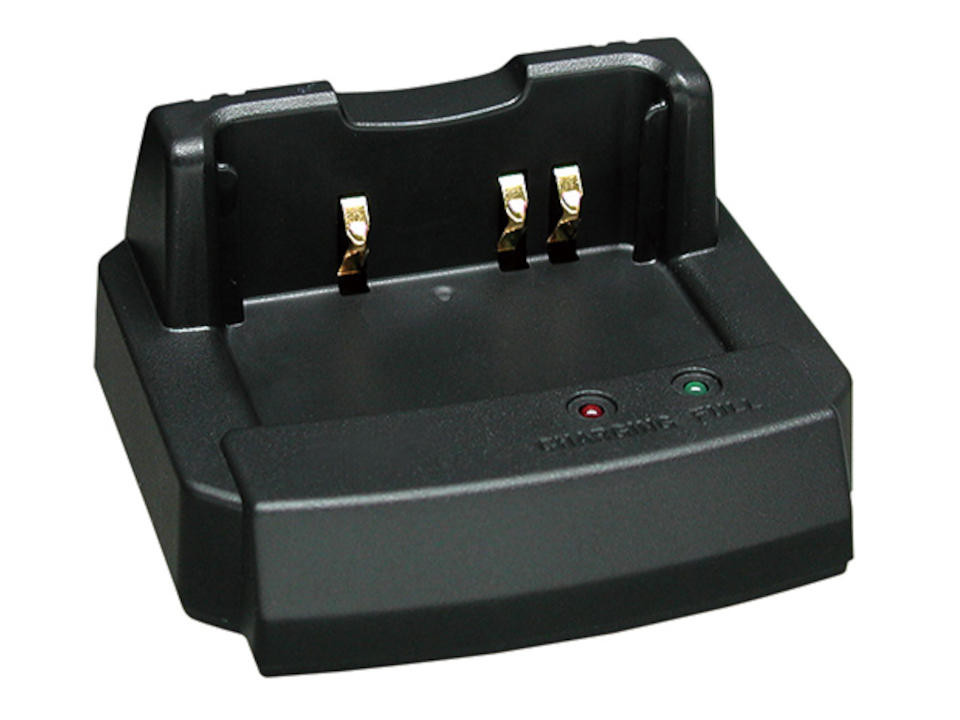

• Options; CD-41 desk-top rapid charger (discontinued)...see SBH-52 below, CN-3 BNC-SMA adaptor, CT-44 mic adaptor cable (2 x female mic to single socket), CT-168 cloning cable, CT-169 PC cable,
  CT-170 data cable, CT-176 datacable, E-DC-6 DC plug and cable, FBA-39 (req. 3xAA) dry cell battery tray, (FNB-101Li Li-ion battery), MH-34B4B speaker-mic, MH-85A11U snapshot camera hand-mic, approved AC charger, SHB-13 belt clip, SBH-26 quick-release holster (requires SBH-13 belt clip), SBH-52 new model desktop fast charger (replaces CD-41), *SCU-39 WiRES-X connection cable kit.
• Options cont.; SCU-39 can also be used to program FT-5DR (see *SCU-39 info below), **SCU-57 is suitable for Windows 11/10/8.1
  and includes SCU-55, etc. (see **SCU-57 info below), SBR-14Li

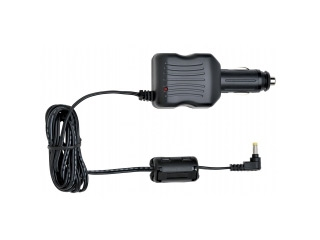

  Li-ion battery 7.4 V @ 2200mAh, SDD-13 cigarette lighter plug/lead w/noise filtering, SHC-40 soft case, SSM-BT10 Bluetooth® headset (includes PTT and VOX functions), SSM-17A miniature speaker-mic, SSM-57A lightweight earpiece-mic and SSM-63A VOX headset

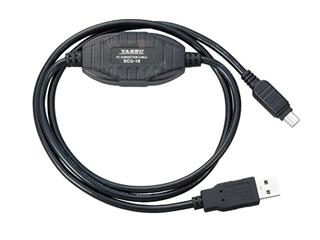

• Note; the *SCU-39 cable assembly can be used with RT Systems
  software =OR= with a microSD card...to program Yaesu FT-5DR
• The **SCU-57 WiRES-X connection cable kit comprises SCU-55 PC connection cable, CT-44 mic adaptor cable and two (2) audio cables! For portable digital node operation with Yaesu FT-5DR, FT-3DR and FT-2DR handheld transceivers. Use with Windows 11/10/8.1
• Notes re operation of FT-5DR with HRI-200; The FT-5DR can work
  with the HRI-200 without any optional cables being required. If
  there's a "base" radio (e.g. FTM-400XDR) already set up for the
  node with connections to the computer then the FT-5DR needs NO cables and would talk directly to that "base" radio. However, if the
  FT-5DR is being used as a node radio (a separate manual is on
  Yaesu's website for what's called PDN mode) then a USB cable has
  to be used to connect to the HRI-200 (in Yaesu's opt. SCU-39 kit)
• We highly recommend you option our shipping insurance at 2% of
  the value of the shipment when ordering as we are not responsible
  for loss or damage caused by circumstances beyond our control!!
• Please note that, wherever possible, Yaesu in Japan supplies the
  Australian market with USA-based firmware transceivers which the
  Yaesu factory may re-program for the Australian market. If/when
  you decide to update any Yaesu transceiver's firmware please
  confirm which firmware was originally programmed during original
  manufacture BEFORE you attempt any such firmware updating!

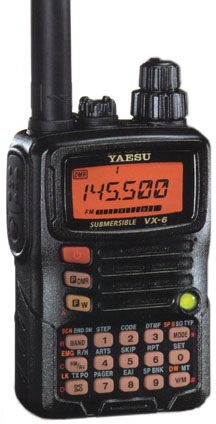

Yaesu VX-6R

 SUBMERSIBLE 2m/70cm deluxe DUALBAND
  5W handheld has wideband receive coverage!

Yaesu VX-6R...A$369

Sold out!

VX-6R shipment due August!

Free freight Australia-wide &
3-year warranty, of course!

Learn More

The VX-6R is an ultra-rugged 144/430 MHz FM hand-Held featuring wide receiver coverage, Yaesu's exclusive Emergency Automatic Identification (EAI) system and ultra-simple keyboard access to important features.

New on the VX-6R is our One-Touch Direct Memory Recall feature. This allows you to recall ten favourite memories with a single button press.

• 5W of RF output across 2m (144~148MHz) and 70cm (430~450MHz amateur bands
• VX-6R has continuous receive coverage from 500kHz to 729MHz
  and from 803MHz 998.99MHz (cellular blocked)
• The VX-6R is submersible and meets JIS7 specifications for submersibility (1m depth for 30 minutes)
• The dot matrix LCD display allows memory tagging of up
  to a max. of 16 characters
• DCS and CTCSS encode and decode operation is included
• The VX-6R is supplied with a Vertex/Yaesu FNB-80Li 7.4V @
  1250mAh Lithium-ion battery pack, approved SAD-24 AC slow
  charger, antenna and a belt clip
• Three-year transceiver warranty excludes all batteries and
  accessories, which all have one year warranty applying
• Options are available at extra cost

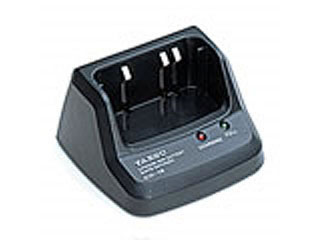

• Options;  CD-15A cradle, CLIP-17D swivel belt clip, CN-3, CSC-91
  soft case, CT-91, E-DC-6 DC cable, FBA-23 dry cell case (2xAA),
  FNB-80Li 1250mAh Li-ion battery, F-GPS2 GPS unit, MH-57A4B speaker-mic, MH-73A4B waterproof speaker-mic, SAD-24H
  (for CD-41), SDD-13 DC cable with cigarette lighter plug and noise filtering, SSM-55A earpiece-mic, SSM-64A (replacement for VC-24) VOX headset w/boom-mic, SU-1 barometric pressure sensor and

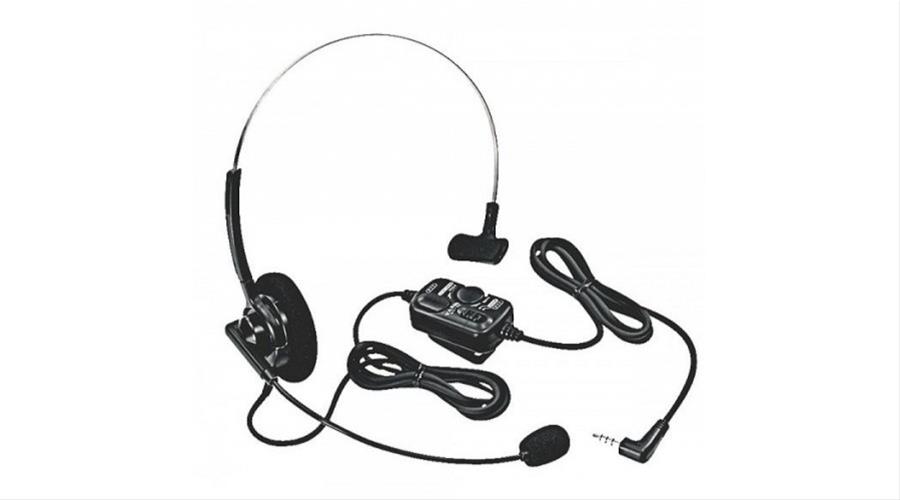

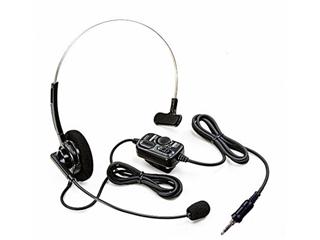

  VC-24 VOX headset
• Please note that the SDD-13 DC cable will NOT charge the VX-6R's FNB-80Li battery pack! The SDD-13 will directly power the VX-6R!
  In fact, you can remove the FNB-80Li and the VX-6R will operate
  just from the SDD-13! To charge the VX-6R's FNB-80Li battery pack you could plug the SDD-13 into a CD-15 cradle then drop the VX-6R with its FNB-80Li attached into the CD-15 cradle...
• We highly recommend you option our shipping insurance at 2% of
  the value of the shipment when ordering as we are not responsible
  for loss or damage caused by circumstances beyond our control!!
• Please note that, wherever possible, Yaesu in Japan supplies the Australian market with USA-based firmware transceivers which the
  Yaesu factory may re-program for the Australian market. If/when
  you decide to update any Yaesu transceiver's firmware please
  confirm which firmware was originally programmed during original manufacture BEFORE you attempt any such firmware updating!

CHARGING YAESU BATTERY PACKS

FNB-101LI, FNB-102Li and
SBR-14Li charging notes...

The Yaesu FNB-101Li battery pack requires about 5 hours of charging time when charging with an AC slow charger. However, the required charging time is only about 2.5 hours
when charging with an AC slow charger and the optional CD-41
 drop-in type rapid charger!

The Yaesu FNB-102Li battery pack requires about 8 hours of charging time when charging with an AC slow charger. However, the required charging time is only about 4 hours when charging with an AC slow charger and the optional CD-41
drop-in type rapid charger!

The Yaesu SBR-14Li battery pack requires about 9 hours of charging time when charging with an AC slow charger. However, the required charging time is only about 5 hours when charging with an AC slow charger and the optional CD-41
drop-in type rapid charger!

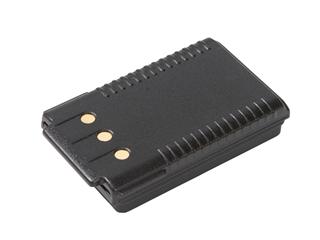

The Yaesu SBR-14Li Li-ion battery pack replaces the FNB-102Li.
The SBR-14Li is rated at 2200mA/h
@ 7.2V and suits Yaesu FT1DR,
FT-2DR, FT-3DR, FT-5DR and
VX-8DR transceivers.

***********************

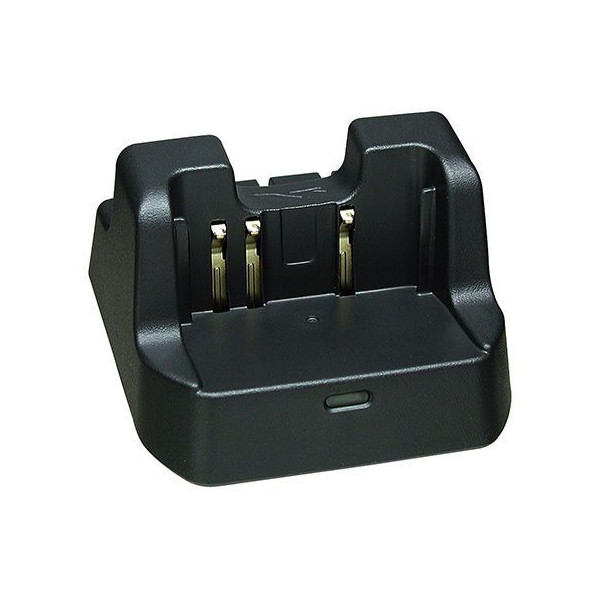

Yaesu SBH-13...A$39
SOLD OUT!

FT-60R drop-in rapid charger!
Fast charges a fully discharged
FNB-83 battery in 3.5~4 hours.
Designed for operation with an
FT-60R's AC/DC slow charger,
which is normally included with
new FT-60R transceivers.
Slow charging a fully discharged FNB-83 with an FT-60R's AC/DC
slow charger takes 8~10 hours!
SBH-13 also suits FT-270R, etc.
The SBH-13's red LED is illuminated when charging. It extinguishes
when the battery is fully charged.

Insurance cover for goods in transit is available from us for only $2 per $100 value of goods. Please advise us if you require this option when ordering.

Please consider insurance because we are not responsible for loss of parcels or damage sustained by parcels - the carrier is responsible! We do pack well!

If your order is damaged in-transit by the freight company then you must claim on the freight company, not ourselves!!

Of course, if you have paid us for insurance then you simply claim on us. We are quick at resolving damage claims, compared to
many freight companies.

Insurance is NOT available for items sent via express mail BAG.

Please do NOT write <fragile> on anything you send to us as doing so greatly increases the risk of damage. Please try to "double-box" all products sent to us.

We don't offer any replacement warranties. One year warranty applies to new YAESU accessories.

Warranty covers only faults in parts or workmanship.

Warranty cover is not insurance cover, of course!

Customer caused or environment caused damage is not covered by any warranty, of course!

All prices are subject to change without notice or obligation and are based on importing  products via seafreight.

Importing of products via airmail, airfreight or aircourier, compared to our regular seafreighting, will incur additional freight costs.

All prices subject to confirmation. Prices are subject to change without notice or obligation due to exchange rate variations, etc.

"Twinband" transceivers allow simultaneous and independent operation on two bands at any time, e.g. receiving on one band whilst transmitting on the other band. "Dualband" transceivers allow transmit or receive operation only on one band at any time.

All firmware upgrading is chargeable. Firmware upgrading is not free within the radio's warranty period. All firmware is covered by warranty.

We may charge to rectify firmware issues caused by customers!

We have provided free radio "health checks" daily since 1976.
This service applies to all amateur radios, whether they were sold by us, or not.
Some conditions apply.

A valid sales receipt copy must accompany each warranty claim.
Include your name, address, email and phone number.

Please note that, wherever possible, Yaesu in Japan supplies the Australian market with USA-based firmware transceivers which the Yaesu factory may re-program for the Australian market.
If/when you decide to update any Yaesu transceiver's firmware please confirm which firmware was originally programmed during original manufacture BEFORE you attempt any such firmware updating!

Yaesu authorised dealership notes

Yes, there are other Yaesu factory authorised sales dealers and other Yaesu factory authorised service dealers for Australia and N.Z.

We are the longest serving Yaesu sales and servicing
dealer in Australia...by far!

Yes, you can purchase any new Yaesu amateur radio and
scanning receiver products from us with absolute confidence, as you know we can repair those products ourselves under true and total Yaesu factory-authorised total sales and service dealership status, agreement & factory support!!

Three-year transceiver warranty excludes all batteries and accessories, which all have one year warranty applying. Customer-caused and/or environment-caused damage is not covered by any warranty!

 Please note that, wherever possible, Yaesu in Japan supplies the Australian market with USA-based firmware transceivers which the Yaesu factory may re-program
for the Australian market. If/when you decide to update any Yaesu transceiver's firmware please confirm which firmware was originally programmed during original
manufacture BEFORE you attempt any such firmware updating! We may charge to rectify serious firmware issues
caused by customers!!

In most instances, we will repair under Yaesu factory-authorised
dealership status and agreement Yaesu amateur radio and scanning receiver products which were purchased new from other Yaesu authorised dealers on a Yaesu factory-authorised warranty
(subject to written Yaesu Japan approval) or on chargeable basis.

All warranty repairs are subject to Yaesu Japan's approval. Warranty repairs not approved by Yaesu
Japan would be repaired on a
strictly chargeable basis, if
they are accepted for repair.

Strictly Ham is not a Yaesu authorised servicing dealer!

Celebrating our 48th year of super successfully (>99% success rate) repairing 40,000+ amateur radios
and radio related products.

Ross at Strictly Ham advised us by email on 14-04-2023 that he has started the process of retiring.
We've heard for "donkeys years"
he's retiring, so that's not news!
We suggest you contact Ross if
you have outstanding orders
or deposits placed. Wishing
you the best of British luck...

Lee has owned & operated Yaesu amateur radios for over 56 years!

YAESU ATAS-120A

AUTOMATIC
Antenna Tuning System

The ATAS-120A is a motor-driven mobile type vertical antenna. It has a continuously tunable frequency range of 7MHz~450Mz (40m to 70cm) and is fully remote controllable by FT-897/D, FT-857/D, FT-100/D and FT-847  transceivers. These transceivers will automatically tune an ATAS-120A to the point of lowest detected swr by driving its internal motor, which adjusts the antenna's length, thereby  changing its resonant frequency. Maximum antenna length is 1.6m. Spare/replacement stainless steel whips are subject to availability.

Please note that this antenna has an integrated PL-259 plug. This plug is also very well known as a UHF plug
(in commercial radio) and as M-P,
i.e. M-type plug (in Asian countries).
It will screw into an SO-239 socket.
Many amateurs buy an SO-239 side-entry socket, RG-58 coax & PL-259 plug assembly - or just a side-entry SO-239 socket - from us as the first step in installing an ATAS-120A.

Almost ALL mobile VHF/UHF amateur radio antennas have a PL-259 integrated into their base section! These antennas require an SO-239 socket to plug into for operation!
Recently, we found some new and long-standing amateurs were not aware of this requirement.
Btw, freighting or mailing of
antennas is at extra cost.

We very rarely recommend mobile antennas be installed in any base
station situation, due to mobile antennas typically having a higher angle of radiation and lower gain
than most base station antennas.

We have NEVER sold any brackets for mounting mobile antennas onto the metal roofs of buildings and have no intention of ever doing so! We don't recommend such mounting because large ground plane surface areas
force radiation up into a high angle lobe. This effect applies to both transmitted and received signals and
it seems to be most apparent on the higher frequency HF bands (e.g. on the 15m to 10m bands) and on the
6m band where most of the time DX (long distance) signals are received
at relatively low radiation angles.

We have found HF antennas, in particular, should be mounted at
least 2m above any large metal surface area in order to reduce this effect. The larger the ground plane surface area, then the higher almost any antenna should be mounted.

This is less of an issue on the lower
HF bands, such as on the 160m and 80m bands where a large ground
plane surface area is required!
For many reasons, the higher the frequency of operation, the higher
the antenna should be mounted.

Btw, we do sell a Mobile One M270 2m/70cm mobile type fibreglass whip which has an integrated 5/16" brass thread ferrule base. This antenna normally mounts onto a cone shaped base with a 5/16" male thread.
We sell PL-259 (at front of adaptor)
to 5/16" (at rear) for the mounting of 5/16" ferrule mobile antennas onto
SO-239 side-entry sockets.

See photo below of a generic
SO-239 side-entry base which
accepts only RG-58 coaxial cable. The coaxial cable's centre conductor must be soldered to
the internal centre pin of the
side-entry antenna base.

3-year warranty for all our new Yaesu amateur radio transceivers!

Three-year Yaesu factory authorised Australia & NZ warranty for new
sales of new Yaesu amateur transceivers we sell from 25-07-23.
Note; Strictly Ham is NOT a Yaesu authorised servicing dealer!

Free freight Australia-wide, too!

Andrews Communications provides full Yaesu warranty support with
outstanding Yaesu Japan fully authorised amateur radio technicians!
With over 46 years of servicing Yaesu products, our service is the best!
Please note; Strictly Ham is NOT a Yaesu authorised servicing dealer.


HF/6m automatic LONG WIRE antenna tuner

Now $499 AUD

Plenty in stock!

Learn More

The FC-40 is a wide-impedance tuning range LONG-WIRE-tuning type automatic antenna tuner.

The FC-40 works with FTDX-101D,(not FTDX-101MP as FC-40 accepts 100W max. RF, not 200W, hi!), FT-891, FT-710 AESS, FTDX-3000D, FTDX-1200 and FT-991/A transceivers, along with all versions of FT-857 and FT-897 transceivers, FT-450 and FT-450D transceivers and also the FT-950 transceiver.

The FC-40 will NOT work with other Yaesu transceivers!

The FC-40 is a microprocessor-controlled antenna high impedance matching network designed for use with all versions of the FT-857 and FT-897 HF/VHF/UHF Transceivers.

The FC-40 makes use of control circuitry inside the transceiver, allowing the operator to monitor and control operation of the FC-40, which mounts near the antenna feed-point. Fully waterproof, the FC-40 may be mounted outdoors in exposed locations and will handle 100 Watts of transmitter power.

The FC-40 will operate across 7 - 54 MHz when using a 2.4m (8 foot) long whip, or across 1.8 - 54 MHz when using a random-length wire longer than 20m (66 feet).

Matching time is typically five seconds or less and the required drive power is 4~60 Watts.

The FC-40 has 200 match-setting-point memories for instant recall of tuning settings.

HF/6m automatic antenna tuner
specifically operates with FT-891

Now $499 AUD

Plenty in stock!

Learn More

The FC-50 is a microprocessor controlled automatic antenna tuner and operates only with the FT-891!

The FC-50 will tune coaxial cable fed antennas from the 160m to 6m bands (1.8~54MHz) with up to 3:1 SWR (16~150 ohms) across the 160m~10 bands.
On the 6m band the FC-50 will tune up to 2:1 SWR (25~100 ohms).
Cables are included to enable easy operation with FT-891 transceivers.
The FC-50 accepts up to 100W of RF power and has 100 antenna matching memories.

Tune-up power; 4W~60W range. Tuning time is typically <5 seconds.

The FC-50 will NOT work with other Yaesu transceivers!


INTERNET REPEATER
LINKING KIT!

Now A$249 AUD

Sold out!

Place your order for
early availability

Provides easy access to WIRES-X, the amateur radio friendly multi-mode network linking system. WIRES-X supports both analog communications and Yaesu's new C4FM digital communications mode!

New additional WiRES-X feature - Portable Digital Node function.
See Yaesu's website for latest info!

Please ensure your license class allows you to operate the HRI-200! This is your responsibility!

Regarding HRI-200 operation with Yaesu's FT-991A;
Yaesu's HRI-200 can only be used in ANALOGUE mode with
FT-991A, NOT in digital mode! However, FT-991A can access commonly used WiRES-X features when connected to a node in WiRES-X mode...

Learn More

Includes "reversible" mic lead!

SOLD OUT!

Discontinued model!

Yaesu transceivers compatible with MD-100A8X; FT-450, FT-450D,
FT-840, FT-847, FT-857/D, FT-890, FT-891, FT-897/D, FT-950, FT-990,
FT-991/D, FT-1000, FT-1000MkV, FT2000,  FTDX-1200, FTDX-3000/D, FTDX-5000MP series and
FTDX-9000 series.

Note; MD-100A8X will not work with some older Yaesu transceivers, e.g. FT-757GXII & FT-736R. MD-100A8X won't work with Yaesu FM mobiles!

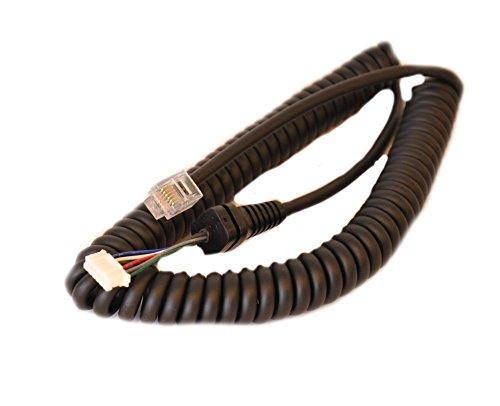

 The MD-100A8X mic is supplied with
a so-called "reversible" coiled mic cable which has a RJ-45 socket at one end and a 8-pin round mic
plug fitted at the other cable end.

In order to connect this mic cable
to your Yaesu transceiver; firstly, plug the appropriate plug into the
mic socket of your radio, then plug the other end of the mic cable into
a matching connector at the rear
of MD-100A8X's the base. The
rear panel of MD-100A8X's base
has TWO mic connectors fitted. These accept either an RJ-45 mic socket or 8-pin round mike plug!

YAESU coiled mic cord...A$49

Has 8-pin modular (RJ-45) plug fitted at each end of the coiled mic lead. Yaesu p/n S8100380.
This is Yaesu's replacement mic
lead for MH-31A8J, etc.

SP-10 External speaker box.
Suits FT-991 and FT-991A.
Size; 110w x 80h x 253d mm. Weight; approximately 1kg. Maximum audio power; 3W. Impedance; 8 ohms.

SP-10...A$199

PLENTY IN STOCK!

Includes audio lead with RCA
plug and 3.5mm mono plug!

************************

SP-20 External speaker box.
Suits FTDX-3000 & FTDX-1200.
Size; 130w x 115h x 312d mm. Weight; approximately 1.7kg. Maximum audio power; 7W. Impedance; 8 ohms.

SP-20...A$279

PLENTY IN STOCK!

Includes audio lead with RCA
plug and 3.5mm mono plug!

************************

SP-30 External speaker box.
Suits the new FTDX-10.
Size; 115w x 91h x 263d mm. Weight; approximately 1.5kg. Maximum audio power; 12W. Impedance; 8 ohms.

SP-30...A$229

PLENTY IN STOCK!

Includes audio lead with RCA
plug and 3.5mm mono plug!

************************

SP-40 External speaker box. Optional at extra cost for
new FT-710 FIELD. SP-40 is included with FT-710 AESS!

SP-40...A$249

PLENTY IN STOCK!

Includes audio lead with RCA
plug and 3.5mm mono plug!
This is a special order product
which we don't normally stock!

Deposit requested only when
Yaesu confirms availability!

SP-101 External speaker box. Suits FTDX-101D & FTDX-101MP.
Size; 160w x 130h x 322d mm. Weight; approximately 2kg. Maximum audio power; 7W. Impedance; 8 ohms.

SP-101...A$249

PLENTY IN STOCK!

 Includes audio lead with RCA
 plug and 3.5mm mono plug!

************************

SP-2000 External speaker box.
Has 5 selectable audio filters
and two audio input sockets.
 For FT-950/2000 & FTDX-3000.
Size; 200w x 135h x 350d mm.
Speaker diameter is 120mm.
Accepts 7W. 8 ohms. 2.5kg.

SP-2000...A$379

Sold out!

Please place your order
with deposit!

Subject to availability!

Includes audio lead with RCA
plug and 3.5mm mono plug!
Deposit requested only when
Yaesu confirms availability!

************************
