MOSLEY ANTENNAS

AUSTRALIA & NEW ZEALAND's only factory-authorised factory-direct Mosley antenna importer!

MOSLEY HF MULTIBAND BEAMS ARE HIGH
=OR= MEDIUM RF POWER LEVELS RATED



These days, we must air-courier Mosley antennas.
When requesting a quote please keep in mind that

air-courier is 5~10 times costlier than sea freight.


Please note that sea freight, air freight and air courier charges for
shipments from USA have increased dramatically since late 2022!!

Base antennas installed in high wind speed areas should be guyed.
Freighting or mailing of antennas from us to you is at extra cost.

Please note; pricing of long, heavy and/or bulky antennas is much
lower when seafreighting from the USA, rather than airfreighting!
 In most instances, we sea-freight Mosley antennas, these days.

We import Mosley antennas on an order-with-deposit basis!

The AUD-USD exchange rate as @ 27-09-23; A$1 = US$0.6155.

Please don't instantly assume a new antenna is faulty, as <0.1% of
new antennas (<0.01% for Japanese antennas) are faulty from new!
Antenna faults are actually due to the installation >80% of the time!

Where possible, please ensure coaxial cable lengths are in multiples
of a 1/2-wavelength (not in odd multiples of 1/4-wave lengths) on
every band, taking into account the coaxial cable's velocity factor.

Prices are subject to change without notice or
obligation due to exchange rate variations.

A deposit with your order will be required!
We are happy to send you a few quotes...

Please order by phone; 02 9688 4301/9636 9060/9896 8972,
by email; radioandrews@hotmail.com or by mail:
P.O. Box 240, Pendle Hill, NSW, 2145.

Updated 27-09-23


Type
HF MULTIBAND BEAMS --> HIGH RF POWER RATED

CLASSIC "CL" series
CL-series yagis are rated to 2500W SSB, 1500W CW & 600W AM/FM
CL-33M 3-el. yagi on the 28, 21 and 14MHz bands, 5.5m (18') boom
CL-33M-W (+WARC) 4-el., 28, 24, 21, 18, 14MHz bands on 5.5m (18') boom. Is a 3 element yagi on the 20, 15 & 10m bands and is a rotatable dipole on the 24MHz (12m) and 18MHz (17m) WARC bands
CL-33M-W (+ CLWARCKIT) 4-el., 28, 24, 21, 18, 14 and 10MHz bands, 5.5m (18') boom. It's a 3 element yagi on the 20, 15 & 10m bands and is a rotatable dipole on the 24MHz (12m) and 18MHz (17m) WARC bands. (Addition of the 30m band is available at extra cost)
CL-36M 6-el., 28, 21, 14MHz bands, 7.3m (24') boom
CL-39M 9-el., 28, 21, 14MHz bands, 12.2m (40') boom
CL-39M-3 9-el., 28, 21, 14MHz bands, 3"/75mm dia. 12.2m boom

PRO series
PRO-series yagis are rated to 5000W SSB, 2500W CW & 600W AM/FM
PRO-57B 7-el., 28, 24, 21, 18, 14MHz bands, 7.3m (24') boom
PRO-57B-3 7-el.,  28, 24, 21, 18, 14MHz bands, 3"/75mm 7.3m boom
PRO-57B-40 7-el., 28, 24, 21, 18, 14, 7MHz bands, 7.3m (24') boom
PRO-57B-40-3 7-el., 28, 24, 21, 18, 14, 7MHz bands, 3"/75mm 7.3m
PRO-67B 7-el., 28, 24, 21, 18, 14, 7MHz bands, 7.3m (24') boom
PRO-67B-3 7-el., 28, 24, 21, 18, 14, 7MHz bands, 3"/75mm 7.3m
PRO-67C-3 7-el., 28, 24, 21, 18, 14, 10, 7MHz bands, 3"/75mm 7.3m
PRO-95-2 9-el., 28, 24, 21, 18, 14MHz bands, 2"/50mm 11m (36')
PRO-95-3 9-el.,  28, 24, 21, 18, 14MHz bands, 3"/75mm dia. 11m/36'
PRO-96-2  9-el., 28, 24, 21, 18, 14, 7MHz bands, 2"/50mm, 11m (36')
PRO-96-3 9-el.,  28, 24, 21, 18, 14, 7MHz bands, 3"/75mm, 11m (36')
PRO-96-S 11-el., 7-bands;  28, 24, 21, 18, 14, 10, 7MHz bands, 3"/75mm, 14.6m (48') boom.

SIGNAL MASTER
S-31
S-32

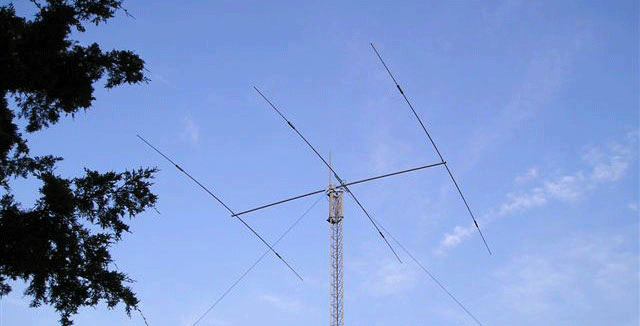

S-33 18, 14, 7MHz

TRAPMASTER series
TIG ARRAY "HYBRID"
MP-33N 28, 21, 14MHz
MP-33N-WARC 28, 24, 21, 18, 14MHz

TA SENIOR series
TA SENIOR-series yagis are rated to 2500W SSB, 1500W CW & 600W AM/FM
TA-31M 28, 21, 14MHz triband rotatable dipole
TA-32M 2-el., 28, 21, 14MHz, 2.13m (7') boom
TA-33M 3-el., 28, 21, 14MHz, 4.3m (14') boom
TA-33M-WARC 3-el., 28, 24, 21, 18, 14MHz, 4.3m (14') boom
TA-34XL 4-el., 28, 21, 14MHz, 6.4m (21') boom
TA-34XL-WARC 4-el., 28, 24, 21, 18, 14MHz, 6.4m (21') boom
TA-53M 5-band 4-el., 28, 24, 21, 18, 14MHz, 4.3m (14') boom
TA-54XL 5-band 5-el., 28, 24, 21, 18, 14MHz, 6.4m (21') boom
TA-63N 6-band 6-el., 50, 28, 24, 21, 18, 14MHz, 4.3m (14') boom
TA-54XLN-6 6-band 7-el.,  50, 28, 24, 21, 18, 14MHz, 6.4m (21')

TW "WARC" dualband series...12m/17m bands
TW-21M 24, 28MHz rotatable dipole
TW-22M 2-el., 24, 28MHz
TW-23M 3-el., 24, 28MHz
TW-24XL 4-el., 24, 28MHz

TW "WARC" triband series...12m/17/30m bands
TW-31XL 24, 18, 10MHz rotatable dipole
TW-32XL 2-el., 24, 18, 10MHz yagi on 3.6m (12') boom
TW-33XL 3-el., 24, 18, 10MHz yagi on 5.5m (18') boom
TW-34XL 4-el., 24, 18, 10MHz yagi on 7.3m (24') boom
Deposit required for all Mosley products.
We import Mosley products on an order-only basis.
Prices subject to change due to exchange rate variations.
Mosley antennas

HF MULTIBAND BEAMS --> MEDIUM RF POWER RATED




Type
HF MULTIBAND BEAMS - MEDIUM RF POWER RATED

MINI series
MINI-series tribanders are RF power rated to 1000W SSB, 500W CW & 250W AM/FM
MINI-31A 28, 21, 14MHz triband rotatable dipole
MINI-32A 2-el., 28, 21, 14MHz compact yagi
MINI-32A-WARC 5-el., 28, 24, 21, 18, 14MHz compact yagi
MINI-33A 3-el., 28, 21, 14MHz compact yagi
MINI-33A-WARC 4-el., 28, 24, 21, 18, 14MHz compact yagi

TRAPMASTER series - TA "Junior" tribander yagis
TA "Junior" tribanders are RF power rated to 1200W SSB, 500W CW & 250W AM/FM
TA-31-JR-N 28, 21, 14MHz triband low power rotatable dipole
TA-32-JR-N 2-el., 28, 21, 14MHz low power yagi
TA-33-JR-N  3-el., 28, 21, 14MHz low power yagi
TA-33-JR-N-WARC 4-el., 28, 24, 21, 18, 14MHz low power yagi
Deposit required for all Mosley products.
We import Mosley products on an order-only basis.
Prices subject to change due to exchange rate variations.
Mosley antennas

HF MULTIBAND TRAPPED VERTICAL ANTENNAS




Type
HF MULTIBAND TRAPPED VERTICALS - RV series

RV-3C
RV-3C-W WARC 12m-17m-30m
RV-4C

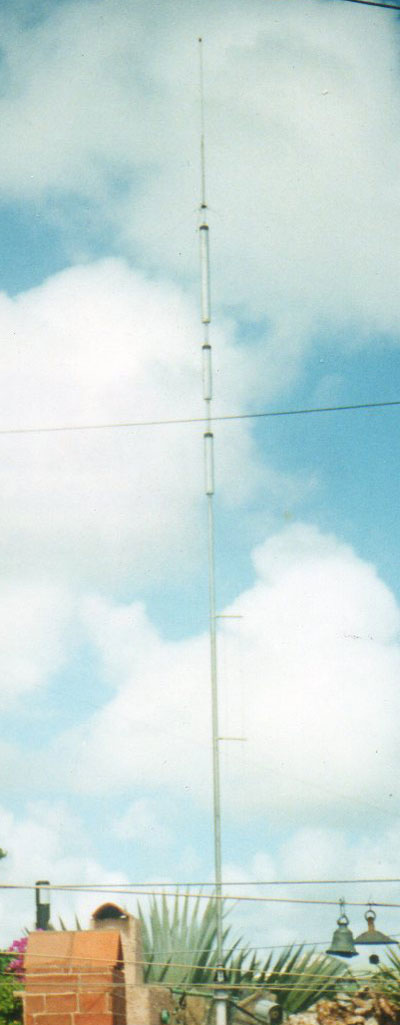

RV-6C
RV-7C
RV-8D 75/80m add-on kit
Deposit required for all Mosley products.
We import Mosley products on an order-only basis.
Prices subject to change due to exchange rate variations.
Base station verticals installed in high wind speed areas must be guyed

Mosley antennas

HF MONOBAND YAGI ANTENNAS




Type
HF CLASSIC "CL" series HEAVY DUTY YAGIS

CLASSIC "CL" 3-ELEMENT MONOBAND YAGIS
CL-series monobanders are RF power rated to 2000W SSB & 1000W CW
CL-103 10m band, 3-element yagi
CL-153 15m band, 3-element yagi
CL-203 20m band, 3-element yagi
CL-403 40m band, 3-element yagi
CL-series monobanders are RF power rated to 2000W SSB & 1000W CW

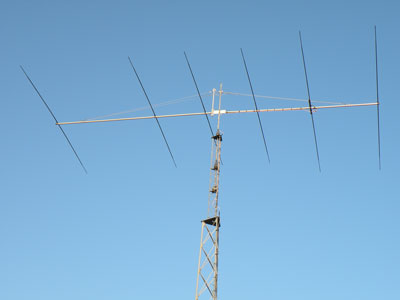

CLASSIC 4-ELEMENT MONOBAND YAGIS
CL-104 10m band, 4-element yagi
CL-154 15m band, 4-element yagi
CL-204 20m band, 4-element yagi
CL-series monobanders are RF power rated to 2000W SSB & 1000W CW
CLASSIC 5-ELEMENT MONOBAND YAGIS
CL-105 10m band, 5-element yagi
CL-155 15m band, 5-element yagi
CL-205 20m band, 5-element yagi
Deposit required for all Mosley products.
We import Mosley products on an order-only basis.
Prices subject to change due to exchange rate variations.

Mosley antennas

"Signalmaster" compact 40m and 30m monoband yagis

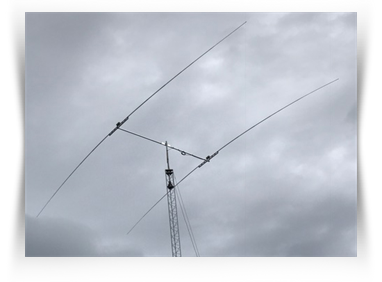

SF-402-A "Shorty Forty" 40m 2el. yagi
Estimated price...A$2499, ex-Sydney.


Type
"Signalmaster" series compact yagis for 40m
SF-402-A "Shorty Forty" 40m 2-element yagi on 14'/4.26m boom. Has 3.9dBd gain. Weighs 22kg. RF power ratings; SSB 2.5kw, CW 1.5kW. Price ~A$2499.

Please place your order with a $500 minimum deposit.

Delivery into our store can be up to six months from
when we place our sea freight order with Mosley.

See photo above...


S-401M
S-402M 40m 2-element yagi on 24'/7.32m boom. Has 5.2dBd gain.
Weighs 32kg. RF power ratings; SSB 2kw+, CW 1kW+.
Delivery timing is 5~6 months after receiving your deposit.
Please secure your order with A$1,000 minimum deposit.
Estimated pricing is A$3399~A$3499 ex-Sydney.
S-402-3 3"/75mm boom
S-403-3 3"/75mm boom

"Signalmaster" series compact yagis for 30m
S-301M
S-302M
S-303M
S-303-3 3"/75mm boom
Deposit required for all Mosley products.
We import Mosley products on an order-only basis.
Prices subject to change due to exchange rate variations.
Confirmed Mosley antenna prices are dependent upon final USA factory pricing, exchange rate, shipping costs, local taxes and other costs and charges...
Mosley antennas

Monoband and dualband 2m and 70cm yagi antennas



Rated to 2kW SSB/1kW CW


Type
VHF 2m/144MHz "Powermaster" series HEAVY DUTY YAGI
AM-14-2 2m 14-element, 13.9dBd, 3.66m boom

VHF 2m/6m DUALBAND "Powermaster" series H/D YAGI
AM-2N6 Dualband 2m 5-element 10.1dB yagi plus 6m 4-element 9.1dBd yagi on a 4.27m long boom

VHF 2m/144MHz "Powermaster" series light duty yagis
AM-5-6 6m 5 element 10.8dBd folded dipole yagi on 3.66m boom
MY-144-5 2m 5-element 10dBd folded dipole yagi on 1.37m boom
MY-144-9 2m 9-element 12dBd folded dipole yagi on 2.7m boom

UHF 70cm/430MHz "Powermaster" series light duty yagi
MY-430-14 70cm 14-el. 15dBd folded dipole yagi on 2.08m boom
Deposit required for all Mosley products.
We import Mosley products on an order-only basis.
Prices are subject to change due to exchange rate variations.
