Diamond antennas

GUARANTEED HIGH QUALITY AND HIGH PERFORMANCE!

 One year genuine Diamond factory-backed Australian warranty!
Diamond Japan factory-authorised direct importer since 1978!

*** Hundreds and hundreds of genuine Diamond antennas and accessories in stock! *** We despatch Diamond orders daily *** Australia's biggest Diamond stockist and longest serving Diamond importer/dealer, by many years!! ***

We don't recommend mounting antennas >1m long on heavy vehicles!
We don't recommend mounting >1m long antennas on diesel vehicles.
Please don't force coaxial cable through walls (especially brick walls).
Base station verticals installed in high wind areas should be guyed!

Please don't instantly assume a new antenna is faulty, as <0.1% of
new antennas (<0.01% for Japanese antennas) are faulty from new!
Antenna faults are actually due to the installation >80% of the time!
Please do not fit clamps or U-bolts to fibreglass antenna sections.
Please do not over-tighten any antenna's screws or apply glue!
 We must drill out screws that are seized due to over-tightening!
We won't replace new antennas without us first testing them!

Warranty does not apply to subsequent damage caused by
loosening of antennas or their sections due to improper
maintenance, care or installation by the customer.
Warranty will be void if products are customer damaged
or environmentally damaged or otherwise damaged.

Where possible, please ensure coaxial cable lengths are in
multiples of a 1/2-wave (not in odd multiples of 1/4-wave
lengths) of wavelength on every operating band, taking
into account your coaxial cable's velocity factor!!

We don't match overseas competitors' Diamond prices.
Japanese antenna manufacturers do not manufacture
 antennas or accessories which have 5/16" fittings.
Listed prices are subject to change without notice
due to exchange rate and freight cost variations.

Freighting or mailing of antennas at extra cost.
Prices are confirmed for antennas in stock.
Warranty cover is not insurance cover!
Warranty only applies to factory faults.

MASSIVE DIAMOND SEA
SHIPMENT DUE NOV.!

Scoop purchase of last Diamond
products from Strictly Ross here!
New low pricing on ex-Strictly Diamond items!

ALL HF-CL antennas...A$99 each!
Please order by phone; 02 9688 4301/9636 9060/9896 8972,
by email; radioandrews@hotmail.com or by mail;
P.O. Box 10, CAMDEN, NSW, 2570.

Please connect the base section of multi-section/multi-piece
antennas' thin inner brass tube to the next section's thin
brass tube...otherwise the antenna won't work properly!!

We despatch Diamond orders daily from our MASSIVE stock!
Diamond does not manufacture products with 5/16" thread!
Many Diamond antennas listed here are actually in stock!!

PLEASE NOTE; SHOP HOURS ARE 9am~4pm, Monday~Friday!

ANTENNA SHIPMENTS WHICH CAN'T BE AIRMAILED TO NEW
ZEALAND, OR OTHER COUNTRIES, MUST BE AIR-COURIERED!!
AIR-COURIERING ANTENNAS TO NEW ZEALAND COSTS >$200

WE DO NOT FREE-FREIGHT ANY ANTENNAS, SORRY!

AUSTRALIA'S BIGGEST, BEST AND MOST TRUSTED DIAMOND
FACTORY DIRECT IMPORTER SINCE 1978 --> YES, 1978!

Updated 09-09-26

Learn More


Fibreglass dual-band 2m/70cm base station verticals

X-510N 2m/70cm base station vertical antenna

Type $AUD
X-30M 2m/70cm has 3/5.5dB gain, 1.3m long, 1 pc. antenna.
Has SO-239 socket.
 		  $149
Plenty in stock!

X-30N 2m/70cm has 3/5.5dB gain, 1.3m long, 1 pc. antenna.
Has N-type socket.

 $149

SOLD OUT!

Shipment due November!

X-50M 2m/70cm 4.5/7.2dB gain, 1.7m long, 1 pc. antenna.
Has SO-239 socket.

 		 $169

Plenty in stock!

X-50N 2m/70cm 4.5/7.2dB gain, 1.7m long, 1 pc. antenna.
Has N-type socket.

 		  $179

Plenty in stock!

Supplementary shipment due November!

X-200M 2m/70cm 6/8dB gain, 2.5m long, 2 pc. antenna.
Has SO-239 socket.

Please connect the TOP of bottom section's (no. 1 section) thin inner brass tube to the bottom of the top section's (no.2 section) thin brass tube, otherwise the antenna won't work properly.


  $289

Limited stock!

Supplementary shipment due November!

X-200N 2m/70cm 6/8dB gain, 2.5m long, 2 pc. antenna.
Has N-type socket.

Please connect the TOP of bottom section's (no. 1 section) thin inner brass tube to the bottom of the top section's (no.2 section) thin brass tube, otherwise the antenna won't work properly.


  $299

Plenty in stock!

Supplementary shipment due November!

X-300M 2m/70cm 6.5/9dB gain, 3.1m long, 2 pc. antenna.
Has SO-239 socket.

Please connect the TOP of bottom section's (no. 1 section) thin inner brass tube to the bottom of the top section's (no.2 section) thin brass tube, otherwise the antenna won't work properly.
    $329

Plenty in stock!



X-300N 2m/70cm 6.5/9dB gain, 3.1m long, 2 pc. antenna.
Has N-type socket.

Please connect the TOP of bottom section's (no. 1 section) thin inner brass tube to the bottom of the top section's (no.2 section) thin brass tube, otherwise the antenna won't work properly.
 		  $339

Plenty in stock!



X-510N 2m/70cm 8.3/11.7dB gain, 5.2m long, 3 pc. antenna.
Has N-type socket.

Please connect the TOP of the bottom (no.1) section's thin inner brass tube to the bottom of the middle (no.2) section's thin inner brass tube.
Then connect the top of the middle (no. 2) section's thin inner brass tube to the bottom of the top (no.3) section's thin inner brass tube, otherwise the antenna won't work properly.

  $379

Plenty in stock!



X-520M 2m/70cm 8.3/11.7dB gain, 5.2m long, 3 pc. antenna.
Has SO-239 socket.

Please connect the TOP of the bottom (no.1) section's thin inner brass tube to the bottom of the middle (no.2) section's thin inner brass tube.
Then connect the top of the middle (no. 2) section's thin inner brass tube to the bottom of the top (no.3) section's thin inner brass tube, otherwise the antenna won't work properly.

  $379

Plenty in stock!



X-700HN 2m/70cm 9.3/13dB gain, 7.2m long, 4 pc. antenna.
Has N-type socket.

Please connect the TOP of the bottom (no.1) section's thin inner brass tube to the bottom of the next (no.2) section's thin inner brass tube.
Then connect the top of that (no. 2) section's thin inner brass
tube to the bottom of the next (no.3) section's thin inner brass tube.
Lastly, connect the top of that (no. 3) section's inner brass tube to bottom of the top (no.4) section's thin inner brass tube, otherwise the antenna won't work properly.

$599

Limited or no  stock!

Shipment due November!



Base station verticals installed in high wind speed areas should be guyed! Please install base station antennas safely...
We import, sell and recommend JA-version multiband Diamond vertical antennas. Those models covering the 2m and 70cm bands (or more) are centred on 145MHz and 435MHz and will cover 144-148MHz and 430-440MHz. The swr at 148MHz is 1.8:1 to 2:1 and we know of no problems ever encountered due to this swr present at the top of 2m.

These versions have been conclusively proven over the past 44 years to be best suited to the Australian and New Zealand 2m/70cm band plans. Diamond requires very large minimum order quantities (MOQs) per model of antenna when requesting special tuning of any antenna.

Alternatively, we can import "A" suffix (USA) version multiband verticals. However, they would be at higher pricing and their delivery timing would require confirmation. They are centred on 146Mhz and 443MHz (i.e. 8MHz higher on 70cm than the centre of the AUS/NZ 70cm band, which is 435MHz). Therefore, they best cover 144-148MHz and 437-450MHz.

Diamond V/U multiband base station verticals which are tuned specifically for Australia/NZ band plans simply do not exist!

Please note;
M socket is the same as a SO-239 socket and a UHF socket.
N socket is a combination of a BNC socket and a SO-239 socket, whereby the outer body is based on a SO-239 (for strength) and the inner portion is based on a BNC socket (to maintain low loss at UHF & higher frequencies).
N-type connectors were initially designed as a strengthened form of BNC connector for the military, as BNCs often failed in rough military service.

 Most Diamond
products listed on this page
are in stock!







Fibreglass tri-band base station verticals

X-7000N triband high-performance vertical antenna

Type $AUD
V-2000 6m/2m/70cm, has 2.15/6.2/8.4dB gain, SO-239, 2.5m long.
Rated to handle 150W (total). This is a 2-piece fibreglass antenna.

Please connect the bottom section's thin inner brass tube to the top section's thin brass tube, otherwise the antenna won't work properly.
 		 Now...$329

Plenty in stock!

Supplementary shipment due November!

VX-30 2m/70cm, has 2.15/5.5dB gain, 1.3m long.
Rated to handle 150W (total). This is a 1-piece fibreglass antenna


 		 $149

Plenty in stock!
VX-30N 2m/70cm, has N-socket and 2.15/5.5dB gain, 1.3m long.
Rated to handle 150W (total). This is a 1-piece fibreglass antenna.


 		 $149
Plenty in stock!
VX-50 2m/70cm, has 4.5/7.2dB gain, 1.7m long. Weighs 0.85kg.
Rated to handle 150W (total). This is a 1-piece fibreglass antenna
 		 $169
Plenty in stock!

Supplementary shipment due November!

VX-50N 2m/70cm, has N-socket and 4.5/7.2dB gain. Length; 1.7m.
Rated to handle 150W (total). This is a 1-piece fibreglass antenna.
 		 $179

SOLD OUT!

Shipment due November!

VX-4000(N) 2m/70cm/23cm has 2.6/5.8/9.2dB gain, 1.3m long.
Rated to handle 100W (total). This is a 1-piece fibreglass antenna.
Has N-socket.

 		 $289

Plenty in stock!

X-5000N 2m/70cm/23cm has 4.5/8.3/11.7dB gain, 1.8m.
This is a 1 pc. antenna.
Has N-socket.
 		  $299

Sold out!

 Shipment due November!

X-6000N 2m/70cm/23cm has 6.5/9/10dB gain, 3.05m long.
This is a 2 pc. antenna.
Has N-socket.

Please connect the TOP of bottom section's (no. 1 section) thin inner brass tube to the bottom of the top section's (no.2 section) thin brass tube, otherwise the antenna won't work properly.

 $399

PLENTY IN STOCK!




X-7000N 2m/70cm/23cm has 8.3/11.7/13.7dB gain, 5m long.
This is a 3 pc. antenna.
Has N-socket.

Please connect the TOP of the bottom (no.1) section's thin inner brass tube to the bottom of the middle (no.2) section's thin inner brass tube.
Then connect the top of the middle (no. 2) section's thin inner brass tube to the bottom of the top (no.3) section's thin inner brass tube, otherwise the antenna won't work properly.


 $499
 (was A$549)

New low price!

PLENTY IN STOCK!

Supplementary shipment due November!

Please note;
M socket is the same as a SO-239 socket and a UHF socket.
N socket is a combination of a BNC socket and a SO-239 socket, whereby the outer body is based on a SO-239 (for strength) and the inner portion is based on a BNC socket (to maintain low loss at ultra high frequencies).
N-type connectors were initially designed as a strengthened form of BNC connector for the military, as BNCs often failed in military service.


NEW!

2m and 2m/70cm aluminium base station yagis

ALL-NEW DESIGN!

A1430S8 dual-band yagi antenna has
stronger, longer boom & higher gain!

Type $AUD
A144S5R2 2m 5-element yagi, 9.1dBi gain, 0.95m long boom.
Rated to handle 50W. Covers 144~148MHz. SWR up at 148MHz
is around 2:1. Has SO-239 socket fitted.

 		 NEW model!

$119

Plenty in stock!

A144S10R2 2m 10-element yagi 11.6dBi gain, 2.13m long boom. Rated to handle 50W. Covers 144~148MHz.
Has SO-239 socket fitted.

 		 NEW model!

$189

Plenty in stock!

A430S10R2 70cm 10-element yagi 13.1dBi gain, 1.19m long boom.
Rated to handle 50W. Covers 430~440MHz at low SWR.
Has SO-239 socket fitted.

 		 NEW model!

$149

Plenty in stock!

A430S15R2 70cm 15-element yagi 14.8dBi gain, 2.25m long boom.
Rated to handle 50W. Covers 430~440MHz at low SWR.
Has SO-239 socket fitted.
 		 $219

Plenty in stock!

A1430S8 2m/70cm 7-element dual-band yagi.
Phase-driven-element type yagi has 3-el. on 2m & 5 el. on 70cm.

Mechanically stronger AND higher gain design!
New longer boom is 1.4m long.



ALL-NEW DESIGN!

Gain increased to 9dBi on 2m and 10dBi on 70cm
in this all-new Yagi-Uda based design!

Covers 144~148MHz and 430~440MHz.
Designed for end-fire vertical polarisation mounting!

Rated to handle 100W FM RF power (total combined RF power).
Has SO-239 socket fitted.


 ALL-NEW DESIGN!

$499

Plenty in stock!




6m or 2m or 23cm MONO-BAND base station verticals

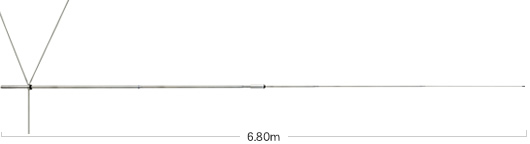

CP-62 6m mono-band high gain vertical

Type $AUD
CP62 NEW! 6m/50MHz band. Double 5/8 wave design with three ~1.5m long 1/4-wave radials. Has very low 15˚ radiation angle and 5.5dBi gain for DX'ing! 6.8m long. Accepts up to 500W SSB, 200W FM. Weighs 2.7kg.

$399

Sold out!

Due November!








F-1230AN Mk.II 23cm, 14 x 5/8 waves, has N-F socket, 13.8dBi gain, is 3.53m long, 100W SSB rated, weighs 1.7kg. Accepts 30-62mm tube.









Place your order with deposit for the earliest availability!
Deposit is requested only when Diamond confirms availability		 $349

Sold out!

Place your order with deposit for the earliest availability!

Price is subject to confirmation!
F-23 2m, triple 5/8 wave, 7.8dB gain and is 4.6m long.

Please connect the bottom (no.1) section's thin inner brass tube to the middle (no.2) section's thin inner brass tube, then connect the middle section's thin inner brass tube to the top (no.3) section's thin inner brass tube, otherwise the antenna won't work properly.


 $299

In stock!


F-23H 2m, Hardened, triple 5/8 wave, 7.8dB gain and is 4.6m long.

Please connect the bottom (no.1) section's thin inner brass tube to the middle (no.2) section's thin inner brass tube, then connect the middle section's thin inner brass tube to the top (no.3) section's thin inner brass tube, otherwise the antenna won't work properly.

 $349

In stock!




Please note;
M socket is the same as a SO-239 socket and a UHF socket.
N socket is a combination of a BNC socket and a SO-239 socket, whereby the outer body is based on a SO-239 (for strength) and the inner portion is based on a BNC socket (to maintain low loss at ultra high frequencies).
N-type connectors were initially designed as a strengthened form of BNC connector for the military, as BNCs often failed in military service.


HF and HF+ base station antennas



CP-6S 3.5MHz to 50MHz base station vertical antenna

Type $AUD
BB7V Broadband 2-30MHz continuous frequency coverage tubular aluminium vertical antenna (compare to Comet CHA-250B). Max. power 250W. SWR <2:1, 2.3kg wt. Length of 6.7m when fully deployed or 1.53m long when fully collapsed for storing or shipping.
 		  $599

Plenty in stock!



BB6WS 2-30MHz continuous frequency coverage long wire antenna. Max. power 250W. SWR <2:1. Weight 0.8kg. Length 6.4m.


 $399

Plenty in stock!

CP-5HS Mk.II (replaces CP-5HS). Covers 7-14-21-28-50Mhz, vertical, 3.6m long. Handles 200~500W depending upon frequency band. New model. CP-5HS Mk.II has new "cable with core", self amalgamating tape - and an insulation ring added to the mast bracket set.

$699

Plenty in stock!



CP-6S 80m~6m (3.5-7-14 -21-28-50MHz) base station vertical

CP-6S 80m~6m (3.5-7-14 -21-28-50MHz) base station vertical is 200W RF power rated, weighs 4.9kg. and is 4.6m long. Has six radials (5 are tuneable trapped radials) with each approximately 1.8m long.

This new CP-6S model has "15226 cable with core" and "15227 self amalgamating tape" upgrades. CP-6S antenna has independently tuneable radials. SO-239/UHF-F/M-F socket fitted.

Please don't assume a new antenna is faulty, as <0.1% of new high quality antennas (such as Diamond) may be faulty! However, >80% of
the time new antenna issues are subsequently proven to NOT be due
to a faulty antenna!

Faults are often found in coaxial cable connections, coaxial cable issues such as incorrect length re wavelength (taking into account velocity factor, of course), poor choice of antenna location, zero or inadequate RF earthing, etc., etc., but NOT in the new antenna!!!


 $649

Plenty in stock!

Supplementary shipment due November!



CP-ATU 80m~6m (3.5-7-14 -21-28-50MHz) portable/base station vertical is 300W RF power rated, weighs 2.5kg. and is 4.6m long.

CP-ATU multiband vertical is designed to work exclusively with external automatic high-impedance long-wire type antenna tuners such as AH-4, AH-730, AH-705, FC40, etc.

An effective ground plane is essential for the CP-ATU to perform properly. It is recommended to fit three 10m long radials OR mount the CP-ATU directly onto a metal railing or balcony.

CP-ATU will not work with most internal auto antenna tuners or some limited impedance tuning range manual antenna tuners!		 $579

In stock!
R1 radial, for 3.575~3.650MHz tuning of CP-6 vertical, 1.8m.
 		 $129

Plenty in stock!
R2 radial, for 3.650~3.725MHz tuning of CP-6 vertical, 1.8m.
 		 $129

Limited stock
CP-610 28/50MHz 3.4/5.5dB gain, 6.8m long vertical 5/8-wave 10m, 2 x 5/8-wave 6m type w/3 radials. 10m 500W SSB, 6m 200W FM rated.


 $349

Plenty in stock!

CP-8040 80m/40m vertical base station antenna, 6.5m long.

Deposit is requested only when Diamond confirms availability

 $599

Sold out!

Place your order with deposit for the earliest availability!

Price is subject to confirmation!



NEW DESIGN CP-VU8 80m~70cm vertical!

New design CP-VU8 covers 200kHz on 40m (was 100kHz)!
Now covers 7.0~7.2MHz (was 7.0~7.1MHz) on 40m band.

Now covers 51~53MHz* (was 50~52MHz) on 6m band.
The 6m passband is shifted up by 1MHz!

New design CP-VU8, 80m~70cm (main bands), 2.7m long,
200W rated, black. Covers 3.5~3.575, 7~7.2, 14~14.35, 21~21.45, 28~29.7, 51~53MHz (200W SSB, 50W CW rated) as a 1/4-wave. Covers 144~146MHz as 1/2-wave (150W FM, 2.15dB gain) and 430~440MHz (150W FM, 5.5dB gain) as 2 x 5/8waves. 2.7m long.

YES, tuneable on HF bands and on the 6m* band!

CP-VU8 should be mounted >1.5m above ground.

Optimum mounting height above ground for multiband or broadband verticals covering ALL HF AMATEUR BANDS is 3m, as it's the best compromise of optimum radiation angle for DXing on each band vs.
best compromise of effective ground plane required on each band.

This antenna is proven to perform properly on the 80m to 70cm bands when mounted on a poor ground plane, e.g. metal balcony railing, etc.
Limited tuning on the 6m band. As this is quite a short antenna on most of the HF bands, compared to a 1/4-wave vertical, please don't expect "full-sized" HF vertical antenna performance, especially on the 80m and 40m bands! That said, everyone who has purchased this antenna has been quite happy with it. *6m band tuning is possible only by adjusting the 6m ground plane radial.

NEW DESIGN CP-VU8!!

 Now...$799

PLENTY IN STOCK!






HFV5 Rotatable V-dipole 7/14/21/28/50MHz - handles 150W SSB on 7/14MHz and 220W on 21/28/50MHz, 4m long, 1.95kg.

 		 $599

PLENTY IN STOCK!






HFV330 HF rotatable V-dipole! Covers 3.5~30MHz. Use its long element for 3.5~25MHz or its short element for 21~30MHz coverage. Element length is 2.53m each side of "V". Handles only 80W CW, 300W SSB max. Weighs 5.9kg.Turning radius ~1.9m. Inc. SDC2 controller!
Includes approved AC/DC 500mA plug-pack and 15m of control cable!

Price is subject to confirmation!
Deposit is requested only when Diamond confirms availability!
 $1699

Sold out!

Please place your order
with deposit
WD-330 2~30MHz double folded dipole wire antenna is 25m long and weighs 3.1kg (excepting coaxial cable). Maximum RF power; 150W pep SSB. VSWR; <2:1 across 2~18MHz, <3:1 across 18~30MHz.

Includes necessary 6:1 balun (as feedpoint impedance is ~300 ohms without 6:1 balun) and opposing 390 ohm essential terminating resistor rated at 50W which absorbs ~1/3 of RF drive power. Performs best at 20˚~30˚ sloping angle.
Yes, includes 30m of 5D-2V coaxial cable fitted with MSO-239/UHF socket connector. ! Plastic rope is NOT included with WD-330!

 $499

Plenty in stock!










WD-330S 2~28.6MHz tilted folded dipole (T2FD) wire antenna is 10m long and weighs 1.7kg. with two 10m long plastic ropes (without coaxial cable). Maximum RF power; 150W pep SSB. VSWR; ~2:1 across 2~18MHz, ~3:1 across 18~28.6MHz. Includes necessary 6:1 balun (as feedpoint impedance is ~300 ohms without 6:1 balun) and opposing 390 ohm essential terminating resistor rated at 50W which absorbs ~1/3 of RF drive power. Performs best at 20˚~30˚ sloping angle.
Coaxial cable is NOT included with ED-330S model!
 		 $449

Sold out!

Shipment due November!

W-735 80/40m (3.5/7MHz) dual-band dipole, 26m long.


 		 $219

Plenty in stock!

W-8010 80/40/20/15/10m multiband trapped dipole/inverted "V" combination wire antenna, 19.2m long.


 $329

Plenty in stock!

Dipoles, verticals, yagis, etc., may need re-tuning, depending upon their height above ground and also due to the proximity and surface area of nearby objects (especially metallic surfaces), etc.

Most of the above antennas are in stock most of the time!

Scoop purchase of last Diamond
products from Strictly Ham here!

HF and HF+ mobile and portable antennas

DIAMOND SD330 HF screwdriver motor driven antenna

All these mobile antennas have a PL-259 integrated into their base section

Diamond Antenna does not manufacture any antennas
or accessories which have 5/16" brass thread fittings.

Type $AUD
CR-8900 10m/6m/2m(2.15dBi)/70cm(5.5dBi) mobile whip, 60W rated, 1.26m in length. Has inbuilt PL-259 plug.

 Also see CR-8900-ACS on our Andrews Antennas page... 		$179

Plenty in stock!
NEW HV5S HF/VHF/UHF MOBILE antenna arrived!

HV5S --> HF/VHF/UHF mobile antenna; 7/21/50/144/430MHz.
Length is 1.4m. Weighs 470g. Has 3.4dBi gain on 70cm. Max. power; 120W SSB on 7, 21, 50MHz bands, 200W SSB on 144 & 430MHz.
Design; 1/4-wave on 7, 21, 50 & 144MHz and 5/8-wave on 430MHz.
Has inbuilt PL-259 plug.


 $199
 In stock!


RHM10 Portable 7MHz~430MHz antenna is 0.5~1.77m long. Weighs 300g., handles 130W SSB. Tunes as loaded 1/4-wave on HF, as 1/4-wave on 50MHz/144MHz and as 5/8-wave on 144MHz/430MHz.
Has inbuilt PL-259 plug. NOT suitable as a mobile antenna.

Please use RHM10 only as a portable antenna, NOT mobile!
 		 $269
 Limited or no stock!
RHM-12 Portable HF-VHF-UHF tunable antenna.
Covers 7~440MHz (40m~70cm), 60cm~275cm long. RF power ratings; 120W SSB/40W CW, AM, FM. Weighs 350g. Optional 160m/80m operation by adding RHMC-12. See below...

New low price thanks to scoop purchase from Strictly Ham!



Listing duplicated below for added reference

 Now...$399
(was A$499)

Plenty in stock!

New low price thanks to scoop purchase from Strictly Ham!

RHMC-12 Optional coil kit for 160m/80m operation of RHM-12 antenna.

New low price thanks to scoop purchase from Strictly Ham!




Listing duplicated below for added reference

 Now...$199
(was A$229)

Plenty in stock!

 New low price thanks to scoop purchase from Strictly Ham!

SD330 "Screwdriver" motor driven 3.5-30MHz mobile antenna is 1.7-1.85m long, weighs 1.1kg., handles 200W SSB. SWR is normally <2:1 and is dependent upon the ground plane surface area. Requires 12Vdc @ 100mA. The SD330 takes 50 seconds to tune from 3.5 to 30MHz...
Has inbuilt PL-259 plug
 		  $799
 Plenty in stock!
SDC1 Tuning controller; for controlling the SD330 antenna. Features a neat 2-line LCD which can display both frequency and coil turns count. Requires 12Vdc (within 9~14.5V range is OK) @ 200mA. Size; 84w x 120d x 32h mm. Weight; 380g.

Cigarette lighter lead is 1200mm long from controller to lighter plug.
The SDC-1's controlling wires are 800mm long from the controller to the fitted bullet type connectors. These bullet connectors should be plugged into the matching bullet connectors which are fitted at the end of the antenna's controlling wires. Both the cigarette lighter leads and the controlling wires are hardwired into the SDC-1 controller.

Do NOT mount the SDC-1 in direct sunlight, such as on the top of the dashboard, as severe damage due to excessive heating may occur!
To protect the sophisticated electronics within the SDC-1, do NOT use the SDC-1 in strong magnetic fields or in conditions of high humidity
or high temperatures! The SDC-1 is NOT waterproof!

 $349

Plenty in stock!











Scoop purchase of last Diamond
products from Strictly Ham here!

HF-FX & RHM series of mobile antennas



RHM-12 Portable HF-VHF-UHF tunable mobile antenna

Below mobile antennas have a PL-259 integrated into their base section
We don't recommend mounting antennas >1m long on heavy vehicles!
We don't recommend mounting >1m long antennas on diesel vehicles.

Diamond Antenna does not manufacture any antennas
or accessories which have 5/16" brass thread fittings.

Type $AUD
RHM-12 Portable HF-VHF-UHF tunable antenna.
Covers 7~440MHz (40m~70cm), 60cm~275cm long. RF power ratings; 120W SSB/40W CW, AM, FM. Weighs 350g. Optional 160m/80m operation by adding RHMC-12. See below...

New low price thanks to scoop purchase from Strictly Ham!


Listing duplicated above for added reference

 Now...$399
(was A$499)

Plenty in stock!

 New low price thanks to scoop purchase from Strictly Ham!

RHMC-12 Optional coil kit for 160m/80m operation of RHM-12 antenna.

New low price thanks to scoop purchase from Strictly Ham!


Listing duplicated above for added reference		 Now...$199
(was A$229)

Plenty in stock!


HF-80FX 80m (120W), 1.4m long. Low swr tuning only up to ~3.6MHz.

 		  Now...$129
(was A$149)

Plenty in stock!

HF-40FXW 40m (200W rated), 1.4m long




 Now...$129
(was A$149)

Plenty in stock!

HF-30FX 40m (220W rated), 1.4m long

New low price thanks to scoop purchase from Strictly Ham!

 Now...$129
(was A$149)

Plenty in stock!

HF-20FX 20m (220W rated), 1.2m long


 $129

Plenty in stock!

HF-15FX 15m (220W rated), 1.2m long
 		 $129

In stock!

HF-10FX 10m (250W rated), 1.1m long


 		 $129

In stock!

HF-6FX 6m (250W rated), 1.0m long

 		 $129

Plenty in stock!

Almost all of the above HF-FX series antennas are normally in stock!

Scoop purchase of last Diamond
products from Strictly Ham here!

ALL HF-CL antennas...A$99 each!

HF-CL series are long and rugged mobile antennas
...for better performance, overall!

HF-CL series mobile antennas have a "handy" screw-
type 'hex' locking collar above their base section for
hand-locking of these antennas' fold-over section!



HF-20CL 20m mobile antenna

Below mobile antennas have a PL-259 integrated into their base section.
We don't recommend mounting antennas >1m long on heavy vehicles!
We don't recommend mounting >1m long antennas on diesel vehicles.

Diamond Antenna does not manufacture any antennas
or accessories which have 5/16" brass thread fittings.

Type $AUD
HF-80CL 80m/3.5MHz (120W SSB/40W FM rated), 2.2m long.

 		 $99

Plenty in stock!

HF-40CL 40m/7MHz (200W SSB/70W FM rated), 2.2m long.


$99

Plenty in stock!

Supplementary shipment due November!

HF-30CL 30m/10MHz (200W SSB/70W FM rated), 2.2m long.

Last HF-30CL stock from Strictly Ham here

 $99

Plenty in stock!

HF-20CL 20m/14MHz (200W SSB/70W FM rated), 2.2m long.

 		 $99

Plenty in stock!

HF-16CL 16m/18MHz (200W SSB/70W FM rated), 2.2m long.
We request a deposit when you order this "special order" product,
as we don't normally stock this product.

Price is subject to confirmation!
 Deposit is requested only when Diamond confirms availability!		 $99

SOLD OUT!

Please place your order
with deposit!

HF-15CL 15m/21MHz (200W SSB/70W FM rated), 2.2m long.

Last HF-15CL stock from Strictly Ham here
 		 $99

Plenty in stock!
HF-10CL 10m/28MHz (200W SSB/70W FM rated), 2.2m long.

 		 $99

Plenty in stock!

HF-6CL 6m/50~54MHz (200W SSB/70W FM rated), 2.2m long.

 		 $99
In stock!
Most of the above HF-CL series antennas are in stock most of the time!

Scoop purchase of last Diamond
products from Strictly Ham here!

Mobile 2m and 2m/70cm Super Gain series s/s whips

SG-7500 2m/70cm mobile high-spec. antenna

(S/S = stainless steel whip sections)

All these mobile antennas have a PL-259 integrated into their base section.

 We don't recommend mounting antennas >1m long on heavy vehicles!
We don't recommend mounting >1m long antennas on diesel vehicles.

Diamond Antenna does not manufacture any antennas
or accessories which have 5/16" brass thread fittings.

Type $AUD
SG-2000 2m-only! Has 5.2dB gain, 150W rated and is 1.59m long

 New low price thanks to scoop purchase from Strictly Ham!		 Now...$99
(was A$119)

Plenty in stock!

New low price thanks to scoop purchase from Strictly Ham!

SG-7000 2m/70cm. Has 2.15/3.8dB gain and is 47cm long

New low price thanks to scoop purchase from Strictly Ham!

 Now...$99
(was A$129)

Plenty in stock!

SG-7100R 2m/70cm. Has 2.15/4.8dB gain and is 62cm long


New low price thanks to scoop purchase from Strictly Ham!		 Now...$99
(was A$129)

Plenty in stock!

SG-7200 2m/70cm. Has 3.2/5.7dB gain and is 96cm long

 		 $139

Plenty in stock!

SG-7400 2m/70cm. Has 2.15/5.5dB gain and is 99cm long


 		 $149

Plenty in stock!

SG-7500 2m/70cm. Has 3.5/6dB gain and is 1.06m long

Our most popular Diamond dual-band mobile antenna!!

 		 $159

In stock!

Supplementary shipment due November!
SG-7700 2m/70cm. Has 4.3/6.8dB gain and is 1.27m long


We don't recommend the long SG-7700 be used on 4WD and other heavy vehicles due to stronger vibration in those vehicles and a greater chance of damage from hitting overhead objects, e.g. tree branches!		 $179

Plenty in stock!
SG-7900 2m/70cm. Has 5/7.6dB gain and is 1.58m long.

Probably the best dual-band high gain mobile antenna ever made!!
We don't recommend the longer SG-7900 be used on 4WD and other heavy vehicles due to stronger vibration in those vehicles and a greater chance of damage from hitting overhead objects, e.g. tree branches!
  $219

Plenty in stock!


Almost all of the above SG-series antennas are in stock!

Scoop purchase of last Diamond
products from Strictly Ham here!

Mobile tri-band Super Gain series s/s whips

(S/S = stainless steel whip sections)

All these mobile antennas have a PL-259 integrated into their base section.

We don't recommend mounting antennas >1m long on heavy vehicles!
We don't recommend mounting >1m long antennas on diesel vehicles.

Diamond Antenna does not manufacture any antennas
or accessories which have 5/16" brass thread fittings.

Type $AUD
SG-9500M 2m/70cm/23cm 3.15/6.3/9.7dBi gain, 1m long.

 New low price thanks to scoop purchase from Strictly Ham!		 Now...$149
(was A$179)

In stock!

New low price thanks to scoop purchase from Strictly Ham!

SG-9500N 2m/70cm/23cm 3.15/6.3/9.7dBi gain, 1m long. Has N-plug.

New low price thanks to scoop purchase from Strictly Ham!
 		 $189

In stock!

SG-9600 6m/2m/70cm 1.5/2.15/5.2dBi gain, 0.82m long


New low price thanks to scoop purchase from Strictly Ham!		 Now...$149
(was A$189)

$189

Plenty in stock!

SG-9700 6m/2m/70cm 2.15/3/5.8dBi gain, 1.07m long.

 		 $189

In stock!

Please note;
M socket is the same as a SO-239 socket and a UHF socket.
N socket is a combination of a BNC socket and a SO-239 socket, whereby the outer body is based on a SO-239 (for strength) and the inner portion is based on a BNC socket (to maintain low loss at ultra high frequencies).
N-type connectors were initially designed as a strengthened form of BNC connector for the military, as BNCs often failed in military service.

Most of the above triband mobile SG-series antennas are in stock!



Scoop purchase of last Diamond
products from Strictly Ham here!

Mobile multi-band Super Gain Mini series s/s whips



SG-M510 2m/70cm antenna!

(S/S = stainless steel whip sections)

All these mobile antennas have a PL-259 integrated into their base section.

We don't recommend mounting antennas >1m long on heavy vehicles!
We don't recommend mounting >1m long antennas on diesel vehicles.

Diamond Antenna does not manufacture any antennas
or accessories which have 5/16" brass thread fittings.

Type $AUD
SG-M506R 2m/70cm 2.15/4.8dBi gain, 60W (total), 63cm long
Last stock of SG-M506R from Strictly Ham!		  $99

Limited stock!
SG-M507 2m/70cm 2.15/5.2dBi gain, 70W (total), 73cm long  $99

Sold out!
SG-M510 2m/70cm 2.15/5.5dBi gain, 100W (total), 96cm long   $99

 YES, IN STOCK!
SG-M911 6m/2m/70cm 3dBi (2m)/5.8dBi (70cm), 60W, 1.1m long $99

Sold out!
Super Gain Mini series antennas; subject to availability from Diamond!

Please place your order with deposit! Price is subject to confirmation!
Deposit is requested only when Diamond confirms availability!
Some are special-order antennas, which we don't normally stock.



Scoop purchase of last Diamond
products from Strictly Ham here!

Black mobile 2m/70cm NR series s/s whips

NR-770HB 2m/70cm black antenna

(S/S = stainless steel whip sections. "B" suffix = Black colour)

All these mobile antennas have a PL-259 integrated into their base section.

We don't recommend mounting antennas >1m long on heavy vehicles!
We don't recommend mounting >1m long antennas on diesel vehicles.

Diamond Antenna does not manufacture any antennas
or accessories which have 5/16" brass thread fittings.

Type $AUD
NR-770R Stainless steel, 2.15/5.5dB, 0.98m long (black enclosed coil)


 		 $79

Plenty in stock!

Supplementary shipment due November!

NR-770H Stainless steel, 2.15/5.5dB, 1.02m long (air-spaced coil)
 		 $79

In stock!

Supplementary shipment due November!

NR-770HB BLACK, 2.15/5.5dB, 1.02m long (air-spaced coil)





 $89

 Plenty in stock!
NEW NR series antenna boasts extra-high gain!

NR-780R. 3.4/6.0dB, 1.1m long (black enclosed coil), 150W rated.
Last stock of NR-780R from Strictly Ham!

$99

Plenty in stock!

NEW NR series antenna boasts extra-high gain!

NR-950M Multiband mobile antenna boasts extra-high gain on 2m & 70m with 3.15/6.3dBi gain!
Transmittable on 144/430 & 900MHz (8.7dBi on 900MHz) bands!
Receive only on 150/300/450/800MHz bands. Length is 0.99m.
Max. power; 200W 2m, 120W 70cm & 50W 900MHz.


 $149
(was A$169)

Plenty in stock!

Extra-high gain antenna!
NR-7700 Medium duty, 3/5.5dB, 1m long, (black enclosed coil).

High level of combined RF power rating of 250W!

Total RF power rating of 250W explained;

E.g. OK to transmit 150W output on 2m AND 100W output on 70cm
 simultaneously (i.e. total of 250W RF power in combining 2m+70cm)!

E.g. OK to transmit 250W on 2m and ZERO power on 70cm
simultaneously (i.e. total of 250W RF power).
 		 Now $149
(was A$169)

Plenty in stock!



Mobile multi-band AZ-series s/s whips.
Limited stock of some AZ-series antennas.



 AZ-510FXH 2m/70cm antenna

(S/S = stainless steel whip sections)

All these mobile antennas have a PL-259 integrated into their base section.

We don't recommend mounting antennas >1m long on heavy vehicles!
We don't recommend mounting >1m long antennas on diesel vehicles.

Diamond Antenna does not manufacture any antennas
or accessories which have 5/16" brass thread fittings.

Type $AUD
AZ-503 2m/70cm --/1.69dBi gain, 50W (total), 34cm (air-spaced coil)  P.O.A.
AZ-504FX 2m/70cm ---/2.15dBi gain, 50W (total), 39cm long P.O.A.
AZ-506FX 2m/70cm 2.15dBi/4.5dBi gain, 50W (total), 67cm long  P.O.A.
AZ-507FXH 2m/70cm 2.15dBi/4.9dBi gain, 50W, 75cm long P.O.A.
AZ-510 2m/70cm 2.15dBi/5.5dBi gain, 50W, 92cm long P.O.A.
NEW V+V+U triband mobile antenna here!

AZ-910 6m/2m/70cm 2.15dBi/5.5dBi gain, 50W, 95cm long.
Design; 1/4-wave 6m, 1/2-wave 2m & 2 x 5/8-wave 70cm


 $99

Plenty in stock!
Place your order with deposit. Price is subject to confirmation!
Deposit is requested only when Diamond confirms availability.
Most AZ antennas special-order; requiring a deposit with your order

SMA male/plug handheld whips

Type $AUD
SRH-36 2m/70cm bands. 36cm long



Price is subject to confirmation!
Deposit is requested only when Diamond confirms availability!		  $49
SOLD OUT!

Please place your order
with deposit!
SRH-519 2m/70cm. 21cm long. $49

Plenty in stock!
SRH-701 2m/70cm. 21cm long.  $49

Plenty in stock!

SRH-770S 2m/70cm. 70cm long.
Gain on 2m; 2.15dBi. Gain on 70cm; 4.5dBi. Weighs 45g

Price is subject to confirmation!

 $59

SOLD OUT!

Place your order!
SRH-771 2m/70cm. 40cm long.
See also SRH-771-ACS on Andrews Antennas page...

 		  $59

Plenty in stock!
SRH-789 95MHz-1100MHz telescopic scan antenna, 20cm~80cm long.
See also SRH-789-ACS.
 		 $79

Plenty in stock!
SRH-805S 2m/70cm/23cm. 4.5cm long.
See also SRH-805S-ACS.

 		 $59

 Plenty in stock!

SRJ-805S Female SMA fitted! Ideal for most China made 2m/70cm bands handheld transcejvers. Covers 2m/70cm/23cm. Is 4.5cm long.
This antenna is fitted with a reverse-gender SMA connector.

See also conventional (SMA-male) SRH-805S-ACS, above.

Price is subject to confirmation! This is a special order antenna!
Deposit is requested only when Diamond confirms availability!		 $49

Sold out!

 Place your order!
SRH-815S 2m/70cm/23cm. 15cm long.
 		 $49

Limited stock!
SRH-940 TRIBAND 6m/2m/70cm, (2.15dB gain 70cm), 45cm long. Receive-only bands; 150/300/450/900MHz! Handles 10W. Wt. is 44g.

 		 $69

Plenty in stock!
SRH-999 6m/2m/70cm (2.15dB)/23cm (5.5dB) is 51cm long.
Receive-only bands; AM/FM BC and 120/150/300/450/900MHz.
10W max. Weighs 65g.

 		 $99

Limited stock!

Supplementary shipment due November!

Most of the above antennas are in stock most of the time!

BNC male/plug handheld whips

Type $AUD
RH-205 Telescopes to 5/8-wave or 1/4-wave on 2m. BNC whip.
Extends from 23cm to 134cm in length


Price is subject to confirmation! This is a special order antenna!
Deposit is requested only when Diamond confirms availability!
 		  $69

Sold out!

Place your order!


RH-519 2m/70cm, 20cm long, thin 1/4-wave BNC, 10W max. power.
Receive-only bands; 120/150/300/450/800MHz.



 $49

Plenty in stock!
RH-771 2m/70cm, 8-bands, 40cm long BNC whip, 10W max. power.
Receive-only bands; 120/150/300/450/800/900MHz.

 		 $49

Plenty in stock!

RH-799 70-1,000MHz. Has adjustable length and adjustable tilt, 2.15dB gain, extends from 19.5cm to 113.5cm long, BNC whip.
Operates as a 1/4-wave from 70~300MHz.

Price is subject to confirmation!
Deposit is requested only when Diamond confirms availability!		 $69

Sold out!

Place your order!

Most of the above antennas are in stock most of the time!

K9000 motorised antenna mount and fittings



K9000 mount

Shown with optional KTH bracket and optional SG series antenna.
All options are at extra cost. Photo for illustration purposes only.

We don't recommend mounting antennas >1m long on heavy vehicles!
We don't recommend mounting >1m long antennas on diesel vehicles.

Type $AUD
K9000; 0° to 90° angular movement takes about 4 secs. to complete.
Requires 13.8Vdc @ 0.95A. Antenna max. length 1.4m, weight <350g.

The K9000 cannot be properly installed or mounted unless the K9000 is fitted with a suitable mounting bracket!

See suitable mounting brackets listed below...
 		 K9000...$149

Plenty in stock!



KLR; Roof rail mounting bracket         Model KLR
...$69

Plenty in stock!



KRR Rooftop railing side-mounting bracket  Model KRR
...$69

Plenty in stock!


KRS; Roof side gutter mount bracket
 		 Model KRS
...$69

Plenty in stock!


KTH Trunk lip/hatchback mounting bracket
 		  Model KTH
...$69

Plenty in stock!


Most K9000 antenna brackets are in stock most of the time!
Please contact us for availability of particular model brackets...

Scanning receiver antennas...for base station use

D130J discone antenna

*******************

DPKE137 discone antenna for weather satellites

Type $AUD
DPKE137 Discone. Receiving antenna for weather satellites NOAA and ACARS aircraft transmission. Circular polarisation. Covers 135~137MHz weather band. Total height is 1m. Weighs 1.1kg

Mast diameter accepted 25mm~52mm. Has SO-239 socket fitted!

  $449

Plenty in stock!


D777. VHF AIRBAND VERTICAL. Covers 120MHz with 3.4dBi and 300MHz with 5.5dBi gain on receive. Fibreglass radome (tube)
Total height is 1.7m. Weighs 1kg. Has SO-239 socket fitted!
 		  $229

Sold out!

Shipment due November!

D-3000N Discone. Covers 25-3,000MHz on receive with ~2dBi gain!

Total height is 1.7m. Weighs 1kg. Has N-J (N-type) socket fitted!

Max. RF power; 50W SSB/20W FM on 50MHz, 200W from 144MHz up...		  $249

Plenty in stock!



D-130J Discone. Covers 25-1300MHz on receive with ~2dBi gain

Has SO-239 (UHF-female/M-J) socket fitted. Total height is 1.7m.

Transmittable on 50, 144, 430, (904) & 1296MHz amateur bands!

  $249

Plenty in stock!

Supplementary shipment due November!

D-130NJ Discone. Covers 25-1300MHz on receive with ~2dBi gain!

Has N-J (N-type) socket fitted! Total height is 1.7m.

Transmittable on 50, 144, 430, (904) & 1296MHz amateur bands!		  $229

Limited stock!

Supplementary shipment due November!

D-150 Discone. Covers 50-1500MHz on receive with ~2dBi gain!

Transmittable on 50, 144, 430, (904) & 1296MHz amateur bands!

Deposit is requested only when Diamond confirms availability.
This is a special-order antenna, which we don't normally stock.		 $229

Sold out!

Place your order with deposit!

Mobile "MC" series commercial specification
monoband antennas!

New design NR-240C dualband mobile antenna!




NR-240C dualband mobile antenna

Diamond Antenna does not manufacture any antennas
or accessories which have 5/16" brass thread fittings.

We don't recommend mounting antennas >1m long on heavy vehicles!
We don't recommend mounting >1m long antennas on diesel vehicles.

Type $AUD
MC-103A Commercial specification heavy duty 132~155MHz stainless steel mobile whip antenna. Has 3.2dBi gain. Length is 151.5cm.
Fitted with an integrated PL-259 plug. Rated to 200W RF (FM).
NOT fold-over design. Ideal for the 2m amateur band!		 $69
LIMITED OR NO STOCK
MC-103B Commercial specification heavy duty 150~172MHz stainless steel mobile foldable whip antenna. Has 5.5dBi gain. Length is 141cm. Fitted with an integrated PL-259 plug. Rated to 200W RF (FM).
NOT fold-over design. Ideal for VHF Marine band!		 $69
LIMITED OR NO STOCK
MC-203A Commercial specification 430~470MHz stainless steel mobile foldable whip antenna. Has 5.5dBi gain. Length is 97cm. Fitted with an integrated PL-259 plug. Rated to 200W RF (FM).
NOT fold-over design.
Ideal for the 70cm amateur band!		 $69
LIMITED OR NO STOCK
MC-203B Commercial specification 460~490MHz stainless steel mobile foldable whip antenna. Has 5.5dBi gain. Length is 86cm. Fitted with an integrated PL-259 plug. Rated to 200W RF (FM).
NOT fold-over design.

Ideal for the UHF 63cm band!		 $69
SOLD OUT

Subject to availability!

NR-240C New design 2m/70cm open coil fold-over antenna has 3.8dBi gain on 2m and 6.2dB gain on 70cm.
Accepts up to 150W (total).

Total length of 1.1m. Fitted with an integrated PL259 plug.

Ideal for 2m/70cm dualband mobile amateur radio transceivers!		  $149

IN STOCK!

High gain on both 2m and 70cm bands!
Please place your order with deposit. Price is subject to confirmation!
Deposit is requested only when Diamond confirms availability.
These are special-order antennas which we don't normally stock.

Coaxial antenna switches


CX-310N 3-position coax switch



CX-310A 3-position coax switch

Type $AUD
CX-210A 2-position. Rated to 1.5kW. Has 3 x SO-239 sockets.
Only 0.05dB loss to 500MHz, 0.1dB to 1GHz!
 		  $129

Plenty in stock!

CX-210N 2-position. Rated to 1.5kW. Has 3 x N-type sockets.
Only 0.05dB loss to 500MHz, 0.2dB loss up to 3GHz.


Also consider Andrews CO-201N and Avair SW-2N 2-position N-type coaxial antenna switches, which have similar low loss up to 600Mhz		 $159

Plenty in stock!


CX-310A 3-position. Rated to 1.5kW (to 30MHz, 1kW 30~150MHz, 500W up to 800MHz. Has 4 x SO-239 sockets.
Only 0.1dB loss to 500MHz, 0.15dB to 1GHz! 		$199

Plenty in stock!

CX-310N 3-position. Rated to 1.5kW. Has 4 x N-type sockets.
Only 0.1dB loss to 500MHz, 0.2dB to 1.5GHz! 		$229

Plenty in stock!

Please note;
M socket is the same as a SO-239 socket and a UHF socket.
N socket is a combination of a BNC socket and a SO-239 socket, whereby the outer body is based on a SO-239 (for strength) and the inner portion is based on a BNC socket (to maintain low loss at ultra high frequencies).
N-type connectors were initially designed as a strengthened form of BNC connector for the military, as BNCs often failed in military service.

All of the above CX-series antenna switches are normally in stock!



DIPLEXERS/Duplexers


MX-62M diplexer


MX-62N diplexer

Type $AUD
MX-610

LPF 1.3-30MHz (HF) has MP plug.

HPF 49-470MHz (6m~UHF) has MP plug.

Maximum RF power; 1.3~30MHz up to 200W CW/600W SSB and 49~470MHz up to 200W CW/600W SSB.

Insertion loss; 1.3~30MHz <0.2dB and 49~470MHz <0.25dB.

Isolation; >45dB.

M-J is the common socket.




 $179

Plenty in stock!





MX-62M

LPF 1.6-56MHz (HF+6m) has MP plug.

HPF 76-470MHz (2m+UHF) has MP plug.

Maximum RF power; 1.6~56MHz up to 200W CW/600W SSB and 76~470MHz up to 200W CW/600W SSB.

Insertion loss; 1.6~56MHz 0.2dB / 76~470MHz 0.3dB.

Isolation; >50dB.

M-J is the common socket.




 $159

Plenty in stock!





MX-62N

LPF 1.6-56MHz (HF+6m) has MP plug.

HPF 76-470MHz (2m+UHF) has NP plug.

Maximum RF power; 1.6~56MHz up to 200W CW/600W SSB and 76~470MHz up to 200W CW/600W SSB.

Insertion loss; 1.6~56MHz 0.2dB / 76~470MHz 0.3dB.

Isolation; >50dB.

M-J is the common socket.




 Now...$149
(was $169)

New low price thanks to scoop purchase from Strictly Ham!

Plenty in stock!


MX-72A

LPF 1.6-30MHz and 49-150MHz (HF~2m) has MP plug.

HPF 350-460MHz (UHF) has NP plug.

Maximum RF power; 1.6~30MHz up to 400W CW/1kW SSB, 49~150MHz up to 150W CW/400W SSB and 350~460MHz up to 100W CW/250W SSB.

Insertion loss; 1.6~30MHz 0.1dB, 140~150MHz <0.15dB and 350~460MHz <0.25dB.

Isolation; >60dB.

NJ is the common socket.

 $99

Sold out!

Shipment due November!






MX-72H

LPF 1.6-30MHz+49-150MHz (HF~2m) has MP plug.

HPF 350-460MHz (UHF) has MP plug.

Maximum RF power; 1.6~30MHz up to 400W CW/1kW SSB, 49~150MHz up to 150W CW/400W SSB and 350~460MHz up to 100W CW/250W SSB.

Insertion loss; 1.6~30MHz <0.15dB, 49~150MHz <0.15dB and 350~460MHz <0.25dB.

Isolation; >60dB.

MJ is the common socket.

 $99

Plenty in stock!





MX-72N

LPF 1.6-30MHz+49-150MHz (HF~2m) has MP plug.

HPF 350-460MHz (UHF) has NP plug.

Maximum RF power; 1.6~30MHz up to 400W CW/1kW SSB, 49~150MHz up to 150W CW/400W SSB and 350~460MHz up to 100W CW/250W SSB.

Insertion loss; 1.6~30MHz <0.15dB, 49~150MHz <0.15dB and 350~460MHz <0.25dB.

Isolation; >60dB.

MJ is the common socket.

 $89

Plenty in stock!










Please note;
M socket is the same as a SO-239 socket and a UHF socket.
N socket is a combination of a BNC socket and a SO-239 socket, whereby the outer body is based on a SO-239 (for strength) and the inner portion is based on a BNC socket (to maintain low loss at ultra high frequencies).
N-type connectors were initially designed as a strengthened form of BNC connector for the military, as BNCs often failed in military service.

All of the above MX-series diplexers/duplexers are normally in stock!



Triplexers



MX-3000N triplexer

Type $AUD
MX-2000
LPF 1.6-60MHz has MP / BPF 110-170MHz has MP / HPF 300-950MHz
has MP.

Maximum RF power; 1.6~60MHz up to 400W CW/800W SSB, 110~170MHz up to 400W CW/800W SSB and 300~950MHz up to
250W CW/500W SSB.

Insertion loss; 1.6~60MHz <0.15dB, 110~170MHz, <0.2dB and 300~950MHz <0.25dB.

Isolation; >60dB.

MJ is the common socket.




  $179

Plenty in stock!


MX-2000N
LPF 1.6-60MHz has MP / BPF 110-170MHz has MP / HPF 300-950MHz
has NP

Maximum RF power; 1.6~60MHz up to 400W CW/800W SSB, 110~170MHz up to 400W CW/800W SSB and 300~950MHz up to
250W CW/500W SSB.

Insertion loss; 1.6~60MHz 0.15dB, 110~170MHz 0.2dB and 300~950MHz 0.25dB.

Isolation; >60dB (in amateur band).

MJ is the common socket.

$179

Plenty in stock!







MX-3000
LPF 1.6-160MHz has MP / BPF 350-500MHz has MP / HPF 850-1300MHz has NP.

Maximum RF power; 1.6~160MHz up to 400W CW/800W SSB, 350~500MHz up to 200W CW/500W SSB and 850~1300MHz up to
100W CW/200W SSB.

Insertion loss; 1.6~160MHz <0.2dB, 350~500MHz <0.3dB and 850~1300MHz <0.4dB.

Isolation; >55dB.

NJ is the common socket.

Note; MX-3000 has an N-plug ONLY on the 23cm band!

 $179

Plenty in stock!





MX-3000N
LPF 1.6-160MHz has MP / BPF 350-500MHz has NP / HPF 850-1300MHz
has NP.

Maximum RF power; 1.6~160MHz up to 400W CW/800W SSB, 350~500MHz up to 200W CW/400W SSB and 850~1300MHz up to
100W CW/200W SSB.

Insertion loss; 1.6~160MHz <0.2dB, 350~500MHz, <0.3dB and 850~1300MHz <0.4dB.

Isolation; >55dB.

NJ is the common socket.

MX-3000N has N-plugs fitted on both the 70cm AND 23cm coax leads!

 $199

Plenty in stock!














Please note;
M socket is the same as a SO-239 socket and a UHF socket.
N socket is a combination of a BNC socket and a SO-239 socket, whereby the outer body is based on a SO-239 (for strength) and the inner portion is based on a BNC socket (to maintain low loss at ultra high frequencies).
N-type connectors were initially designed as a strengthened form of BNC connector for the military, as BNCs often failed in military service.

All of the above triplexers are in stock most of the time!



RF power/swr meters



SX-600N RF power/swr meter

Type $AUD
SX-240C CROSS-NEEDLE meter, 3~60MHz (30/300/3kW HF only) and 140-470MHz in two switchable frequency ranges.
Has 4 x SO-239 sockets.

Price is subject to confirmation!		 $399

In stock!

SX-100; 1.6~60MHz 30/300/3kW power ranges.
Has 2 x SO-239 sockets.

 		 $249

 Plenty in stock!

SX-200; 1.8-200MHz and 5/20/200W power ranges.
Fitted with 2 x SO-239s for HF/6m		 $249
Plenty in stock!

SX-400; 140-525MHz 5/20/200W power ranges.
Has 2 x SO-239s

 $269

Plenty in stock!

Shipment here!


SX-400N; 140-525MHz 5/20/200W power ranges.
Has 2 x N-type sockets!


 $289

Plenty in stock!





SX-600; 1.8-525MHz in two switchable frequency ranges and 5/20/200W power ranges.
Fitted with4 x SO-239s for HF/VHF and VHF/UHF.



 Now...$349

 Limited or
no stock!

Shipment due November!




SX-600N; 1.8-525MHz in two switchable frequency ranges and 5/20/200W power ranges.
Fitted with2 x SO-239s for HF/VHF) and 2 x N-sockets for VHF/UHF.

 $369

Plenty in stock!







SX-1100 1.8-160MHz and 430-450, 800-930, 1240-1300MHz in four switchable frequency ranges. Has 5/20/200W power ranges.

Fitted with 2 x N-sockets (VHF/UHF) & 2 x SO-239 sockets (HF/VHF).
 		  $479

Plenty in stock!

Supplementary shipment due November!

Please note;
M socket is the same as a SO-239 socket and a UHF socket.
N socket is a combination of a BNC socket and a SO-239 socket, whereby the outer body is based on a SO-239 (for strength) and the inner portion is based on a BNC socket (to maintain low loss at ultra high frequencies).
N-type connectors were initially designed as a strengthened form of BNC connector for the military, as BNCs often failed in military service.

Limited or no stock of some RF power/swr meter models.


Please note that amateur radio type RF wattmeters do not necessarily display p.e.p (peak envelope power) to a good degree of accuracy. Please consider purchasing a commercial RF wattmeter which has a specially designed and calibrated internal amplifier that enables displaying of p.e.p. to very high levels of accuracy. These are known as "true peak reading" wattmeters. Some of the brands of these wattmeters are; Coaxial Dynamics, Bird, Telewave, etc. We do sell commercial RF wattmeters...


Dummy loads, lightning arrestors, baluns and
common mode filters

DL-50A Dummy load

*********************



SP-1000 Lightning arrestor

Note; SP-1000 has two SO-239 connectors fitted (one socket
at each end). Photo above illustrates a similar model.

Type $AUD
BU-50A New model 1.7~40MHz antenna balun.
Rated to accept up to 1.2kW pep SSB RF.
 Size; 8.5cm wide x 11.5cm high.
Has SO-239/MJ/UHF-F socket.
 $89.00

 In stock!

CMF-250B Common mode filter.
RF power ratings; 250W pep SSB (1MHz~30MHz), 200W pep SSB (30MHz~54MHz). Length of 190mm (inc. connector). Weighs ~300g. Frequency range; 1MHz~54MHz. Common mode attenuation of >30dB with insertion loss of <0.3dB. VSWR; <1.2:1. Impedance; 50 ohms. Connectors; 2 x M-J (SO-239/UHF socket).
 		 $169.00

Plenty in stock!

CMF-2000 Common mode filter.
RF power ratings; 2kW pep SSB (1MHz~54MHz). Length of 380mm (inc. connector). Weighs ~650g. Frequency range; 1MHz~54MHz. Common mode attenuation of >50dB with insertion loss of <0.2dB. VSWR; <1.2:1. Impedance; 50 ohms. Connectors; 2 x M-J
(SO-239/UHF socket).
 		 $229

Plenty in stock!
DL-50A Dummy load, DC~1,000MHz, 20W (5 minutes on, 5 min. off), 50W (1 min. on, 1 min. off), 100W (30 seconds on, 3 minutes off).

 		 $79

Plenty in stock!

DL-50N Dummy load, DC~1,500MHz, 15W continuous, 20W (5 min. on/5 min. off), 50W (1 min on/3 min. off), 100W (30 sec. on/3 min. off). $99
Plenty in stock!

SP-1000 Lightning arrestor. Frequency range; DC~1,000MHz. VSWR; <1.2:1. Insertion loss <0.3dB. Max. RF power; 400W SSB. Weighs 130g. Has two SO-239 connectors fitted (one at each end).
Photo above shows similar model.
 		 $49
Sold out!

Shipment due November!

SP-3000(N) Lightning arrestor. Frequency range; DC~3,000MHz. VSWR; <1.2:1. Insertion loss <0.3dB. Max. RF power; 200W SSB. Weighs 110g. Has two N-F sockets fitted (one at each end).
Photo above shows similar model.

Scoop purchase and last stock of SP-3000(N) from Strictly Ham!

 $69

Plenty in stock!
Please note;
M socket is the same as a SO-239 socket and a UHF socket.
N socket is a combination of a BNC socket and a SO-239 socket, whereby the outer body is based on a SO-239 (for strength) and the inner portion is based on a BNC socket (to maintain low loss at ultra high frequencies).
N-type connectors were initially designed as a strengthened form of BNC connector for the military, as BNCs often failed in military service.

Most of the above accessories are in stock most of the time



Scoop purchase of last Diamond
products from Strictly Ham here!

Brackets, base & lead assemblies and masts


Diamond K415

Wide width (90mm) K415 triple-axis bracket...A$79

Medium width (55mm) K416 triple-axis bracket...A$79

Narrow width (40mm) K412 triple-axis bracket...A$79

(K412 and K416 are similar in design to K415, which is shown above)

Diamond Antenna does not manufacture any antennas
or accessories which have 5/16" brass thread fittings.

Type $AUD
AS-603 Tripod Mast Stand. Approx. 93cm high & folds. Tripod legs are 1m apart, accepts 31mm/34mm pipe dia. Handles 50kg. Wt. 2kg.


Price is subject to confirmation!Deposit is requested only when Diamond confirms availability!		  $269

Please place your order
with deposit
New model!

DAP-450 Antenna mast approx. 1.4m~4.5m long, 4-section telescoping 31mm (bottom)~22mm (top) diameter pipe. Handles 8kg. Has 30m rope, etc. Wt. 1.2kg.		  $229

Plenty in stock!
New model!

DAP-600 Antenna mast approx. 1.5m~6m long, 5-section telescoping 42mm (bottom)~26mm (top) diameter pipe. Handles 8kg. Has 30m rope, etc. Wt. 2.3kg.

Price is subject to confirmation!
Deposit is requested only when Diamond confirms availability!		  $299

Please place your order
with deposit
New model!



HRK Adhesive-backed antenna mount is designed to be affixed to a flat surface, preferably glass. Flat base is 100mm w x 40mm d and adjustable angle antenna mount is 35mm h. Antenna must be <1m tall and <200g in weight, e.g. SGM-506R. SGM-507, AZ-510FX, AZ-507R.

   $59

Plenty in stock!

Supplementary shipment here!
K300 Gutter mounting bracket, tilt adjustable, 2-axis, 40mm wide x 76mm high   $79

Plenty in stock!
K301 Gutter mounting bracket, tilt adjustable, 2-axis, 30mm wide x 69mm high

New model in stock thanks to scoop purchase from Strictly Ham!		  $79

Plenty in stock!
K400 Boot/edge mounting bracket, tilt adjustable, 2-axis, 100mm wide x 54mm high.



  $79

Plenty in stock!

Supplementary shipment due November!
K402 3-axis boot/edge mounting bracket, tilt adjustable, 40mm wide x 78mm high.  $79

Plenty in stock!

K405 Boot/edge mounting bracket, tilt adjustable, 2-axis, 70mm wide x 43mm high. Heavy duty type.  $79

In stock!

K412 3-axis adjustable angle boot/edge mount bracket has narrow width base. Size; 40mm wide x 63mm high

 		 $79

Plenty in stock!

K415 3-axis adjustable angle boot/edge mount bracket has wide base. Size; 90mm wide x 64mm high. See photo above...



 $79

Plenty in stock!

K416 3-axis adjustable angle boot/edge mount bracket has medium width base. Size; 56mm wide x 63mm high

 $79
Plenty in stock!

K501 Roof top mounting bracket, tilt adjustable, 2-axis, 34mm wide x 88mm high. Accepts mast dia. 15mm~34mm. Roof top railing height accepted <32mm. Width accepted <50mm. Sq. mast 15mm~26mm.

New model in stock thanks to scoop purchase from Strictly Ham!		 $79
Plenty in stock!

K512 Roof top mounting bracket, tilt adjustable, 3-axis, 43mm wide x 129mm high. Accepts mast dia. 15mm~34mm. Roof top railing height accepted <32mm. Width accept. <50mm. Sq. mast 15mm~26mm OK

New model in stock thanks to scoop purchase from Strictly Ham!		 $79
Plenty in stock!
K515 2-axis Tilt angle adjustable roof-bar mounting bracket. Will clamp around <48mm wide x <50mm high quadrant shaped roof bars

 		 $79
Plenty in stock!
K540 2-axis Tilt angle adjustable roof-rail mounting bracket.
Mast diameter accepted 15mm~25mm

New model in stock thanks to scoop purchase from Strictly Ham!		 $79
Plenty in stock!

K550 2-axis Tilt angle adjustable roof-bar mounting bracket. Size; 40mm wide x 108mm high. Clamps around <50mm diam. roof bars.
Cannot be clamped properly or securely around round roof bar!

New model in stock thanks to scoop purchase from Strictly Ham!



 $69
Plenty in stock
K550L 2-axis Tilt angle adjustable roof-bar mounting bracket. Size; 40mm wide x 108mm high. Clamps around <75mm diam. roof bars.
Cannot be clamped properly or securely around round roof bar!

New model in stock thanks to scoop purchase from Strictly Ham!

 $69
Plenty in stock

K600M Boot/edge moulded bracket is slightly tilt adjustable from 0° to 9°. The K600M is fitted with 5m in total of RG-188 and 5D-FV coaxial cables and a PL259

Price is subject to confirmation!
Deposit is requested only when Diamond confirms availability!

 $149
SOLD OUT!

Please place your order
with deposit
K701M Magnetic suction cup base (160mm diameter). Has SO-239, 1m RG-188A/V and 5DQ-S 3m of coax and a PL-259!

New low price thanks to scoop purchase from Strictly Ham!

Price is subject to confirmation!
Deposit is requested only when Diamond confirms availability!		 Now...$139 (was $159)

Plenty in stock now!

Shipment here!
K702M Magnetic suction cup base (160mm diameter).
Has SO-239 and 4m of RG-58A/U with PL-259 plug fitted!

 		 $129

Plenty in stock!

Shipment here!

K3000 TRIPLE MAGNET, TRIANGULAR plate magnetic base! Triangular plate is 235mm each side, with a hole ready to fit an antenna socket. Yes, SUPER STRONG total magnetism here!


 		 $199

Plenty in stock!

Shipment here!

MCRII Black "Alligator clip" style mounting bracket/BNC socket/coax cable lead assembly. Has BNC socket fitted to mounting bracket, 2.5m
of thin low-loss NL-1.5DQ "super" coax cable with BNC plug fitted!
Accepts handheld radio type antennas up to maximum length of 50cm and maximum weight of 80g. This is the latest MCR Mk.II version.

The MCRII can clip onto an IC-705's optional LC-192 backback! 		$129

Limited stock!


MRK Magnetic mount fitted with 2-axis adjustable antenna base bracket $69

 Plenty in stock!
S510NN N-type base/lead assembly has side-entry N-socket fitted to 2.5m of thin low-loss 1.5DQ "super" coax and a F-socket fitted at the other end...along with 4m of 5DQ-II coax with F-plug fitted at one end and N-type plug fitted at the "radio end". $89

Limited or no stock!
SPM-35 Super magnet type has SO-239 and 4m of 3.5DQEFV with a PL-259 plug fitted.



 $129

Plenty in stock!

Supplementary shipment here!
TE-5M Package comprises a boot/edge mounting bracket, 5m of RG-188 and 5D-FV coaxial cables and PL-259 plug.



Price is subject to confirmation!
Deposit is requested only when Diamond confirms availability!		  $99

Sold out!

Please place your order
with deposit
TRA II Package comprises a KTR2 trunk lid mounting bracket fitted with a SO-239, 4m of RG-58c/u coax and a PL-259 plug!



 $99

Plenty in stock!

Please note;
M socket is the same as a SO-239 socket and a UHF socket.
N socket is a combination of a BNC socket and a SO-239 socket, whereby the outer body is based on a SO-239 (for strength) and the inner portion is based on a BNC socket (to maintain low loss at ultra high frequencies).
N-type connectors were initially designed as a strengthened form of BNC connector for the military, as BNCs often failed in military service.

Most of the above accessories are in stock most of the time!



Wideband receive preamplifier



DMAX50E...A$249
(was A$269)

Plenty in stock!

New low price thanks to scoop purchase from Strictly Ham!
In-line super-wideband high-gain receive preamplifier!!

  New DMAX50E is an outstanding preamplifier & with these features:

  • 500kHz to 1,500MHz frequency range
  • Gain is 20dB maximum; adjustable from -20dB to +20dB!
  • Low NF (noise figure) of only 3.5dB
  • High third order intercept point (IP3) of +15dBm
  • Requires 13.8Vdc (or less) at 80mA max.
  • Has two M-type (SO-239) 50 ohm sockets fitted
  • For receiver use only! Cannot be used with transmitters!!
  • Includes approved 12Vdc @ 500mA AC plug-pack supply!
  • Dimensions; 86mm w x 25mm h x 64mm d. Weight; 220g.

Diamond extension speakers



P810 extension noise-filtering speaker

**********************

P810-A ACTIVE AMPLIFIED 6W output extension
speaker with noise filtering


Type $AUD
P610 Extension speaker



  $39
Sold out!

P710 Extension speaker $39
In stock!

P810 Extension speaker features switchable passive Noise Filtering $69

In stock!

P810-A AMPLIFIED Extension speaker features 6W audio output with noise filtering. Has front panel audio gain control & on/off DC power switch. Requires 13.8Vdc at low current. Speaker is 77m in diameter, 8 ohms impedance. Size; 113w x 93h x 49d mm. Weighs 265g. Includes 3m long audio input cable fitted with 3.5mm mono straight plug, cigarette lighter plug with DC cable and a magnetic mounting bracket. $99

In stock!

Also consider the Avair SP-180A (AV-SP5/MFJ-383) active amplified extension speaker which has a maximum audio output of 6W, too! See our AVAIR page...
We have limited or no stock of some extension speaker models from time-to-time...

Diamond high current AC-to-DC power supply



DIAMOND GZV-4000

Diamond GZV-4000 40A regulated
switch-mode power supply.

Adjustable output voltage range of 5~15Vdc.

$P.O.A.

We will announce here if/when we place our
new GZV-4000 order with Diamond in Japan

Learn More

  • 40A @ 50% duty cycle for up to 8 hours @ 13.8Vdc (i.e. ICAS)
  • 15A @ 100% duty cycle for up to 8 hours @ 13.8Vdc (i.e. CCS)
  • DC 5V to 15V voltage adjustment range
  • Rear panel fitted 40A-rated large red & black screw terminals
  • Voltage adjustment knob has detent at 13.5Vdc
  • Voltage or current metering selector
  • Current foldback limiting operates at about 42A
  • Short circuit protection
  • Line filter in-built for EMI protection
  • Ripple and noise <8mV rms
  • Efficiency is approximately 80%
  • Dimensions; 210w x 110h x 330d mm. Weight; 3.5kg.
  • Selectable analog voltage and current metering feature
  • Cigarette lighter socket is front panel fitted
  • Built-in DC cooling fan with temperature controlled speed
  • Front panel 8 ohm speaker with rear panel 3.5mm mono socket
  • Power "on" and current overload indicators fitted
  • Over-voltage protection is not fitted


Andrews Communications Systems
Site 701, Aerodrome Road, Camden
airport, Cobbitty, N.S.W., 2570.
Phone 02 9636 9060, 02 9688 4301.
