Chameleon antennas Updated 06-06-19. Order required. Prices subject to change due to recent exchange rate variations  CHA MIL whip ...A$199 Can cover 28~54MHz with ext. antenna tuner
|
|
| Type | Price $(AUD) |
| CHA MIL whip is a collapsible 5-section aluminium broadband monopole antenna designed for portable operation. The MIL whip will cover 28~54Mhz with an external antenna tuner. A ground plane is recommended for improved performance. The MIL whip can replace the upper section of the V1L or V2L to improve performance between 1.8~7.5MHz. When combined with the CHA HYBRID the MIL whip will cover 1.8~54MHz (limited performance across 1.8~3.5MHz). MIL has 3/8-24 thread ferrule. Will handle up to 1500W SSB. | $199.00 |

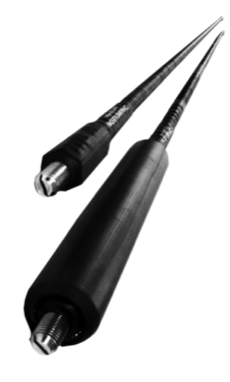

| CHA V1 antenna must be used with either the CHA HYBRID or the CHA CAUM for adequate 3.5~30MHz operation. An external antenna tuner is also required. The V1 is a two-section screw-together 8'4" (2.54m) fibreglass antenna with 3/8-24 thread ferrule. To increase performance across 3.5~7.5MHz when stationary mobile, the optional MIL whip can replace the upper V1 section. The MIL whip will add 10'8" to the V1's lower section. The V1 can cover 6m, 2m & 70cm by itself. 500W SSB. | $249.00 |

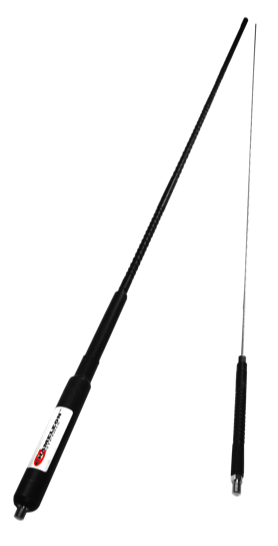

| CHA V1L antenna is a 2-section screw-together 8'10"
(2.7m) rugged HF mobile whip. For 3.5~30MHz operation it must be used with a CHA HYBRID or CHA CAUM and an external antenna tuner. To increase performance across 3.5~7.5MHz when stationary mobile, the optional MIL whip can replace the upper V1L section. The MIL whip will add 10'8" to the V1L's lower section. The V1L can cover 6m, 2m & 70cm. |
$269.00 |

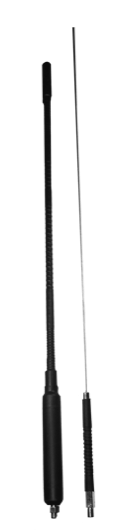

| CHA V2L antenna is a 2-section screw-together 6'8"
(2.03m) rugged HF mobile whip. For 3.5~30MHz operation it must be used with a CHA HYBRID or CHA CAUM and an external antenna tuner. To increase performance across 1.8~7.5MHz when stationary mobile, the optional MIL whip can replace the upper V2L section. The MIL whip will add 10'8" to the V2L's lower section. The V2L can cover 6m, 2m & 70cm. |
$269.00 |

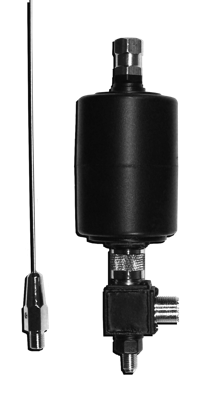

| CHA V4 whip antenna and V4 base package can cover 2m~20m if used with an external optional antenna tuner. Total package length is 1.52m. | $xxx |
| CHA V11 HF vertical dipole base station antenna can
cover 1.8~54MHz when used with an optional external antenna tuner.
The V11 comprises two V1 or V1L antennas with one CADMIT base
bracket assembly. Total package length is 5.08m. V11 must be mounted on a metal pole. |
$569.00 |

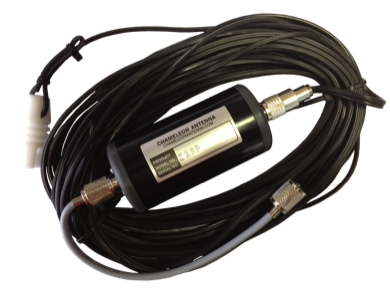

| CHA ZEPP HF base station Zepp antenna is 75' (22.8m) long and covers 3.5~30MHz. Includes waterproof 1:1 UNUN. Requires no ground plane. Rated to handle 500W SSB. Requires antenna tuner for low swr. | $199.00 |

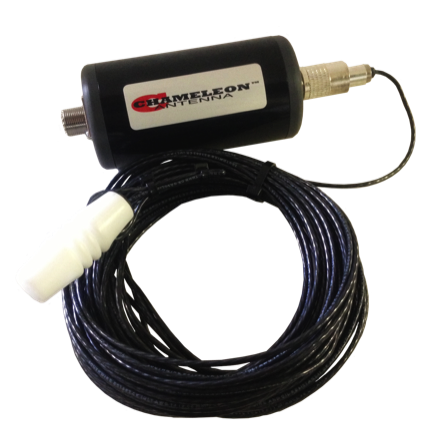

| CHA EMCOMM II HF portable antenna is 60' (18.2m) long. No ground plane required. Can cover 1.8~54MHz with optional ext. antenna tuner. | $219.00 |
Chameleon antenna bases
|
|
| Price $(AUD) | |

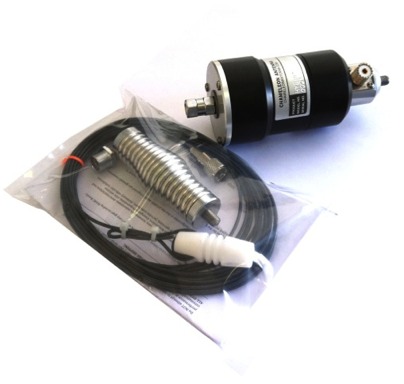

| CHA HYBRID antenna base has an integrated broadband impedance matching network. Covers 1.8~54MHz continuous. Handles 800W SSB, 250W CW. Has 3/8-24 antenna thread and SO-239. A wire antenna or whip antenna and an external antenna tuner are required. | $379.00 |

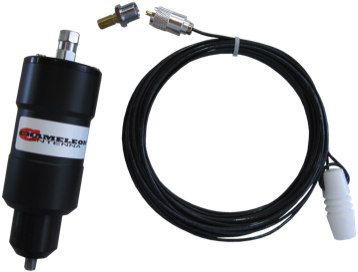

| CHA HYBRID-MINI antenna base is the portable version
of the regular HYBRID. The MINI is smaller and about 50% lighter
than the HYBRID. Covers 1.8~54MHz continuous. Handles 800W SSB, 250W CW. Has 3/8-24 antenna thread and SO-239. A wire antenna or whip antenna and an external antenna tuner are required. |
$339.00 |

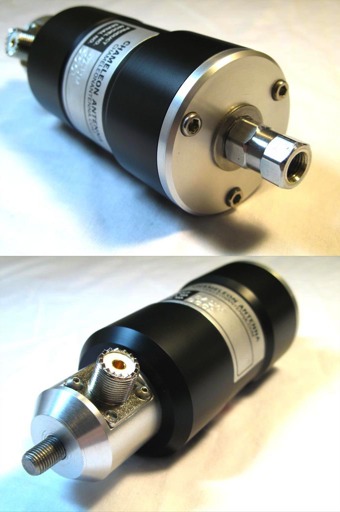

| CHA CAUM antenna base is internally different to the CHA HYBRID. It has an integrated broadband impedance matching network. Covers 3.5~30MHz continuous. Handles 500W SSB. Has 3/8-24 thread ferrule and SO-239. An antenna whip and an external tuner are required. | $219.00 |
| Chameleon accessories - Pricing t.b.a. | |
| Price $(AUD) | |
| JAWMOUNT | |
| HEAVY DUTY SPRING | |
| TRIPOD | |
| HEAVY DUTY CARRY BAG | |
| CADMIT | |
| COUNTERPOISE KIT | |
| EZ FOLD-OVER 180 SWIVEL | |
