Test Equipment

• Measurement range from 100kHz to 2900MHz
• Measures and demodulates W-FM/N-FM/AM/SSB signals
• 2 Span modes to measure frequencies
• Measured level of 160 channels can be displayed simultaneously on the LCD
• PLL tuning system for precise frequency tuning
• Built in frequency and counter and speaker
• LED back light LCD (192x192 pixels)
• USB for PC interface
• RS-232C port for printer
• RS-232 adaptor lead included (DB9 + lead + 8 pin mini DIN)
• Optional DB-9 to USB lead assembly is $39
• Up to 16,000 different channels can be saved, recalled and edited with alphanumeric name
• Built in 4 level attenuator

• Measurement range from 100kHz to 2900MHz
• Measures and demodulates WFM/NFM/AM/SSB signals
• Measurement range; -20dBm to -110dBm
• Average noise level; WFM -100dBm, NFM/AM/SSB -110dBm
• Resolution minimum 5kHz
• Accuracy; TCXO +/-3ppm, display +/- 25ppm
• Amplitude units; dBm, dBmV and dBuV
• Maximum input +10dBm, 5Vrms
• Sweep mode (free run, single run and squelch run)
• PLL tuning system
• 100 "saves" and "loads" for waveforms and settings
• 100 memory storage states
• Enhanced signal level accuracy
• Marker, delta marker, squelch adjustment functions
• Peak search function
• Channel power measurement
• RS-232 interface fitted; 8-pin mini DIN connector, 115.2kbps
• User friendly icon display
• Optional G632 tracking generator...A$799

• Bandwidth: 100MHz
• Real-time sample rate: 1GS/s
• Equivalent time sampling rate: 25GS/s
• Large 7" (177mm) display
• Record length up to FFT
• Multiple language support
• USB host and device connect
• Rise time; 3.5ns (approx.)
• Sweep time; 50s/div~5ns/div
• Size; 313 x 108 x 142mm
• Weighs only 2.08kg.

• Bandwidth: DC to 100MHz
• Sensitivity; 5mV-5V/div.
• Rise time; 3.5nS
• Maximum input voltage; 300V (DC + AC peak)
• Sweep time; 0.05uS-0.2S/div.
• Frequency bandwidth; DC-2MHz
• 2 Channels 4 traces
• X-Y operation
• x10 magnifier

• Bandwidth: DC to 60MHz
• Sensitivity; 5mV-5V/div.
• Rise time; 6.0nS
• Maximum input voltage; 400V (DC + AC peak)
• Sweep time; 0.1uS-0.2S/div.
• Frequency bandwidth; DC-500kHz
• 2 Channels 4 traces
• X-Y operation
• x10 magnifier

• Frequency, period and totalize measurements
• Low pass filter
• 8 digit LED display
• Channel A
  10MHz range; 10Hz - 10MHz
  100MHz range; 10MHz-100MHz
• Channel B
  100MHz - 1GHz
• Resolution; 1Hz to 10MHz, 10Hz to 100MHz, 100Hz to 1GHz
• 2 channel inputs (100MHz, 1GHz)
• 3 step gate time control
• 1/20 input attenuator
• Sensitivity; 50mV or better

• Frequency range; 0.15 - 1050MHz
• Frequency resolution; 100KHz
• Span; 100kHz to 100MHz
• Resolution of frequency display: 100KHz (4.5 Digit LED)
• Span accuracy: +/- 10%
• Sweep time; 28ms
• Video bandwidth (BW); 4kHz
• Resolution BW; 9/120/400kHz
• Measurement range; -100dBm to +13dBm
• Displayed average noise level;
  -100dBm
• Input attenuator range; 40dB in 10dB steps
• Frequency response; +/- 2dB
• Amp. display accuracy; +/-2dB
• N-type input, 50 ohms
• Size; 320 x 140 x 300mm
• Weight; 7kg.

SHIPPING NOTES

Insurance cover for goods in transit is available from us for only $2 per $100 value of goods. Please advise us if you require this option when ordering.

Please consider insurance because we are not responsible for loss of parcels or damage sustained by parcels - the carrier is responsible! We do pack well!

Please do NOT write <fragile> on anything you send to us as doing so greatly increases the risk of damage. Please try to "double-box" all items sent to us.

• Frequency range: 0.15 - 500MHz
• Centre frequency display accuracy: +/- 100KHz
• Marker accuracy: 0.1% Span + 100KHz
• Resolution of frequency display: 100KHz (4.5 Digit LED)
• Frequency scan width accuracy: +/- 10%
• Frequency stability: Better than 150KHz/hour
• IF bandwidth (-3dB): 400KHz and 20KHz
• Video filter (on): 4KHz
• Sweep rate: 43Hz
• Amplitude range: -100dBm to +13dBm
• Screen display range: 80dB (10dB/div)
• Reference level: -27dBm to +13dBm (10dB steps)
• Reference level accuracy:
  +/- 2dB
• Average noise level: -90dBm (20KHz bandwidth)
• Distortion: <-55dBc of 2nd and 3rd harmonic
• 3rd order intermod: -70dBc (two signals >3MHz apart)
• Sensitivity: <5dB above average noise level
• Log scale fidelity: +/-2dB(without attn.) @ 500MHz
• Input attenuator: 0dB to 40dB (in 4 x 10dB steps)
• Input attenuator accuracy:
  +/- 1dB/10dB
• Max input level: +10dBm, +/- 25VDC (@ 0dB attn.) and +20dBm(@ 40dB attn.)
• Frequency scan width: 100KHz/div to 100MHz/division in 0-1-2-5 steps and 0Hz/div (zero scan)
• Dimensions: (w x h x d): 380 x 125 x 285mm
• Weight: Approx 7kg

Specifications same as for SA5005, plus tracking!

Tracking Generator:

• Output frequency: 0.15 - 500MHz
• Output attenuator accuracy: +/- 1dB
• Output attenuator: 0dB - 40dB (4 x 10 dB steps)
• Frequency response: 1.5dB
• Output impedance: 50Ω (BNC)
• Radio frequency interference (RFI): < 20dBc
• Output level range: -50dBm to +1dBm (10dB steps and var.)

************************

SHIPPING NOTES

Insurance cover for goods in transit is available from us for only $2 per $100 value of goods. Please advise us if you require this option when ordering.

Please consider insurance because we are not responsible for loss of parcels or damage sustained by parcels - the carrier is responsible! We do pack well!

Please do NOT write <fragile> on anything you send to us as doing so greatly increases the risk of damage. Please try to "double-box" all items sent to us.

Specifications same as for SA5010, plus tracking!

Tracking Generator:

• Output frequency: 0.15 - 1050MHz
• Output attenuator accuracy: +/-1dB
• Output attenuator: 0dB - 40dB (4 x 10 dB steps)
• Frequency response: 1.5dB
• Output impedance: 50Ω (BNC)
• Radio frequency interference (RFI): < 20dBc
• Output level range: -50dBm to +1dBm (10dB steps and var.)

• Outstanding 10kHz frequency display resolution!
• TCXO DDS (direct digital synthesiser) freq. generator!!
• RBW: 400kHz and 20kHz
• Video filter bandwidth: 4kHz
• Average noise level: -90dBm
• Amplitude range from -100dBm to +13dBm. N-F socket fitted
• Sweep rate: 40Hz
• Input attenuator accuracy:
  +/-2dB/10dB
• Stability: +/-10ppm/year
• Aging: +/-2ppm/year
• Third order IMD: -90dBc (two signals >3MHz apart)
• Scan width: 100kHz/division to 100MHz/div. in 0-1-2-5 steps
• Log scale fidelity: +/-2dB
• Dimensions: 285wx125hx380d
• Weight: 5.6kg

Tracking Generator:

• Output frequency: 0.15 - 1050MHz
• Output attenuator accuracy: +/-2dB
• Output attenuator: 0dB to 40dB (in 4 x 10 dB steps)
• Frequency response: +/- 1.5dB
• Output impedance: 50Ω (BNC)
• Radio frequency interference (RFI): < 20dBc
• Output level range: -50dBm to +1dBm (10dB steps and var.)
• Optional at extra cost;
  SA-RTB-1 reflection bridge

 New model!

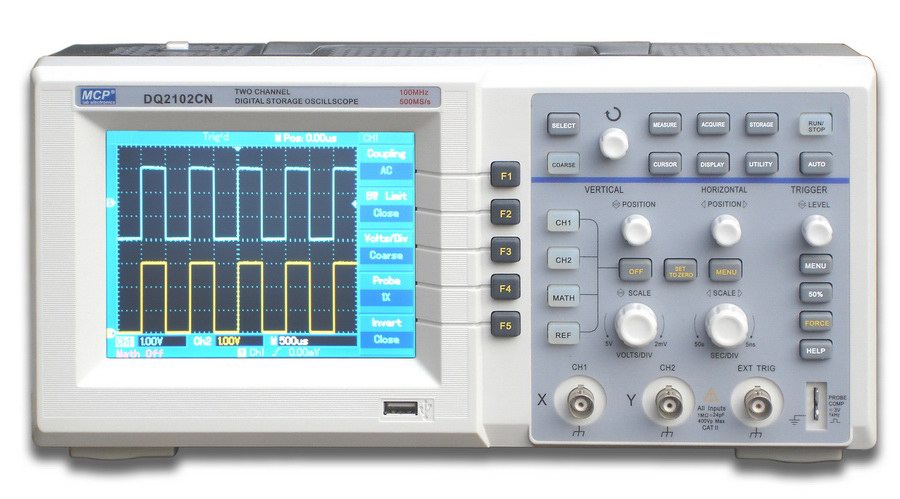

DQ-2102C compact 100MHz colour  display dual-channel DSO
(digital storage oscilloscope)

Super low price!
$699.00 AUD
In stock!

Breakthrough features vs. price:

• Colour LCD, 5.7" (145mm)
• 100MSa/s sampling rate (each channel)
• 25K words per channel recording length
• Cursor readout and 5 auto measurement functions
• FFT function (exc. DQ2025)
• Auto-setting for quick setup and waveform acquisition
• High display accuracy; has 320 hor. x 240 vert. pixels
• Sensitivity and accuracy; 5mV/Div.~5V/Div.
• Vertical resolution; 8 bit
• Bandwidth (-3dB); DC-100MHz
• Rise time <3.5ns
• Sec/Div. range; 5ns-5s/div.
• Sampling rate range; 500S/s to 100MS/s
• Sampling rate and delay time accuracy; +/- 100ppm over any >1ms time interval
• See www.mcpsh.com for more information.

DQ1102C 100MHz...A$1299

DQ1152C 150MHz...A$1699

DQ2202CN 200MHz...A$1299

CQ5660F 60MHz...A$899

CQ640R 7MHz...A$999

CQ640F 50MHz...A$1199

DQ7152CA 150MHz...A$1399

DQ7202CA 200MHz...A$1499

MCP FREQUENCY COUNTER

SWP3100 1024MHz...A$5499

MCP SIGNAL GENERATOR

HG86481 1GHz...A$6449

Please place your order for the
above models.



• Super economical and handheld digital multimeter
• DCV: 200mV-1kV
• ACV: 200V-750V
• DCA: 200uA-10A
• Resistance: 200-2000K ohms
• Transistor hFE test
• Diode test
• Now in stock!

• Excellent digital multimeter for amateur radio and experiments
• DVC: 200mV-1kV +/-(0.5%+1)
• ACV: 2-700V +/-(1.2%+3)
• DCA: 2mA-10A +/-(0.8%+3)
• ACA: 20mA-10A +/-(0.8%+1)
• Resistance: 200-200M ohms +/- (0.8%+1)
• Cap: 2nF-20uF +/-(4%+3)
• Temperature measurement: -20 to 1000C +/-(0.75%+1)
• Transistor hFE test
• Auto power off
• Diode test
• Continuity buzzer
• Now in stock!

Breakthrough price
$10.00 AUD !
In stock!

• ACA: 200A/1000A +/-(2.0%+5)
• ACV: 600V +/-(1.0%+4)
• DCV: 600V +/-(0.5%+1)
• Resistance: 2000 ohms
• Continuity buzzer
• Data hold
• Max display 1999
• Now in stock!

• A practical frequency counter
• Frequency range: 1 MHz - 3 GHz
• Weight: 210g
• Case: 80 mm x 68 mm x 31 mm stamped aluminium with black anodized finish
• Battery: Internal 4 x AA
  600mAH Nicad pack
• 10 digit liquid Crystal Display
• Low power consumption (Average 6 hour battery life)
• Hold switch to lock display
• Digital filter to prevent display of random noise
• Low battery indicator
• Ultra sensitive synchronous detector 16 section bar-graph to show RF signal strength
• High speed 300 MHz direct counter with 0.1 Hz resolution
• 4 selectable gate speeds

• A more professional frequency counter
• Frequency range: 1 Meg ohm and 50 ohm input for full range 10 Hz - 3 GHz
• Weight: 250 g
• Case: 100 mm x 68 mm x 31 mm stamped aluminium with black anodized finish
• Battery: Internal 4 x AA
  600mAH Nicad pack
• 10 digit liquid Crystal Display
• Low power consumption (Average 6 hour battery life)
• Hold switch to lock display
• Digital filter to prevent display of random noise
• Low battery indicator
• Ultra sensitive synchronous detector 16 section bar-graph to show RF signal strength
• High speed 300 MHz direct counter with 0.1 Hz resolution
• 4 selectable gate speeds
• Automatic hold
• Measure frequency and period
• Beeper and LED back light

• The latest advances in frequency counter and RF finder technology
• Frequency range: 1 MHz - 3 GHz
• Weight: 250 g
• Case: 100 mm x 68 mm x 31 mm stamped aluminium with black anodized finish
• Battery: Internal 4 x AA
  600mAH Nicad pack
• 10 digit liquid Crystal Display
• Low power consumption (Average 6 hour battery life)
• Hold switch to lock display
• Digital filter prevents display of random noise
• Low battery indicator
• Ultra sensitive synchronous detector 16 section bar-graph to show RF signal strength
• Automatically tunes most ICOM (CT-17 required) and AOR receivers to detected near-field signals!
• Measure frequency and period
• High speed 300 MHz direct counter with 0.1 Hz resolution
• 4 selectable gate speeds
• Beeper and LED back light

Typical reception distances;

Cordless phones...0.3m
Cellular phones...3-20m
CB 27MHz radios...2-8m
VHF/UHF 2-way radios...3-30m

Input sensitivity (1M ohm);

1M ohm (30pF) 10Hz-50MHz range <10mV @ 10Hz-10MHz
<20mV @ 10MHz-50MHz
Maximum input 100Vrms

Input sensitivity (50 ohms);

50 ohms with VSWR <2:1
1MHz-3GHz range
<0.8mV @ 100MHz
<6mV @ 300MHz
<7mV @ 1GHz
<100mV @ 2.4GHz
Maximum input +15dBm

RF signal strength bar graph

27MHz 7mV = 1st LED, 100mV fsd
150MHz 5mV = 1st LED, 90mV fsd
800Mhz 10mV = 1st LED, 200mV fs

Frequency display resolution

Range - Gate time -LSD- Display
300MHz  0.625s  10Hz 300.00000M
300MHz  0.25s    1Hz 300.000000M
300MHz 1.0s   1Hz 300.000000M
300MHz 4.0s  0.1Hz 300.0000000M

3GHz  0.0625s  1000Hz 3000.000M
3GHz  0.25s  100Hz 3000.0000MHz
3GHz  1.0s    10Hz 3000.00000MHz
3GHz  4.0s    10Hz 3000.00000MHz
