bhi DSP products

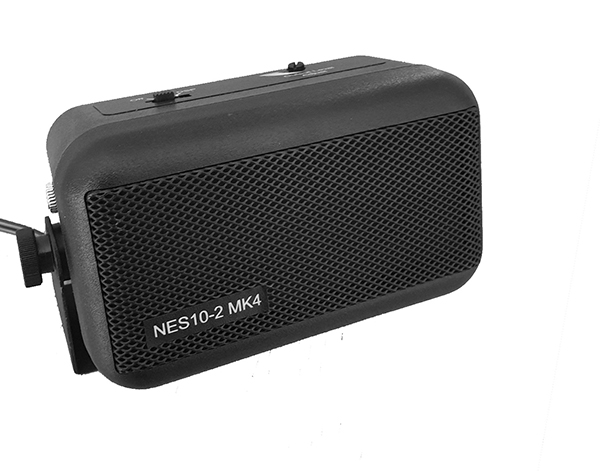

Would you like clear radio communications? The NES10-2 Noise Eliminating Speaker incorporates the latest Digital Signal Processing (DSP) technology to remove unwanted background noise from speech enabling you to concentrate and listen “Stress Free”

• Fully Adaptive noise cancelling
• Noise cancellation typically 20dB
• 8 user selectable noise cancelling levels
• Compact robust speaker unit
• Greatly improved signal to noise ratio
• Headphone socket
• Easy to install with adjustable mounting bracket
• Noise Cancellation on / off switch
• 12-28Vdc operation
• Input sensitivity control
• 2m audio lead

The NEIM1031 Noise Eliminating In-line Module incorporates the latest Digital Signal Processing (DSP) technology.
The NEIM1031 module allows easy DSP level and audio volume adjustment from its front panel.

• Fully Adaptive noise cancelling
• Noise cancellation typically 20dB
• User selectable noise cancelling levels
• Audio input socket
• Line level input and output
• External speaker socket
• Headphone socket
• Greatly improved signal to noise ratio
• Easy to install with adjustable mounting bracket
• Noise Cancellation on / off switch
• 12-28Vdc operation
• Input overload warning LED

Available with a variety of connections, allowing the module to easily be designed into new equipment, or retro-fitted to existing products. The module has an integral microcontroller, connected to a small keyboard assembly. The microcontroller and keyboard provide single button operation of all the module's functions. The button switches the noise cancellation on/off and changes the DSP noise cancellation level. In addition the unit stores the last used DSP level, so when power is re-applied the unit will default to the last used setting.

• Fully adaptive noise cancelling
• Minimum distortion to audio signal
• Noise cancellation 9 - 35dB
• 8 user-selectable noise cancelling levels
• Noise cancellation can be preset on PCB or remotely changed
• Wide audio bandwidth for natural sound
• Input and output level adjust.
• Input overload indication LED
• 5 - 15VDC operation
• Remote noise cancellation on/off
• Available in four configurations for easy system integration
• Ideal for Yaesu FT-817

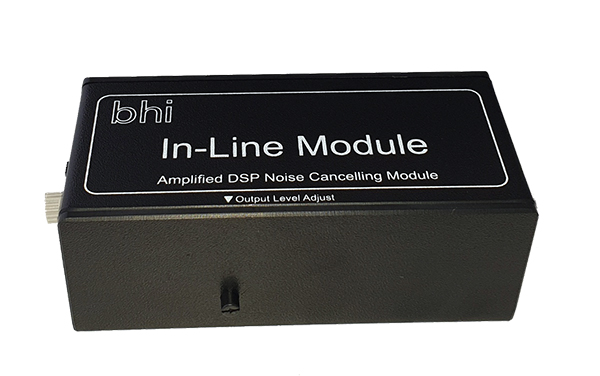

Available with a variety of connections, allowing the module to easily be designed into new equipment, or retro-fitted to existing products. The module has an integral microcontroller, connected to a small keyboard assembly. The microcontroller and keyboard provide single button operation of all the module's functions. The button switches the noise cancellation on/off and changes the DSP noise cancellation level. In addition the unit stores the last used DSP level, so when power is re-applied the unit will default to the last used setting.

• Incorporates an on-board audio power amplifier!
• Fully adaptive noise cancelling
• Minimum distortion to audio signal
• Noise cancellation 9 - 35dB
• 8 user-selectable noise cancelling levels
• Noise cancellation can be preset on PCB or remotely changed
• Wide audio bandwidth for natural sound
• Input and output level adjustment
• Input overload indication LED
• 5 - 15VDC operation
• Remote noise cancellation on/off
• Available in four configurations

The bhi ANEM MKII 'Noise Away' Amplified Noise Elimination Module is a compact, easy to use, stylish in-line solution to noise and interference problems in voice/radio communications. Using unique fully adaptive DSP noise cancellation technology, unwanted noise and interference is removed to leave clear speech with virtually no distortion of the voice signal.

• Compact, Stylish, easy to use in-line module
• Simple microprocessor controlled functions
• Noise reduction 9 - 35dB
• Tone reduction 4 - 65 dB
• Power supply 12 - 18 V DC
• Input signal > 50mV
• Output load 2.5W 8ohms
• Current consumption 300mA
• Audio bandwidth 50 - 4.3KHz
• 4 or 8 filter levels (selectable via push buttons)
• Visual and audio indication of filter level
• Power on/off Audio bypass Switch

Waterproof noise eliminating speaker. Suitable for most marine voice communications. Features 20dB of noise reduction and power/dsp on/off bypass switch.

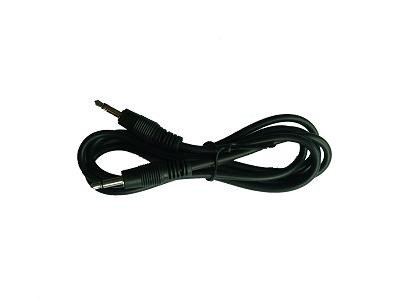

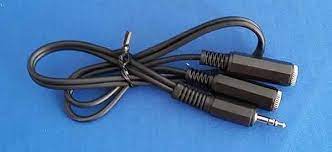

The speaker is supplied with an integral DC power lead, and a 3.5mm audio plug lead with bare ends, 1.2 m long. Optional audio leads and adapters are available to suit most radios.
