Avair accessories

Avair authorised factory-direct Australian importer-distributor
We airmail/aircourier to New Zealand, NOT air/seafreight!
One year Avair factory-backed genuine Australian warranty!

AVAIR SWR/RF WATTMETERS

Please order by phone; 02 9688 4301/9636 9060/9896 8972,
by email; radioandrews@hotmail.com or by mail;
P.O. Box 240, Pendle Hill, NSW, 2145.

We despatch Avair orders daily from our stock!
Plenty of most Avair products are in stock!

Updated 02-04-24


Avair SWR/RF wattmeters

Excellent quality and outstanding value!

AVAIR SWR/RF WATTMETERS




AV-CN200

Cross-needle HF/VHF
RF power and SWR meter

NOW $249 AUD
SOLD OUT!

 See our Diamond meters!

Frequency coverage; 1.8~200MHz
Power ranges; 30W/300W/3kW
(CW and SSB p.e.p).
Has 2 x SO-239 sockets.

Indicates peak or average RF power


AV-CN400

Cross-needle VHF/UHF
RF power and SWR meter

NOW $269 AUD
In stock!

See our Diamond meters, too!

Frequency coverage; 140~525MHz
Power ranges; 30W/300W/600W
(CW and SSB p.e.p).
Has 2 x SO-239 sockets.

Indicates peak or average RF power




AV-CN600

Cross-needle HF/VHF/UHF (1.8~525MHz)
RF power and SWR meter

NOW $349 AUD
SOLD OUT!

 See our Diamond meters!

Range 1 covers; 1.8~200MHz.
Power ranges; 30W/300W/3kW
(CW and SSB p.e.p).
Has 2 x SO-239 sockets.

Range 2 covers; 140~525MHz.
Power ranges; 30W/300W/600W
(CW and SSB p.e.p).
Has 2 x SO-239 sockets.

Indicates peak or average RF power





AV-201

HF/VHF RF power and
SWR meter

NOW $199 AUD
 SOLD OUT!

 See our Diamond meters!

Covers 1.8-160MHz and accepts up to 1,000W SSB p.e.p. of RF power.
Has 2 x SO-239 sockets.

Power ranges; 5W/20W/200W (CW)
 Features 1kW p.e.p. SSB rear panel expansion switch on 200W range.

 Indicates peak or average RF power


AV-400

VHF/UHF RF power and
SWR meter

 NOW $229 AUD
 Plenty in stock!

See our Diamond meters, too!

Covers 140-525MHz and accepts up to 400W SSB p.e.p. of RF power.
Has 2 x SO-239 sockets.

Power ranges; 5W/20W/200W (CW)
Has 400W p.e.p. SSB rear panel expansion switch on 200W range.

Indicates peak or average RF power



AV-601

HF/VHF/UHF (1.8~525MHz)
RF power and SWR meter

 NOW $299 AUD
 SOLD OUT!

 See our Diamond meters!

Range 1 covers; 1.8~160MHz, CW 5W/20W/200W (1kW p.e.p. SSB expansion switch on 200W range).
Range 1 has 2 x SO-239 sockets.

Range 2 covers; 140~525MHz 5W/20W/200W (400W p.e.p. SSB expansion switch on 200W range).
Range 2 has 2 x SO-239 sockets.


Indicates peak or average RF power

AV-1000

HF/VHF/UHF + 23cm band
RF power and SWR meter

NOW $349 AUD
In stock!

See our Diamond meters, too!

Covers 1.8-160MHz, 430-450MHz (amateur), 800-930MHz and 1240-1300MHz (23cm amateur) bands.

Has 2 x SO-239 sockets for the 1.8~160MHz HF/VHF range (rear panel switch position B1).

Has 2 x N-sockets only for all three UHF bands, i.e. 430-450MHz (rear switch position B2), 800-930MHz (rear switch position B3) and 1240-1300MHz (rear switch position B4).

Please note that although the
AV-1000 broadly covers from 430 to 1300Mhz, it has reduced RF power measurement accuracy outside the 430MHz (70cm) and 1240MHz (23cm) amateur radio bands. SWR indications on 23cm are inaccurate!

Rated to 200W CW/400W p.e.p. SSB. Has 3 x RF CW power ranges; 5W/20W/200W (400W p.e.p. SSB expansion switch on 200W range).

Indicates peak or average RF power


Please note that amateur radio type RF wattmeters do not necessarily display p.e.p. (peak envelope power) to very high levels of accuracy.
Please consider purchasing a commercial radio RF wattmeter which has a specially designed and calibrated internal amplifier that displays p.e.p. to a very high level of accuracy. These wattmeters are known as true-peak reading commercial radio RF wattmeters. Some brands of such wattmeters are; Coaxial Dynamics, Bird, Telewave, etc.
Yes, we do sell commercial radio grade RF wattmeters!

Please note;
M socket is the same as a SO-239 socket and a UHF socket.
N socket is a combination of a BNC socket and a SO-239 socket, whereby the outer body is based on a SO-239 (for strength) and the inner portion is based on a BNC socket (to maintain low loss at UHF & higher frequencies).



AV-20

Cross-needle
RF power and SWR meter

NOW $179 AUD
IN STOCK!

Covers 1.8-160MHz; rated to 300W
Has two power ranges; 30W/300W.



AV-40
Cross-needle
RF power and SWR meter

NOW $199 AUD
Limited stock!

Covers 140-525MHz; rated to 150W
Has two power ranges; 15W/150W.


Avair audio compression desk microphones



AV-508

$249 AUD
 Limited stock!

Power desk microphone

Compression desk mic has selectable audio shaping for either SSB or FM modes. Delivers crisp, clear and strong transmit audio. Has adjustable output level via a preset potentiometer underneath the base.

Has UP/DN (up/down scanning), PTT and PTT lock buttons.

Plugs directly into Icom or Kenwood 8-pin modular/rectangular mic socket equipped transceivers.

Includes straight mic lead fitted with two modular/rectangular 8-pin mic plugs. This mic lead can plug into Icom IC-400PRO, IC-208H, IC-706, IC-7000, etc., transceivers.

Microphone adaptor lead in stock to suit Vertex VX-2500U radio...A$49.


AV-908

$299 AUD
Plenty in stock!
Deluxe power desk microphone has built-in graphic equaliser!

Deluxe compression desk mic boasts 3 selectable compression levels.

Features a 4-band graphic equalizer which enables individual voice characteristic tailoring. No echo.

Includes VU output meter with output level adjustment.

Delivers crisp, clear and strong transmit audio. Has UP/DN (up/down scanning), PTT and PTT lock buttons.

Plugs directly into Icom, Yaesu or Kenwood 8-pin modular/rectangular mic socket equipped transceivers.

Includes straight mic lead fitted with two modular/rectangular 8-pin mic plugs. This mic lead can plug into Icom IC-400PRO, IC-208H, IC-706, IC-7000, etc., transceivers.

Microphone adaptor lead in stock to suit Vertex VX-2500U radio...A$49.



Avair super-high specification antenna switches!

Compare to all similar antenna switches...




SW2M

 2-position antenna switch has three SO-239s (UHF-Female)
(Similar to CX-210A)

$89 AUD
 SOLD OUT!

Consider similar Diamond and
Andrews 2-position switches...

Currently, we're out of stock of Andrews/ACS 2-position M-type
SO-239 antenna switches! We
expect ACS 2-position switches
to arrive in the 1st half of 2023.

  • DC-500MHz only 0.05dB loss,    -70dB port to port isolation
  • 500MHz to 1GHz; 0.1dB loss,
    -60dB port to port isolation
  • Maximum RF power ratings;
    DC-30MHz 2kW,
    30MHz-200MHz 1kW,
    200MHz-500MHz 500W,
    500MHz-1GHz 250W



SW2N

 2-position antenna switch has three N-Female sockets
(Similar to CX-210N)

$99 AUD
SOLD OUT!

Consider similar Diamond and
Andrews 2-position switches...

  • DC-500MHz only 0.05dB loss,
    -70dB port to port isolation
    and vswr of 1.05:1
  • 500MHz to 1GHz; 0.1dB loss,
    -60dB port to port isolation
    and vswr of 1.1:1
  • 1GHz to 2GHz; 0.15dB loss,
    -55dB port to port isolation
    and vswr of 1.15:1
  • 2GHz to 3GHz; 0.2dB loss,
    -50dB port to port isolation
    and vswr of 1.2:1
  • Maximum RF power ratings;
    DC-30MHz 2kW,
    30MHz-200MHz 1kW,
    200MHz-500MHz 500W,
    500MHz-1GHz 250W,
    1GHz-3GHz 150W




SW3M

 3-position antenna switch has four SO-239s (UHF-Female)
(Similar to CX-310A)

$149 AUD
SOLD OUT!

Consider similar Diamond and
Andrews 3-position switches.

Currently, we're out of stock of Andrews/ACS 3-position M-type
SO-239 antenna switches! We
expect ACS 3-position switches
to arrive in the 1st half of 2023.

  • DC-500MHz only 0.05dB loss,    -70dB port to port isolation
    and vswr of 1.15:1
  • 500MHz to 1GHz; 0.1dB loss,
    -60dB port to port isolation
    and vswr of 1.25:1
  • Maximum RF power ratings;
    DC-30MHz 1.5kW,
    30MHz-200MHz 1kW,
    200MHz-500MHz 500W,
    500MHz-1GHz 250W

SW3N

 3-position antenna switch has four N-Female sockets
(Similar to CX-310N)

Now $129 AUD
 Plenty in stock!
(was A$149)

  • DC-500MHz only 0.05dB loss,    -70dB port to port isolation
    and vswr of 1.1:1
  • 500MHz to 1GHz; 0.1dB loss,
    -60dB port to port isolation
    and vswr of 1.15:1
  • 1GHz to 2GHz; 0.15dB loss,
    -55dB port to port isolation
    and vswr of 1.2:1
  • 2GHz to 3GHz; 0.2dB loss,
    -50dB port to port isolation
    and vswr of 1.25:1
  • Maximum RF power ratings;
    DC-30MHz 1.5kW,
    30MHz-200MHz 1kW,
    200MHz-500MHz 500W, 500MHz-1GHz 250W,
    1GHz-3GHz 150W




SW-2M2N-1N

 4-position antenna switch has two SO-239s (UHF-F) and three N-F sockets (1 x N-F as common)

$179 AUD
Limited stock!

  • DC-500MHz only 0.1dB loss,
    -60dB port to port isolation
    and vswr of 1.15:1
  • 500MHz to 900MHz; 0.2dB loss,
    -55dB port to port isolation
    and vswr of 1.2:1
  • 900MHz to 1.5GHZ; 0.3dB loss,
    -50dB port to port isolation
    and vswr of 1.25:1
  • Maximum RF power ratings;
    DC-30MHz 1.5kW,
    30MHz-200MHz 1kW,
    200MHz-500MHz 500W, 500MHz-900MHz 250W,
    900MHz-1.5GHz 150W

SW-4N1N

4-position antenna switch has five N-F sockets (1 x N-F as common)

$179 AUD
Plenty in stock!

  • DC-500MHz only 0.1dB loss,
    -60dB port to port isolation
    and vswr of 1.15:1
  • 500MHz to 900MHz; 0.2dB loss,
    -55dB port to port isolation
    and vswr of 1.2:1
  • 900MHz to 1.5GHz; 0.3dB loss,
    -50dB port to port isolation
    and vswr of 1.25:1
  • Maximum RF power ratings;
    DC-30MHz 1.5kW,
    30MHz-200MHz 1kW,
    200MHz-500MHz 500W, 500MHz-900MHz 250W,
    900MHz-1.5GHz 150W



SHIPPING NOTES

Insurance cover for goods in transit is available from us for only $2 per $100 value of goods. Please advise us if you require this option when ordering.

Please consider insurance because we are not responsible for loss of parcels or damage sustained by parcels - the carrier is responsible! We do pack well!

Please do NOT write <fragile> on anything you send to us as doing so greatly increases the risk of damage. Please try to "double-box" all
products sent to us.



 SW-4M1M

 4-position antenna switch has
5 x SO-239 sockets
(1 x SO-239 as common)

$169 AUD
Plenty in stock!

  • DC-500MHz only 0.1dB loss,
    -60dB port to port isolation
    and vswr of 1.1:1
  • 500MHz to 900MHz; 0.2dB loss,
    -55dB port to port isolation
    and vswr of 1.25:1
  • Maximum RF power ratings;
    DC-30MHz 1.5kW,
    30MHz-200MHz 1kW,
    200MHz-500MHz 500W, 500MHz-900MHz 150W



Avair diplexers

All models have >60dB port-to-port isolation and <0.2dB loss.

Limited stock


AV-32C-NMN

Has 2 coax cables with plugs fitted

$99 AUD
In stock!

  • 1.6 ~ 30MHz M-P (PL259).  Max. power 600W SSB.
  • 49~470MHz, N-plug.          Max. power 400W SSB.
  • Has switchable coax leads with one N-M plug and one PL-259 plug fitted
  • Common socket is N-Female.
  • Part no. 35C-NMN





AV-35D-NMN

$99 AUD

SOLD OUT!

  • 1.6 ~ 30Mhz M-P (PL259).  Max. power 600W SSB.
  • 49~470MHz, N-Plug.
    Max. power 400W SSB.
  • Has one N-F and one
    SO-239     switchable
    chassis mounted sockets
  • Common socket; N-Female.
  • "D" = chassis mounted sockets
  • Part no. AV-35D-NMN
  • Similar appearance to Avair triplexer shown below, but has only two switchable chassis mounted sockets, not three...



Avair triplexers

All models have >50dB port-to-port isolation and <0.4dB loss!




AV-38DN-MNNF

 Has 4 chassis mounted sockets

$119 AUD

SOLD OUT!

  • 1.6 ~ 160Mhz M-F (SO239).  Max. 800W SSB. Loss <0.2dB.
  • 350~550MHz, M-F (SO239).  Max. 500W SSB. Loss <0.3dB
  • 850~1300MHz, N-P (N-socket). Max. 200W SSB. Loss <0.4dB.
  • Has TWO N-F sockets and ONE SO-239 switchable sockets! (not as in photo)
  • Common socket is N-Female
  • "D" = chassis mounted sockets
  • Part no. 38DN-MNNF



Avair 20A DC leads and edge-mount bracket


AV-IW2000

$39 AUD
Sold out!

Yaesu E-DC-20 is in stock!
Please see our Yaesu page for equivalent E-DC-20 DC lead.
Traditional 6-pin rectangular 20A DC rated plug, lead and inline fuse assembly. Suits many 100W output SSB amateur radio transceivers.

AV-IW7000 (3m long)

$49 AUD
Plenty in stock!

New-style 4-pin square 20A DC rated plug, lead and in-line fuse assembly. Suits many late model 100W SSB amateur transceivers.


MB-400S

$29 AUD
Plenty in stock!
 High quality black boot/edge mount which can be adjusted in 2 axes!
Will slide onto a flat metal surface
of up to 3mm in thickness.
MB-400S base plate is 60mm wide.

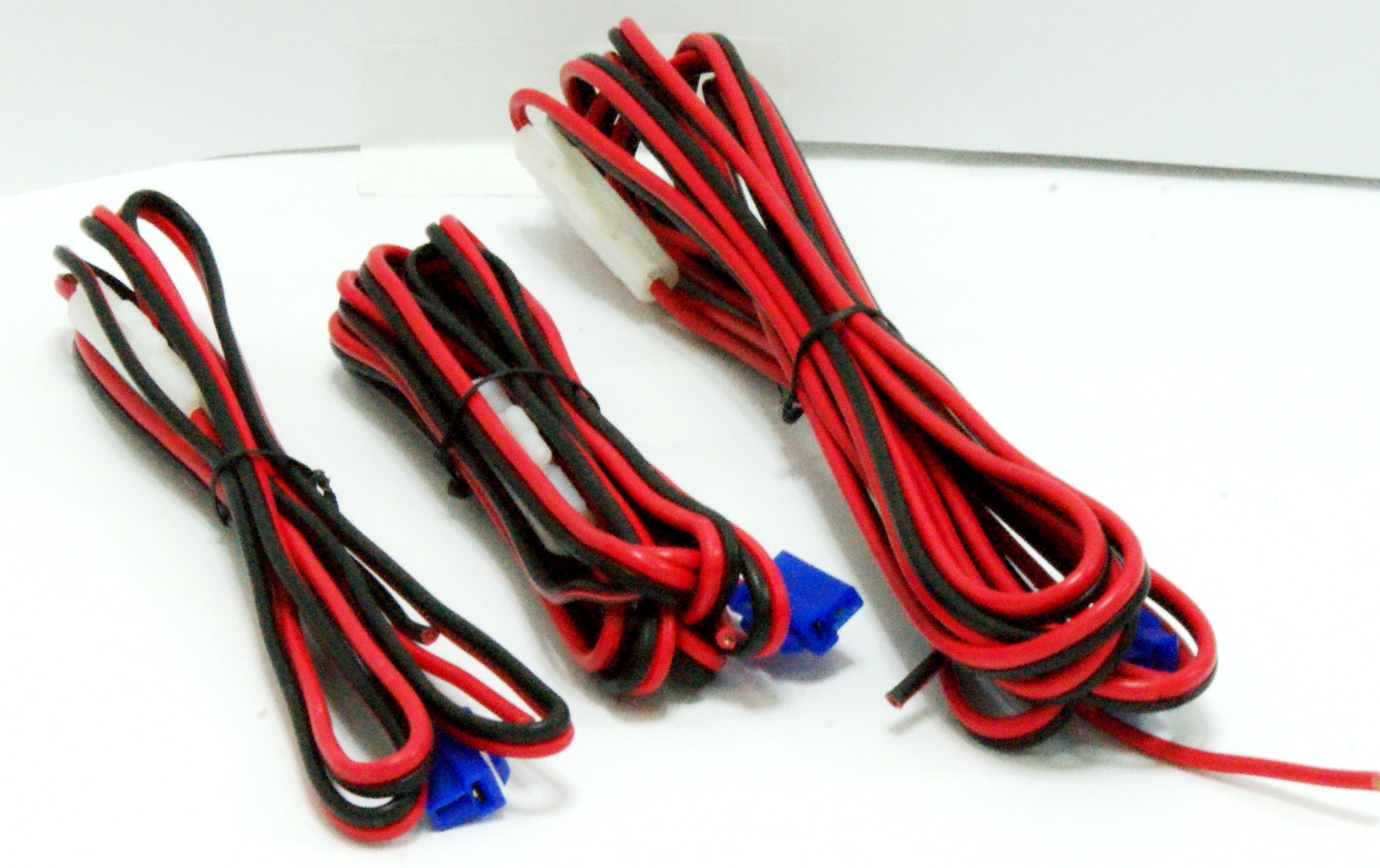

Three examples of AV-KW series cable assemblies with "T" type
DC plug and in-line fuse
(15A) fitted, in various cable lengths.

We keep only the AV-KW 4m
long version in stock...A$19.
(i.e. model AV-KW4M)

Avair high-quality, high power rated dummy loads!

Plenty of all four dummy load models in stock!



DL-150M, 150W peak power dummy load.
PL-259 plug fitted. Good to 1GHz!

DL-150M...$109 AUD

*********************

DL-200M, 200W peak power dummy load.
PL-259 plug fitted. Good to 1GHz!

DL-200M...$129 AUD

Type Price $(AUD)
DL-150M 150W (pk.) dummy load, PL-259 (UHF-M) plug; good to 1GHz A$109
DL-150N 150W (pk.) dummy load has N plug; good to 3GHz A$109
DL-200M 200W (pk.) dummy load, PL-259 (UHF-M) plug; good to 1GHz A$129
DL-200N 200W (pk.) dummy load has N plug; good to 3GHz A$129
Please note;
M socket is the same as a SO-239 socket and a UHF socket.
N socket is a combination of a BNC socket and a SO-239 socket, whereby the outer body is based on a SO-239 (for strength) and the inner portion is based on a BNC socket (to maintain low loss at UHF & higher frequencies).

Avair SO-239 low profile MAGNETIC antenna base assy.


AV-705...$69 AUD

Sold out!

Type Price $(AUD)
NEW! AV-705 Magnetically super strong (e.g. stronger than AV-701M and AV-707), 120mm diameter, low profile black magnetic base fitted with SO-239 socket, 5m of RG-58a/u coax and PL-259.
We also stock other magnetic base n'lead assemblies...just ask us!		 $69.00


SOLD OUT!

More Avair accessories...and almost all are in stock!

Super low CH-510 price...A$49!


CH-510 10A DC-DC converter
CH-510...$49 AUD
Plenty in stock!
(Was A$69)

 *****************************

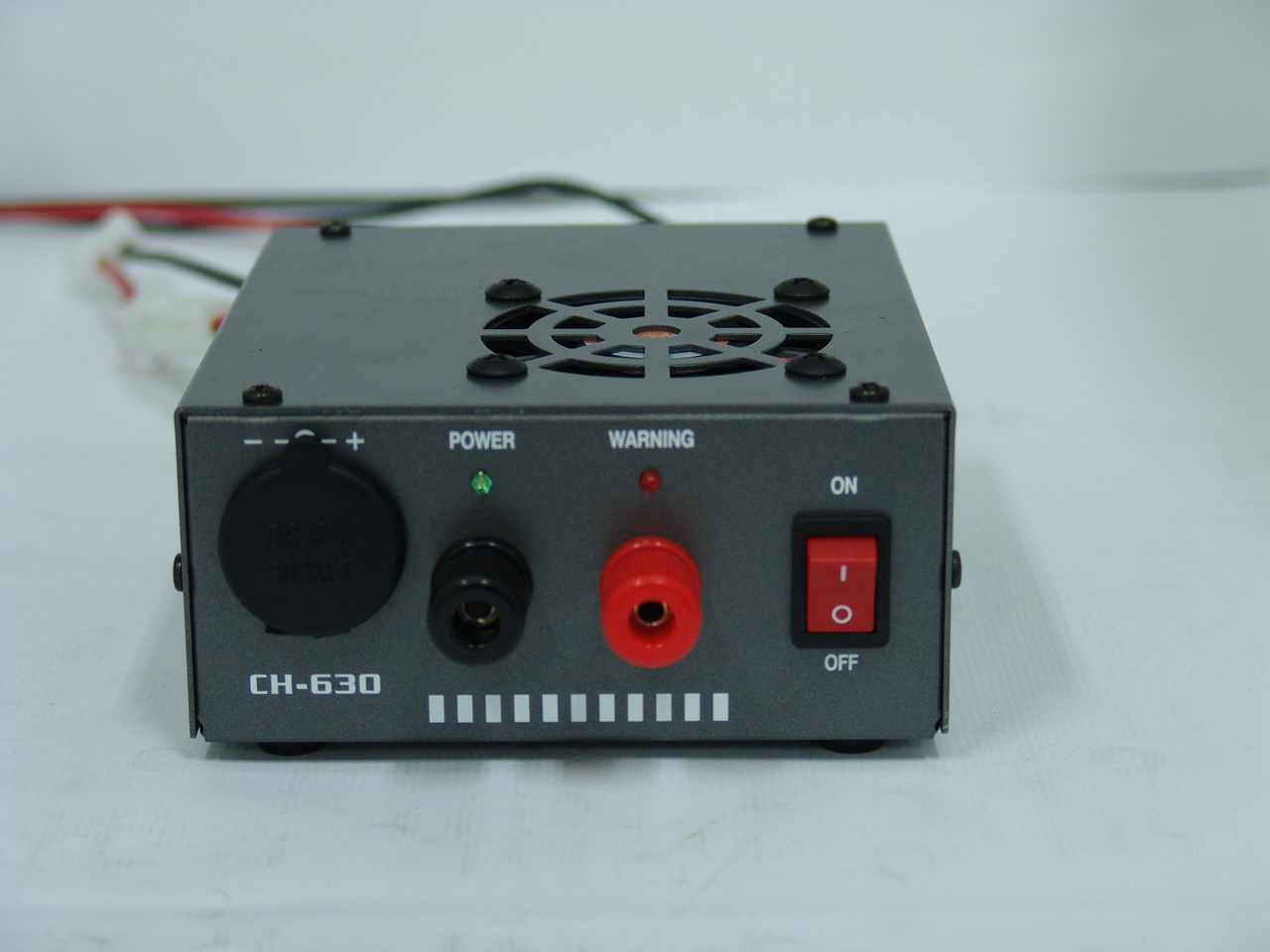

CH-630 30A DC-DC converter...$99 AUD
Limited stock!

 *****************************

AV-SP(A) now...$15 AUD
(was A$20)
Plenty in stock!
NEW! AV-SP(A) slimline extension speaker (was A$20)
Has switchable noise filter, volume control, mounting
bracket, speaker lead and 3.5mm phono plug fitted!

*****************************

ES-08...$29 AUD
Plenty in stock!
ES-08 extension speaker with switchable noise filter...A$29
Has switchable noise filter, volume control, mounting
bracket, 1.8m speaker lead & 3.5mm phono plug fitted!

*****************************

SP-180A...$99 AUD
Plenty in stock!
SP-180A ACTIVE 6W output amplified speaker...A$99
This active/amplified extension speaker is ideal for use with
handheld and mobile scanning receivers and also for use
in locations which have high levels of ambient noise.
Requires 2A max. @ 13.8Vdc. Plenty in stock!
More SP-180A tech. info in list below...

*****************************

See our AXIS PS18-FME w/FME-to-PL259 adaptor assembly...at A$29!
This is similar to the AV-KE and photo is on our CB/Accessories page.
The benefit of using an FME connector (rather than a PL259) is that an
FME connector requires a much smaller hole diameter to pass through.

Type Price $(AUD)
AV-KE SO-239 base with 4m of RG-58 coax and PL-259 fitted.
Sold out! 		Now $20.00
AV-KW(4m) Standard "T" plug DC lead assembly, has two 10A in-line fuse holders with fuses. Suits most modern V/U mobile transceivers. $19.00
New model!
ES-08 Extension speaker with switchable noise filter! Speaker is 3"/75mm dia., 8 ohms, 3W rated. Case size; 112w x 92h x 43d mm.
Has mounting bracket, 1.8m long speaker lead and 3.5mm mono plug		 New! $29.00
AV-SP (A) New slimline extension speaker with noise filter switch and volume control! Includes metal mounting bracket and
2.8m of speaker cable with a 3.5mm mono plug fitted.
Dimensions; 100w x 70h x 30d mm (not including projections)		  Now $15.00
(Was A$20)
Plenty in stock!
CH-510 DC-DC Voltage converter; 10A continuous current rated, 24Vdc to 12Vdc. Super-low price!
Plenty in stock!		  Now $49.00
(Was A$69)
Plenty in stock!
CH-620 DC-DC Voltage converter; 20A Compact 24V to 12V converter. $79.00
Limited stock!
CH-630 DC-DC Voltage converter; 30A High current 24V to 12V converter.     $99.00
Limited stock!
IW-2000 6-pin rectangular 20A DC plug and lead assembly with in-line fuses, for Icom IC-7000, Kenwood TS-480, TS-590S radios, etc.
See our Yaesu page for E-DC-20, which is equivalent lead assembly!  		Only $39.00
Sold out!
IW-7000 4-pin square 20A DC plug and lead assembly with in-line fuses. Suits most late model 100W o/p SSB amateur transceivers. Only $49.00
MB-400S High quality black boot/edge mount bracket is 60mm wide and is adjustable in two axes! Plenty in stock! See photo above... $29.00
Plenty in stock!
Mirror/roof bar bracket - extra strong! $12.00
"VC" Speaker-mic type plug and coiled lead assembly has standard 2.5mm and 3.5mm plug moulding (spaced 10mm apart), open wire end $9.00
SP-3 Black 16cm sq. ext. speaker, includes mounting bracket/lead/plug $19.00
SP-180A (AV-SP5/MFJ-383). Active amplified extension speaker. Maximum audio output of 6W.
Maximum audio input limit is 1W. Requires 2A maximum @ 13.8Vdc.
Only 100mW of audio input may deliver up to 6W of peak audio output.
Has volume control, on/off switch, mounting bracket and cigarette lighter plug/lead. Ideal for handheld scanners, etc. Requires 2A @  13.8Vdc. Fitted with a long hard-wired audio input lead and 3.5mm mono plug. Size; 110w x 90h x 40d mm (not including projections)		  $99.00



A sales receipt copy must accompany each warranty claim
Include your name, address, email and phone number
Andrews Communications Systems
Shop 8, 41-51 Bathurst St, Greystanes, NSW 2145
Telephone: (02) 9636 9060, (02) 9688 4301, (02) 9896 8972
