LDG & more antenna tuners


LDG authorised factory-direct importer!

Genuine 2-year factory-backed Australian warranty

(See our MFJ page for MFJ automatic and manual tuners, too!)

LDG Electronics Autotuner Selection Charts links...

www.ldgelectronics.com/assets/documents/LDGComparison.pdf

www.ldgelectronics.com/assets/documents/TunerSelectionFlowChart.jpg

AT-897Plus automatic tuner only.
Radio not included, of course!

Now $299 AUD
Plenty of AT-897Plus ATUs in stock!
(Were A$399 ea.)

NEW YT-1200 suits FT-991, FT-450/D, FT-950,
FTDX-1200 and FTDX-3000D transceivers!

DUE TO WORLDWIDE LDG DISTRIBUTION CHANGES, PRICES HAVE INCREASED ON SOME NEW LDG
PRODUCT ARRIVALS BY ABOUT 15%..

LDG automatic antenna tuners have wider impedance tuning ranges than automatic tuners made by most amateur SSB transceiver manufacturers.

Prices subject to change without notice due to exchange rate variations.
Prices are confirmed for all LDG and PalStar products in our stock!

Please order by phone; 02 9688 4301/9636 9060/9896 8972,
by fax; 02 96881995, by email; radioandrews@hotmail.com
or by mail; P.O. Box 240, Pendle Hill, NSW, 2145.

Updated 13-08-18

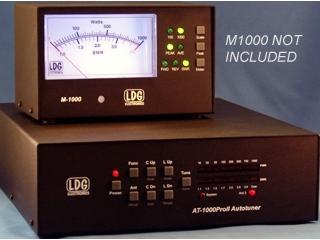

AT-1000PROII

$999 AUD

In stock!

One kilowatt auto antenna tuner

M1000 analogue meter NOT included

Learn More

LDG has refined its flagship 1kW SSB rated automatic antenna tuner!
The new AT-1000ProII retains many of the features of the previous model but with simplified operation.
Easy installation and now even easier operation makes this tuner the choice for any amateur radio operator with a high power amplifier.

  • Continuous 1.8-54 MHz range
  • New large bar-graph has two selectable power scale ranges (100W/1000W) and SWR meter
  • 2-position antenna switch!
  • 2,000 memories store tuning parameters for near-instant recall whenever you transmit on or near a stored frequency
  • The AT-1000ProII will interface with many transceivers, allowing their TUNE button to operate the AT-1000ProII
  • Switched L tuning network
  • Peak RF power across HF 1.8MHz to 30 MHz;
    * 1000 Watts on SSB
    * 750 Watts on CW
    * 400 Watts on RTTY/digital
  • Peak RF power rating, 50-54MHz; 250W with antenna impedance tuning range of 16~150 ohms
  • Impedance tuning range across 1.8~30MHz; 6 to 1000 ohms
  • Tuning power; 5 to 125 watts (maximum) of constant carrier
  • Adjustable threshold when in automatic tuning mode
  • Tuning buttons for fine tuning of capacitance & inductance
  • Tuning time; 0.2 sec. in recall mode, 10 sec. av, 30 sec. max.
  • High pwr. protection software
  • LEDs indicate ant/bypass mode
  • Long wire antennas and ladder line-fed antennas require an external balun; usually 4:1
  • M1000 large analogue meter shown is optional at extra cost
  • Requires 11~15Vdc at 1A and a coaxial cable patch lead
  • This is the Mk.II version!
  • DC power lead only is included



AT-600PRO II

$699 AUD
Plenty in stock!

Automatic 600W antenna tuner

Learn More

The new AT-600PRO II will handle up to 600W SSB/CW or 300W RTTY on HF. Rated up to 250W on 50-54MHz!

  • Continuous 1.8-54MHz range
  • HF peak power; 600W SSB/CW, 250W PSK/digital modes
  • 6m power rating: 250W peak
  • LED bar graph displays for RF power, SWR and tune status
  • LED indicator for bypass mode
  • 4,000 memories for instantaneous band changing
  • 2-position antenna switch with memories for each switch position
  • Tuning time: 0.5-6 seconds for full tune, 0.1 sec. mem. tune
  • Built-in frequency counter facilitates memory operation, allowing fast tuning by memory
  • Frequency range: 1.8-54MHz
  • Tunes 6-800 ohms on HF (16-150 ohms on 6m)
  • This is the Mk.II version!
  • Needs coaxial cable patch lead
  • DC power lead only is included
  • Above photo shows front and back of a AT-600PROII tuner

**********************

***NEW***


RC-600 Controller

RT/RC-600 600W remote mount Antenna Tuner and Control Unit!

RT-600/RC-600...A$799

Sold out!
Shipment due early September!


RT-600 Auto Tuner



***NEW***

M1000 meter...A$269

Sold out!
Place your order!

Designed for use with AT-1000PROII


***NEW***

M600 meter...A$269

Sold out!
Place your order!

Designed for use with AT-600PROII



***NEW***

USB-100 USB control cable suits AT-1000PROII and AT-600PROII.

Allows AT-1000PROII & AT-600PROII to be controlled via PC USB port.
Beta software will be available soon (no computer support from LDG)


USB-100...A$99
In stock!


AT-200PRO II

$499 AUD
In stock!

5W-200W ATU with memory

Learn More

  • Continuous 1.8-54MHz range
  • HF peak power ratings;
    5-250W on SSB/CW, maximum of 75W on PSK/digital modes
  • 6m power rating: 100W peak
  • LED bar graph displays for RF power, SWR and tune status
  • The AT-200ProII has 16,000 "3D" memories which store up to 8 antenna settings on each frequency
  • Whenever you operate on or near a frequency previously used the AT-200PRO II will
    retune almost instantly
  • Two position antenna switch with memories for 4 antennas in each switch position
  • Tuning time: 0.5-6 seconds for full tune, 0.1 sec. mem. tune
  • Built-in frequency counter facilitates memory operation, allowing fast tuning by memory
  • Frequency range: 1.8-54MHz
  • Tunes 6-800 ohms on HF (16-150 ohms on 6m)
  • This is the Mk.II version!
  • Needs coaxial cable patch lead
  • DC power lead only is included


AT-100PRO II

$399 AUD
In stock!

1W-125W ATU with memory

Learn More

  • Continuous 1.8-54MHz range
  • HF power rating: 0.1-125W, 30W PSK/digital modes
  • 6m power rating: 100W peak
  • New LED indicators for antenna selection and antenna bypass
  • LED bar graph displays for power, SWR and tune status
  • The AT-100PRO II has 2,000 memories for each antenna position
  • Automatically stores tuning configurations for each band and frequency as you operate
  • Whenever you operate on or near a frequency previously used the AT-100PRO II will
    retune almost instantly
  • Two position antenna switch with separate memories for each switch position
  • Tuning time; 0.5-6 seconds for full tune, 0.2 sec. memory tune
  • Selectable user parameters
  • Tunes 6-1,000 ohms on HF (16-150 on 6m)
  • This is the Mk.II version!
  • Needs coaxial cable patch lead
  • DC power lead only is included





Z-11PROII

$349 AUD
In stock!

125W rated ATU with memory

Learn More

  • Continuous 1.8-54MHz range
  • HF power rating; 0.1 to 125W SSB/CW and 30W PSK/digital
  • 6m power rating; 100W peak
  • LED display for SWR and status
  • 8,000 3D memories for instantaneous band changing
  • Tuning time: 0.1-6 seconds for full tune, 0.1 sec. memory tune
  • Selectable user parameters
  • 1.8-54MHz coverage
  • Tunes 6-1,000 ohms on HF,
    16-150 ohms on 6m
  • NOT suitable for use with FT-857/897 radios, because these Yaesu radio models transmit a small amount of V/U RF energy from their HF port and will cause the tuner to mis-tune. Use only the LDG tuners recommended for these radios!
  • This is the Mk.II version!
  • Needs coaxial cable patch lead
  • DC power lead only is included

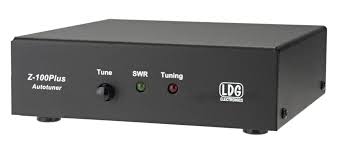

Z100PLUS

$299 AUD
In stock!

125W rated ATU with memory

Learn More

LDG's popular Z-100 economy tuner has metamorphesised into the Z-100Plus. Although very small and simple to use, the Z-100Plus boasts 2000 frequency and tuning parameters. It will operate from any external 7 to 18 Vdc voltage source via its rear panel mounted external DC socket. Note; there is no internally fitted battery tray for installing and using internal batteries. Six external AA batteries may operate the Z100Plus for up to one year under average operating periods! The Z100Plus' current draw whilst tuning is less than 100mA.

The Z-100Plus has an integrated internal frequency counter. The operating frequency is stored, along with tuning parameters, in order to make "memory tunes" a blazingly fast 0.1 seconds! Full tuning cycles take an average of only 6 seconds.
NOT suitable for FT-857/897 radios!

  • Continuous 1.8-54MHz range
  • HF power rating; 0.1 to 125W SSB/CW and 30W PSK/digital
  • 6m power rating; 100W peak
  • Tunes 6 to 800 ohms on HF (16 to 150 on 6m) to 50 ohms
  • 2000 memories sorted by frequency
  • Latching relays for ultra-low power consumption
  • Needs coaxial cable patch lead
  • DC power lead only is included
  • Not suitable for use with FT-857/897 radios because these Yaesu radio models transmit a small amount of V/U RF energy from their HF port and will cause the tuner to mis-tune. Use only the LDG tuners which are recommended for Yaesu
    FT-857/D & FT-897/D radios!

YT-100

$399 AUD
In stock!

Automatic antenna tuner works only with Yaesu FT-857/D, FT-897/D, FT-100/D transceivers

Learn More

LDG makes a dedicated bolt-on tuner for the Yaesu FT-897 (the AT-897). However, that leaves many Yaesu transceivers without a dedicated LDG tuner available.
Of course, most LDG tuners will work fine with Yaesu radios. However, it would be nice to have an LDG tuner interface with several Yaesu radios
and LDG's new YT-100 does that!

The YT-100 is designed to work ONLY with Yaesu FT857, FT897 and FT-100 (including all D versions) transceivers.

The YT-100 will not work with
any other Yaesu transceivers.

An included CAT cable interfaces with these transceivers, making it an integrated tuner powered via the interface cable.
No extra power cables are needed.
Just press the tune button on the tuner and everything happens automatically; the radio's mode is automatically set to carrier mode, the RF output power is reduced and a tuning cycle commences.
Once tuning is completed the radio is automatically returned to its original settings.

  • Continuous 1.8-54MHz range
  • HF peak power rating; 1-100W, 30W PSK/digital modes
  • 6m power rating; 100W peak
  • Latching relays for ultra low power consumption
  • Built-in CAT interface for FT-100(D), 857(D) and 897(D) radios. Powered from these Yaesu radios via the CAT port
  • CAT thru-port for computer control of radio @ 4800 baud
  • Has 2000 memories, which are sorted by frequency
  • Tunes 4 to 800 ohms on HF
    and 16 to 150 ohm on 6m
  • Needs coaxial cable patch lead
  • Includes CAT DIN 8 interface cable of 12" (30cm) in length



AT-897Plus

Now $299 AUD
Plenty in stock!
(Was A$399)

Mounts onto side of FT-897/D
(Compare to Yaesu FC-30)

Learn More

  • Continuous 1.8-54MHz range
  • HF/6m power rating; 0.1-100W peak SSB/CW, 30W PSK/digital
  • 2000 fast memories, by freq.!
  • Latching relays design
  • CAT control at 4800bps with an extra CAT port provided
  • Tuning time: 1-7 seconds, 4 seconds average
  • Impedance tuning; 6-800 ohms
  • Dual function tune control
  • Size; 11.5"d x 3.25"h x 1.5"w, or 288d x 82h x 38w (mm)
  • Weight; approx. 900g
  • Shown above with optional Yaesu FT-897D transceiver, which is NOT included!
  • Will work with FT-857/D, too!
  • Needs coaxial cable patch lead
  • Includes CAT DIN 8 interface cable of 12" (30cm) in length



IT-100

$399 AUD
In stock!

Auto tuner works with most Icom AH3/AH4-compatible transceivers

Learn More

Tunes your antenna in 1 to 8 seconds when you QSY either in the same band or to a different band!

  • Continuous 1.8-54MHz range
  • HF power; 0.1-125W SSB/CW, 30W PSK/digital modes
  • 6m power rating; 100W peak
  • Will auto tune by pressing the AT/Tune button on the front panel of most AH3/AH4 tuner compatible Icom transceivers!
  • Works with Icom IC-706 series, IC-703, IC-718, IC-7000, IC-7100, IC-7200, IC-7300, IC-7410, IC-746, IC-756, IC-7600 and all variants of these transceivers. This is a partial list of compatible Icom radios
  • Switched-L tuning network
  • Needs coaxial cable patch lead
  • Includes IC-7K interface cable (for late model Icom radios) of 12" (30cm) in length



 ***NEW***

YT-1200 ATU

$499 AUD
In stock!

Suits Yaesu FT-450, FT-450D,
FT-450AT, FT-950, FT-991,
FT-991A,  FTDX-1200 and
FTDX-3000/D transceivers!

Learn More

  • Continuous 1.8-54MHz range
  • HF power rating; 1-100W peak, 30W PSK/digital modes
  • 6m power rating; 100W peak
  • Latching relays for ultra-low power consumption
  • Built-in CAT/power interface
    for FT-450, FT-450D,
    FT-450AT, FT-950, FT-991,
    FT-991A, FTDX-1200 and
    FTDX-3000/D transceivers
  • CAT through-port for computer control of radio, to 4800 baud
  • 2,000 memories sorted by freq.
  • Tunes when the YT-1200's TUNE button is pressed!
  • Impedance tuning: 4-1,000 ohms on HF, 16-150 ohms 6m
  • Dimensions; 17cm (7") L x 20cm (7.8") W x 50cm (2") H
  • Weight; 900g
  • Needs coaxial cable patch lead
  • Includes IC-450 CAT/power interface cable of 18" (45cm)
    in length!


KT-100

$399 AUD

Sold out!
Deposit required!

Auto tuner suits many Kenwood 100W output SSB transceivers

Suits TS-50, TS-450, TS480 (not 200W "HX"), TS-570, TS-590, TS-850, TS-870, TS-990, TS-2000...

Learn More

KT-100 derives its DC power from suitable Kenwood transceivers, i.e. ones which accept Kenwood's
discontinued AT-300. The KT-100 automatically tunes when a listed Kenwood transceiver's "tune" button is pressed. See partial list of compatible transceivers below...

  • Continuous 1.8-54MHz range
  • HF power rating: 0.1-125W, 30W PSK/digital modes
  • 6m power rating: 100W peak
  • 2,000 memories for instantaneous band changing
  • Tunes when listed transceiver's TUNE button is pressed!
  • Partial radio list; TS-50S, TS-450S, TS480SAT (not 200W "HX"), TS-570S, TS-590S, TS-690S, TS-850S, TS-870S, TS-990S, TS-2000 and TS-2000X (and variants of these models)
  • Tuning time: 0.1-6 seconds full tune, 0.1 seconds memory tune
  • Impedance tuning: 4-800 ohms on HF, 16-150 ohms on 6m
  • Needs coaxial cable patch lead
  • Includes IC-KT interface cable of 12" (30cm) in length







***NEW***

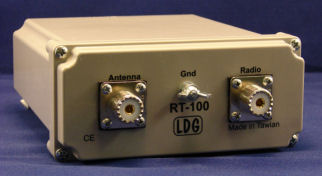

RT/RC-100

Now $449 AUD
Plenty in stock!

Remote RT/RC-100 automatic
antenna tuner with DC/RF unit

Includes RC-100 DC/RF module!

Learn More

LDG's new RT-100 is a 100W rated coax-type remote antenna tuner. It should be located at, or near, the feedpoint of a coax-fed antenna. Doing so will significantly reduce  overall feedline loss if there is a high swr at the antenna's feedpoint.
The RT-100 will provide a very low swr at the antenna's feedpoint.

The RT-100 can be DC-powered via the centre conductor of coaxial cable. Such DC-powering requires the included LDG RC-100 DC/RF unit. The RC-100 can provide DC power and auto/semi-auto operation, plus lock and forceful manual tune, via the centre conductor of coaxial cable. Includes U-bolt for mounting the RT-100 onto a pipe.

  • Continuous 1.8-54MHz range with built-in frequency sensor
  • RF power; 0.1 to 125W SSB/CW and 30W PSK/digital modes
  • Tunes 4 to 800 ohms on HF (16 to 150 ohms, 6m) to 50 ohms
  • Tuning time; 0.1~6 secs. full tune, 0.1 sec. memory tune
  • 2000 memories sorted by frequency
  • Size; 16.5L x 15W x 6.3H cm
  • Needs coaxial cable patch lead
  • DC power lead only is included




LDG ATU INTERFACE CABLES

Most cables are now in stock!
Updated info re Yaesu...
  • AL-PAC; Alinco to LDG cable,
    3 ft. (90cm)...A$49
    Works with DX-70TH, DX-77, etc. Will NOT work between
    DX-SR8 or DX-SR9 and generic LDG tuners (e.g. Z100Plus)!
  • IC-PAC; Icom to LDG generic auto antenna tuners cable; 12" (30cm) long...A$45. In stock!
  • IC-PAC-6; Icom to LDG generic auto antenna tuners cable, 6 ft. (1.8m)...A$49. In stock!
  • Y-ACC; Yaesu FT-857/FT-897, FT-100/D, FT-991/A and FT-891 radios to LDG generic auto antenna tuners control cable,
    12" (30cm) long...A$45
  • YT-PAC-1200 Yaesu FTDX-1200 to generic LDG tuners
    (but not Z-11PROII) cable 3 ft. (90cm) long...A$49. Works with FT-450, FT-950, FTDX-1200.
    In stock!
  • YT-PAC-3000 Yaesu FTDX-3000D to generic LDG tuners (but not Z-11PROII), cable 3 ft. (90cm) long...A$49. Works with FTDX-3000. In stock!
  • IC-2000; FT-2000 to generic LDG tuners cable, 12" (30cm) long...A$45. This cable does not supply DC to the tuner!
  • USB-100 control cable,
    suits AT-1000PROII and
    AT-600PROII tuners...A$99
  • DC pwr. cable 6' (1.8m)...A$25
  • CAT-DIN 8; Yaesu type CAT port LDG cable for Z-817, Z-817H, AT-897 and YT-100 auto tuners, 12" (30cm) long...A$45
  • IC-7K; Icom to IT-100 and AT-7000 auto tuners cable, 12" (30cm) long...A$45
  • IC-450; YT-450 cable...A$49
  • IC-KT; KT-100 cable...A$49
  • IC-847; YT-847 cable...A$49
  • IC-AL; AL-100 cable...A$45
  • RAM cable, for FT & FTL meters...A$45
  • HPM cable, for M600/M1000 meters...$45

Z-817

$299 AUD
In stock!

Z-817 20W rated auto tuner

Learn More

The Z-817 is an excellent autotuner for QRP radios - especially the Yaesu FT-817 and FT-817ND transceivers!

Pressing the tune button on the
Z-817 will cause the FT-817/ND
to switch to PKT mode and
transmit a carrier, thereby causing the Z-817 to auto-tune.
When tuning finishes the FT-817ND will return to receive mode.

  • Continuous 1.8-54MHz range
  • RF Power; 0.1 to 20 watts on SSB/CW, 5W PSK/digital
  • Tunes 6 to 600 ohms on HF
    (i.e. up to about 10:1 swr) and
    16~150 ohms on 6m (3:1 swr)
  • 2000 memories when used with FT-817 interface (200 memories for other radios)
  • Built-in CAT port interface.
    CAT through port for computer connection @ 38400 baud
  • Latching relays utilised - for ultra low power consumption
  • Battery operation (4 x 1.5V Alkaline AA batteries not inc.). Power consumption is zero when not tuning! A set of batteries can last a year
  • Dimensions 13Lx12Wx4.3H cm
  • Needs coaxial cable patch lead
  • CAT DIN 8 interface cable of 12" (30cm) length is included




Notes regarding MFJ brand
automatic antenna tuners...

Most MFJ automatic and manual antenna tuners cover 160m~10m and almost all of them have a much wider impedance tuning range than most transceiver manufacturers' automatic
antenna tuners that are designed for use with coax fed antennas!

MFJ has control/interface leads which allow certain models of
MFJ auto antenna tuners to be operated directly from the TUNE button on certain Yaesu SSB transceiver models.
E.g. MFJ-929, MFJ-939Y, MFJ-991B, MFJ-993B and MFJ-998 auto antenna tuners can be operated directly by the TUNE button on FT-857/D and FT-897/D transceivers when connected with an appropriate MFJ control/interface cable. An example is the MFJ-5114Y cable.





LDG AUTOMATIC ANTENNA
TUNER NOTES...
  • LDG "generic" type automatic antenna tuners are those tuners which will work with almost any amateur radio HF
    or HF/6m transceiver. LDG generic auto tuner models are;
    AT-1000PROII, AT-100PROII, AT-200PROII, AT-600PRO, Z100Plus and Z11PROII
  • LDG "model-specific" automatic antenna tuners are those tuners intended for specific brands/models of transceivers
  • NO LDG automatic antenna tuner (local or remote type) will auto-tune by pressing the TUNE button on any YAESU transceiver's front panel.
  • Many of LDG's PRO series of tuners will work with the FT-991/A radios as a stand-alone tuner. Note that the tune button on the radio will not control the LDG tuner's tuning  function when using any LDG tuner connected to your radio.
  • However, if you connect a LDG PRO series tuner to your radio and leave the PRO series tuner in the AUTO-TUNE mode it will auto tune when it detects sufficient RF power! This is a convenient and basic function of LDG's PRO series tuners
  • Alternatively, simply use the optional/appropriate YAESU external automatic antenna tuner model (e.g. FC-30, FC-40, etc.) if you wish to auto tune via your Yaesu radio's front panel TUNE button! Note that Yaesu's FC-30 cannot be used with FT-991/A radios!
  • Another alternative to consider is MFJ's auto tuners, which we also stock, sell and support



Y-ACC cable NOTES

LDG's Y-ACC 12" (30cm) cable interfaces between certain Yaesu radios and LDG generic tuners. It does not supply DC to the tuner.

The Y-ACC cable suits Yaesu FT-857, FT-897, FT-100D, FT-991, FT-991A and FT-891 radios.

Pressing the TUNE button on the tuner changes the mode of the Yaesu radio to CW (this mode change doesn't appear on some Yaesu radios' display) and tuning commences. The Yaesu radio is automatically returned to the previous mode setting when the tuning process is completed. The RF output power is lowered whilst tuning. There is no need to change the RF power output levels before or after tuning.

For FT-991A set menu item 143 (tuner select) to L/AMP (linear amp.) For FT-891 set menu item 16-15 (tuner select) to L/AMP. For both radios use the ALC/REM (remote) jack/socket with the red end connected to the radio.


GENERAL NOTES

Insurance cover for goods in transit is available from us for only $2 per $100 value of goods. Please advise us if you require this option when ordering.

Please consider insurance because we are not responsible for loss of parcels or damage sustained by parcels - the carrier is responsible! We do pack well!
No compensation will be paid by us if goods are uninsured.

Please do NOT write <fragile> on anything you send to us as doing so greatly increases the risk of damage. Please try to "double-box" all products sent to us.

Warranties are not transferable. We don't offer replacement warranties. Customer-caused or environment-caused damage is not covered by warranty, of course.

A sales receipt copy must accompany each warranty claim.
Include your name, address, email and phone number.


LDG meters



FT-Meter

Suits Yaesu FT-857/897 series

$119 AUD
Plenty in stock!
  • Plus into radio's meter socket, underside of radio's front panel
  • Has large 2.5" (63mm) meter face with calibrated scales
  • Indicates signal strength and discriminator reading on receive
  • Indicates RF power output, SWR, modulation, ALC action and supply voltage on transmit
  • Select each function from radio
  • Requires 12V for meter light
  • DC power lead and RAM included
  • Shown above with optional Yaesu FT-897D transceiver, which is NOT included in this offer!


FTL-Meter (FT-Large)

Suits Yaesu FT-857/897 series

$169 AUD
Plenty in stock!
  • Plus into radio's meter socket, underside of radio's front panel
  • Has large 4.5" (114mm) meter face with calibrated scales
  • Indicates signal strength and discriminator reading on receive
  • Indicates RF power output, SWR, modulation, ALC action and supply voltage on transmit
  • Select each function from radio
  • Requires 12V for meter light
  • DC power lead and RAM included





M-7700 (Large)
Suits IC-7700

$169 AUD
In stock!

The LDG M-7700 provides a quality 4.5" (114mm) meter for IC-7700.

  • Seven individual scales:
    S-Meter, Id, Po, SWR, Comp, Vd, ALC
  • Externally powered "cool blue" backlighting
  • Requires 12V for meter light
  • DC power lead and RAM included

Palstar high power manual antenna tuners

One year warranty

Updated 17-07-18

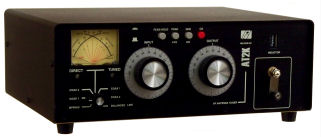

New model AT-2K 2kW antenna tuner!

Now tunes from 160m~6m!

$1199 AUD
Place your order.
Deposit required.

Features cross-needle 300W/3kW peak and peak-hold wattmeter
with SWR measurement and a 6-position antenna switch.
Matches dipoles, inverted Vs, verticals, beams, long wires, etc.
Rated to accept 2kW pep SSB.

Newly-designed, smaller roller inductor allows AT2K to tune 6m!
Newly designed capacitors feature lower minimum capacitance
(15pF) for improved high frequency bands performance, whilst
maximum capacitance has been increased to 400pF
for better low frequency bands performance!
Matches from 15 ohms to 1,500 ohms!

 Will match balanced line fed antennas with an optional 4:1 balun.

Price based on inclusion in our next USA seafreight shipment.
Airfreighting/airmailing from USA would be at extra cost.

Dimensions; 36.8w x 12.7h x 34.3d cm. Weight; 6.4kg.

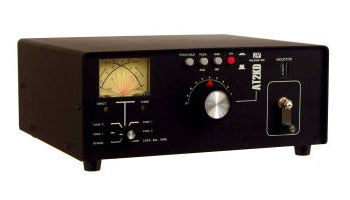

AT-2KD 2kW differential-type antenna tuner

Tunes from 160m~6m (if resistive load)!


  $1149 AUD
Place your order.
Deposit required.

Features cross-needle 300W/3kW peak and peak-hold wattmeter
with SWR measurement and a 6-position antenna switch.
Matches dipoles, inverted Vs, verticals, beams, long wires, etc.
Matches from 15 ohms to 1,500 ohms! Rated to 2kW pep SSB.

Will match balanced line fed antennas with an optional 4:1 balun.

Price based on inclusion in our next USA seafreight shipment.
Airfreighting/airmailing from USA would be at extra cost.

Dimensions; 33.5w x 14.6h x 30.5d cm. Weight; 5.5kg.




Andrews Communications Systems
Shop 8, 41-51 Bathurst St, Greystanes, NSW 2145
Telephone: (02) 9636 9060, (02) 9688 4301, (02) 9896 8972
